Driver/front passenger sidebag, location/task/design/function - GF91.60-P-4004R: Notes
MODEL 230

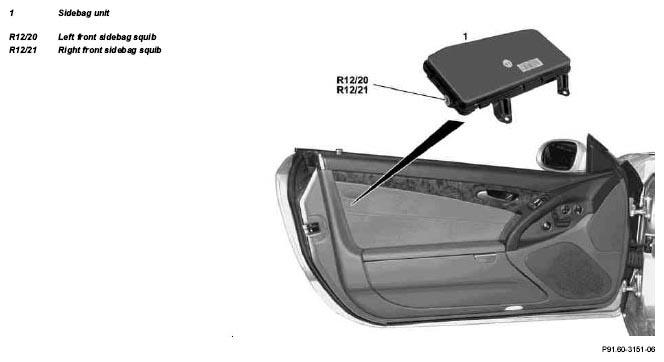

| Driver/front passenger sidebag, location | The sidebag unit (1) with the left front sidebag squib (R12/20) or the right front sidebag squib (R12/21) is located behind the door lining on the driver and front passenger door respectively. | ||
| Driver/front passenger sidebag, task | The sidebag integrated into the sidebag unit (1) protects the upper thorax and head of the driver or the front passenger against injury in the event of a side impact in the area of the door and the B-pillar. | ||
| Driver/front passenger sidebag, design | GF91.60-P-4004-03R | ||
| Driver's/front passenger's sidebag - function | GF91.60-P-4004-02R |
