Pressure sensor, location/task/design/function - GF07.04-P-5014HA: Notes
ENGINE 112.960 in MODEL 170.466
ENGINE 112.961 in MODEL 203.065 /265

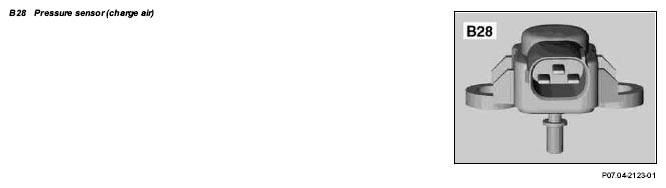

| Pressure sensor, location | GF07.04-P-5014-01HA | ||
| Pressure sensor, task | Detecting the absolute pressure (boost pressure) in the intake manifold. The ME control unit needs the boost pressure and the charge air temperature for the calculation of the supplied air mass. The required quantity of fuel for the particular operating conditions is calculated on the basis of a performance map stored in the ME control unit. | ||
| Pressure sensor, design | GF07.04-P-5014-03HA | ||
| Pressure sensor, function | The intake manifold pressure distorts a diaphragm which has an effect on the piezo resistor. This alters the resistance value of the piezo resistor and influences the output voltage, which is used as information regarding the boost pressure for the ME control unit. The pressure gauge range is between 0.2 up to 2.5 bar. |
