A/C Push-Button Control Module Connector End View (N19)

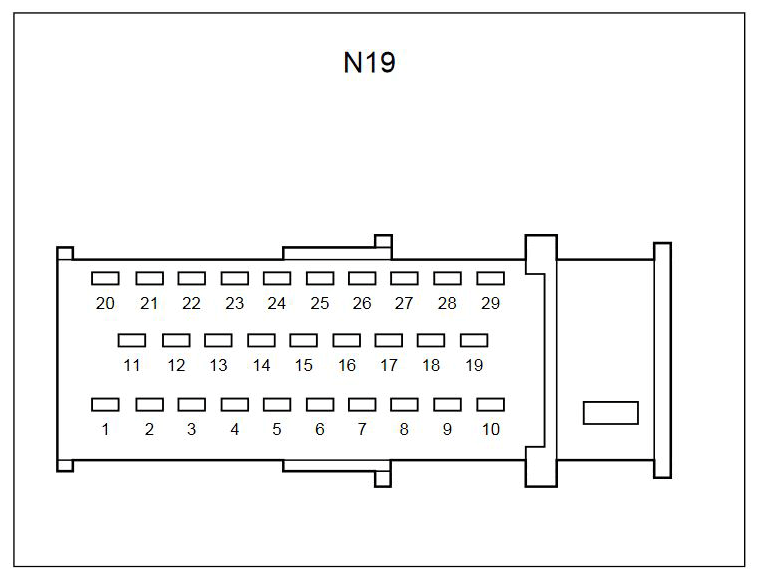

Fig 1: A/C Push-button Control Module Connector End View (N19)
G11064705Courtesy of MERCEDES-BENZ USA
