Front HS Control Module Connector End View (N25/5)

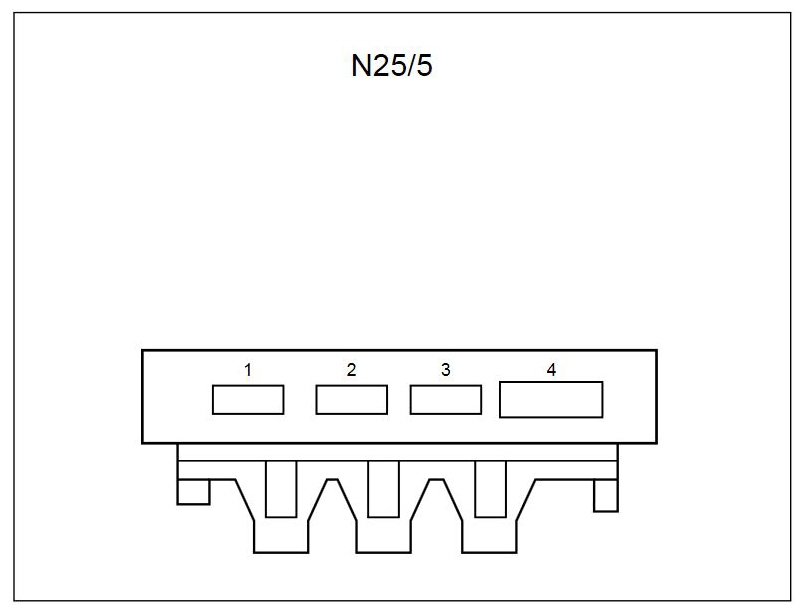

Fig 1: Front HS Control Module Connector End View (N25/5)
G11064708Courtesy of MERCEDES-BENZ USA
