Voice control system (VCS) function diagram - GF82.70-P-0002-02M

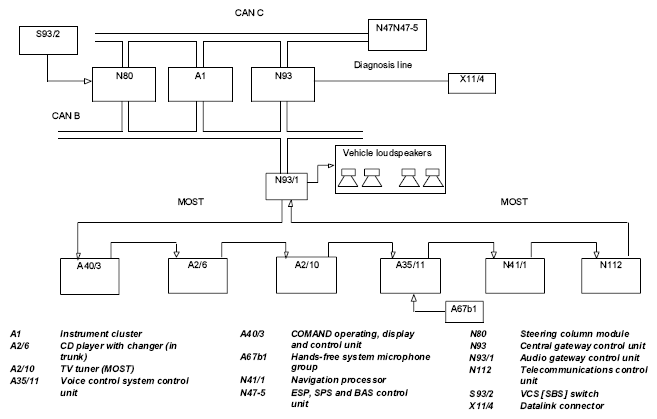

Fig 1: Voice Control System Function Diagram
