ME-SFI lambda control, function engine 113 - GF07.61-P-4022SM
ENGINE 113.986
ENGINE 113.987
ENGINE 113.988
ENGINE 113.989
The mixture composition is controlled within the narrowest possible limits around λ = 1 in order to achieve a high conversion of the exhaust gases (exhaust gas conversion) in the catalytic converter.

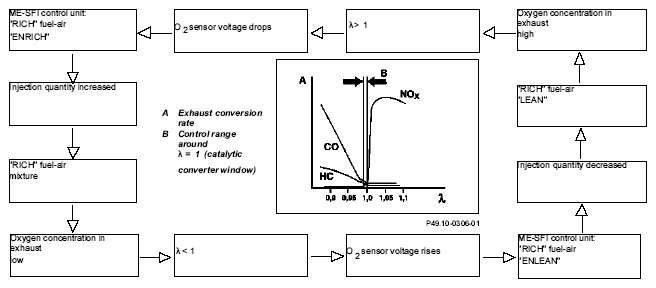

The O2 sensors (G3/3, G3/4) react to the oxygen share in the exhaust and transmit a corresponding voltage signal to the ME control unit (N3/10). This alters the mixture composition by controlling the injection quantity so that λ=1 is obtained. This process is repeated constantly (control loop).
The lambda closed-loop control is operational in the following operating conditions (closed-loop control):
- Coolant temperature < 52°C
- O2 sensors have reached operating temperature
- Engine in idle/partial load range
- Deceleration fuel shutoff not active.
The ME control unit alters the mixture composition with a time delay in order to prevent any risk of jerking.
Example:
Assuming a leaner fuel-air mixture is produced. This has the following consequence, that the O2 sensor voltage drops and the ME control unit compensates for this lean drift through a matching enrichment.
This makes it possible to achieve a fuel-air mixture of approximately λ = 1.

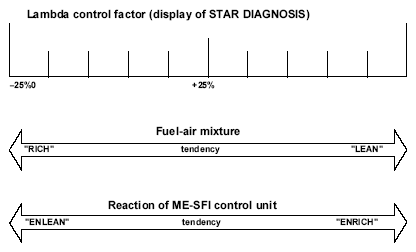

The reading of the lambda control factor with the STAR DIAGNOSIS moves towards +25 % The more the lambda control factor moves in the direction +25 %, the leaner is the fuel-air mixture and the greater is the enrichment of the mixture on the part of the ME control unit.

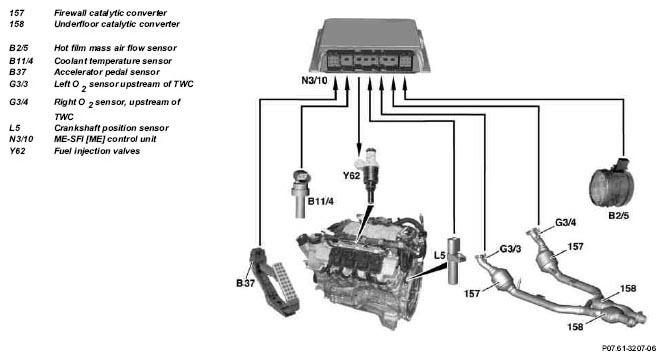

| Fuel injection valves, component description | Y62 | GF07.03-P-6010SM |
| Crankshaft position sensor component description | L5 | GF07.04-P-6010SM |
| Coolant temperature sensor component description | B11/4 | GF07.04-P-6040SM |
| O2 sensor component description | G3/3, G3/4, G3/5, G3/6 | GF07.04-P-6100SM |
| Hot film MAF sensor component description | B2/5 | GF07.07-P-6000SM |
| ME-SFI [ME] control unit component description | N3/10 | GF07.61-P-6000SM |
| Accelerator pedal sensor, component description | B37 | GF30.20-P-2010SM |
