Overhead control panel control unit, location/task/design/ function - GF82.20-P-4101PP
MODEL 203 with CODE (414a) Glass electric tilting/sliding roof

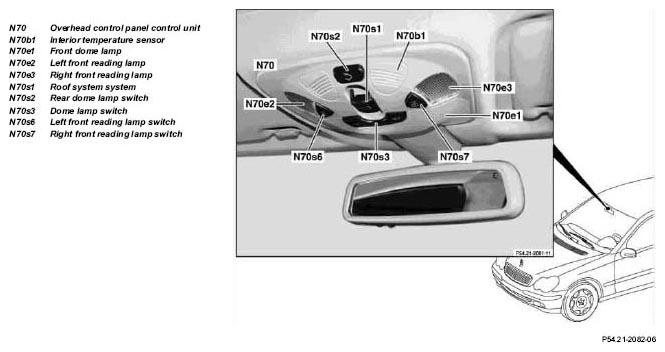

Shown on model 203
| Overhead control panel control unit, location | The overhead control panel control unit (N70) is located in the front roof area in the center of the passenger compartment. | ||
| Overhead control panel control unit, purpose | GF82.20-P-4101-02PP | ||
| Design of overhead control panel control unit | GF82.20-P-4101-03PP | ||
| Overhead control panel control unit, function | The overhead control panel control unit (N70) operates with its own microprocessor, which reads in signals, exchanges data with the interior CAN and actuates appropriate semiconductor switches. |
