Front SAM Control Module With Fuse And Relay Module Connector End View (N10/1)

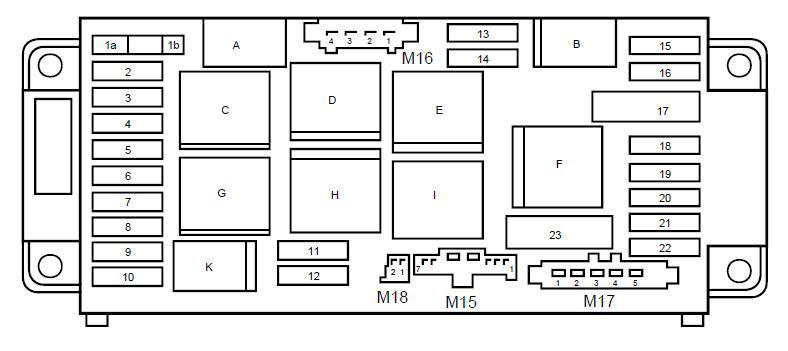

Fig 1: Front SAM Control Module With Fuse And Relay Module Connector End View (N10/1) (1 of 2)
G00581293Courtesy of MERCEDES-BENZ USA

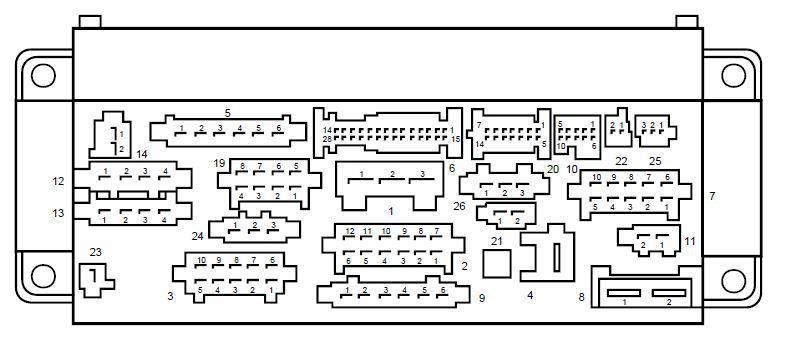

Fig 2: Front SAM Control Module With Fuse And Relay Module Connector End View (N10/1) (2 of 2)
G00581294Courtesy of MERCEDES-BENZ USA
