Multifunction sensor location/task/function - GF83.10-P-2148P

MODEL 203 up to 31.5.01 with CODE (581a) Air conditioning (Automatic)

MODEL 203 as of 1.6.01 with CODE (581b) Convenience automatic air conditioning

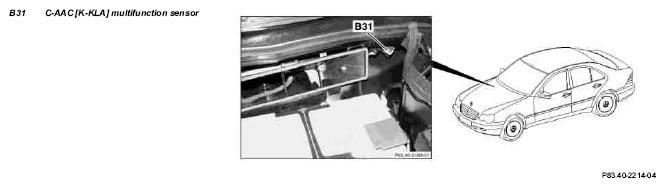

Fig 1: Locating C-AAC (K-KLA) Multifunction Sensor

Multifunction sensor, location	The C-AAC [K-KLA] multifunction sensor (B31) is located in the fresh air inlet at the rear right of the engine compartment.
AAC multifunction sensor, task	The C-AAC [K-KLA] multifunction sensor (B31) serves to record the following values: Ambient temperature air humidity pollutant concentrations of outside air
Multifunction sensor function		GF83.10-P-2135-02P
