Steering column adjustment, function - GF46.15-P-2000PP
MODELS 203.0 /2 /7 as of 1.7.02 with CODE (275c) Electrically adjustable driver seat, steering column and exterior mirrors with memory with CODE (242b) Electrically adjustable front passenger seat with memory
Function requirements
- Voltage not too high or too low
- Circuit 15R or circuit 15 On,
- Driver's door open.

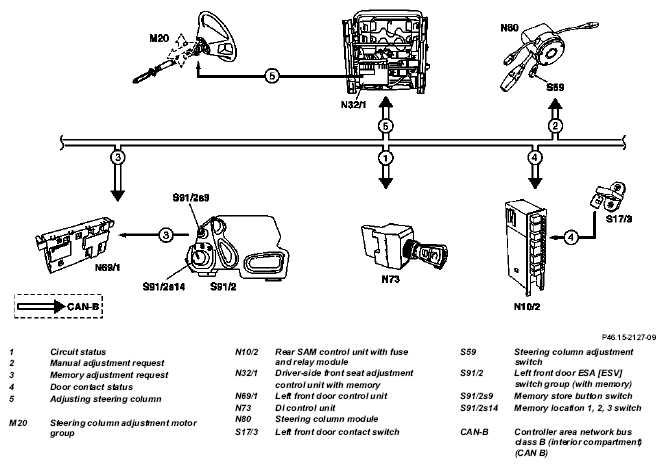

Manual adjustment function
The steering column can be adjusted manually by means of the steering column adjustment switch (S59).
The adjustment requirements are transmitted from the steering column module (N80) via CAN-B (CAN-B).
The driver-side front seat adjustment control unit with memory (N32/1) actuates the steering column adjustment motor group (M20) accordingly.
Memory adjustment function
Via the memory switches 1, 2, 3 (S91/2s14) the steering column can be adjusted to a position previously stored in the driver-side front seat adjustment control unit with memory (N32/1).
The left front door control unit (N69/1) reads in the left front door seat adjustment switch group (memory) (S91/2) and places the signals for adjustment request on the CAN-B (CAN-B).
The driver-side front seat adjustment control unit with memory (N32/1) actuates the steering column adjustment motor group (M20) accordingly.
In parallel with this the driver seat and outside mirrors are adjusted corresponding to their stored position.
| Steering column adjustment lock-up protection function | GF46.15-P-3003PP | ||
| Function of steering column adjustment motor position measurement | GF46.15-P-3000PP | ||
| Steering column adjustment motor group, location/task | GF46.15-P-4103PP | ||
| Steering column adjustment switch, location/ task | GF46.15-P-5001PP | ||
| Left front seat adjustment control unit with memory location/task | GF91.29-P-2106PP | ||
| Front driver-side door control unit, location/task/ design/function | GF72.29-P-4105PP | ||
| Electronic ignition switch control unit, location/ task/design/function | GF80.57-P-4102PP | ||
| Front seat adjustment switch group, location/ design | GF91.29-P-2112PP |
