Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Front Pre-Fuse Box (F32) At right rear of engine compartment. See Figure.
Front SAM Control Unit W/Fuse & Relay Module (N10/1) Left rear of engine compartment. See Figure.

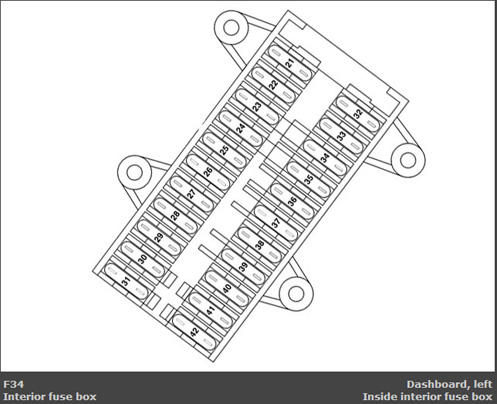

Interior Fuse Box Behind left end of dash. See Figure.
Rear SAM Control Unit W/Fuse & Relay Module (N10/2) Left side of trunk/cargo area. See Figure.
