Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

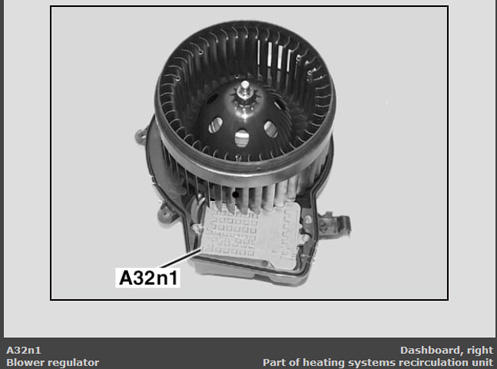

| Blower Regulator | On bottom of blower motor. See Figure. |

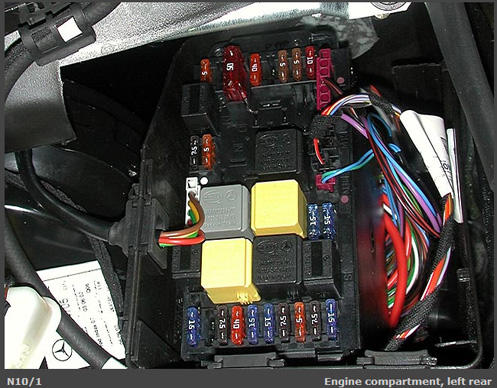

| Front SAM Control Module With Fuse & Relay Module | At left rear of engine compartment. See Figure. |
| ME-SFI Control Module | Top center of engine. |

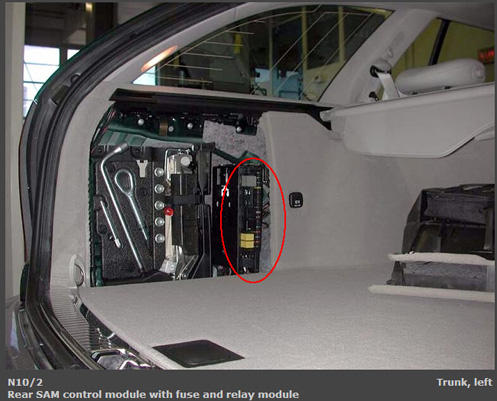

| Rear SAM Control Module With Fuse & Relay Module | At left side of trunk. See Figure. |

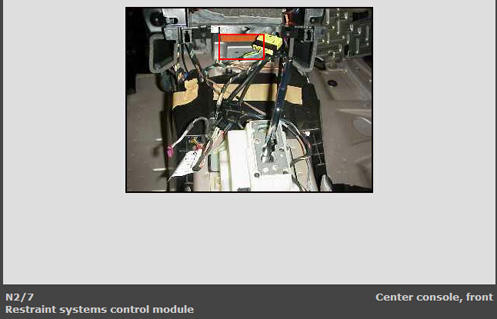

| Restraint System Control Module | Under front of center console. See Figure. |

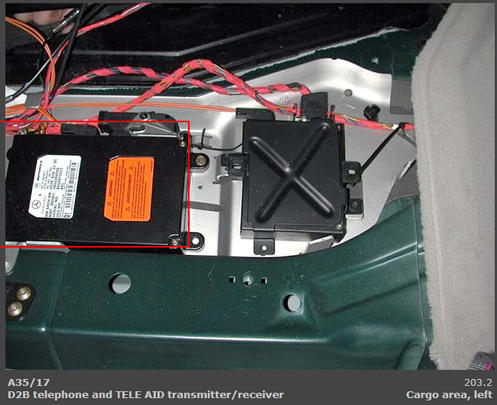

| Tele Aid (Emergency Call System) & D2B Telephone Transmitter/Receiver Control Module | Left side of cargo area. See Figure. |

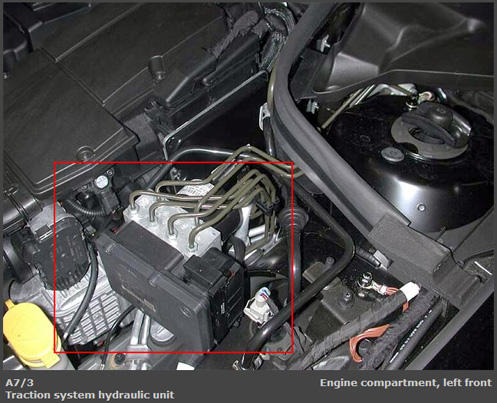

| Traction System Hydraulic Unit | Left side of engine compartment. See Figure. |

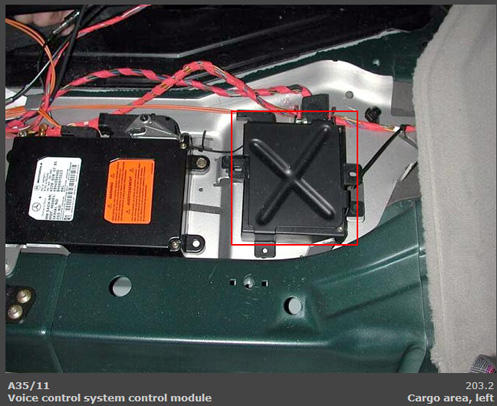

| Voice Control System Control Module | Left side of cargo area. See Figure. |

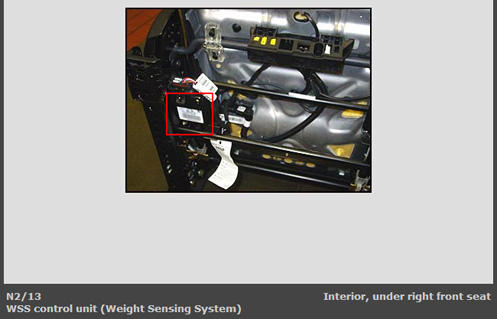

| WSS Control Unit (Weight Sensing System) | Under right front seat. See Figure. |

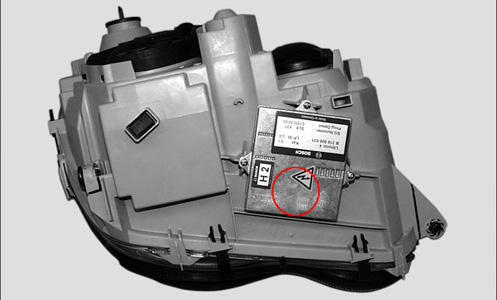

| Xenon Headlight Control Module (Left/Right) | Behind respective headlight. See Figure. |

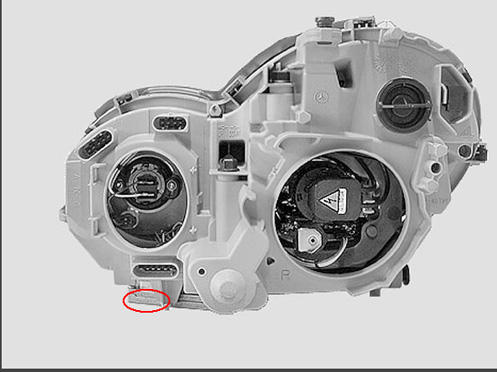

| Xenon Headlight Ignition Module (Left/Right) | Behind respective headlight. See Figure. |
