Full-screen mode of cockpit central display, function - GF54.30-P-2230SX
MODEL 221.0 /1, 216.3 up to Model Year 8
Full-screen mode in COMAND display (A40/8)
In full-screen mode, the entire screen of the COMAND display without menus is used to display an application.
Full-screen mode can be selected for the following applications:
- Video picture of "TV" and "DVD-Video" applications
- Map display for "navigation" application
In full-screen mode, the following screen sections are hidden:
- Status line
- Main menu row
- Submenu row
- Air conditioning functions row
The video picture or navigation map which have previously been shown in the main menu selection range now fill the complete screen.

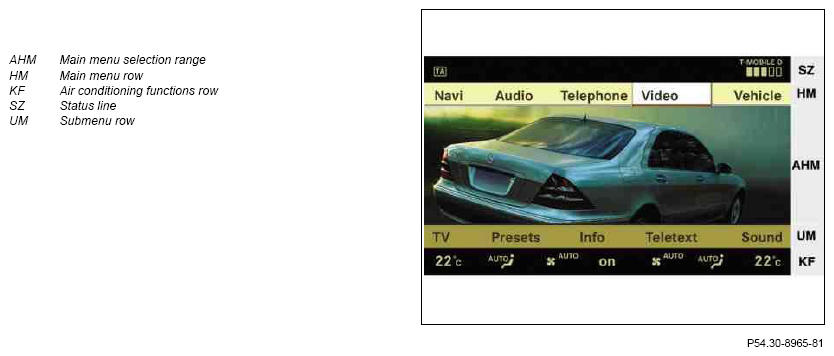

Video image in "normal screen mode" with screen divided into 5 areas, shown on model 221 up to 31.8.06
Activation of full-screen mode
If the cursor is located in the main menu selection range the "full screen" option can be selected. The effect of this is that the menu lines status bar, main menu line, submenu line, climate functions line are removed and the video picture fills the complete screen.

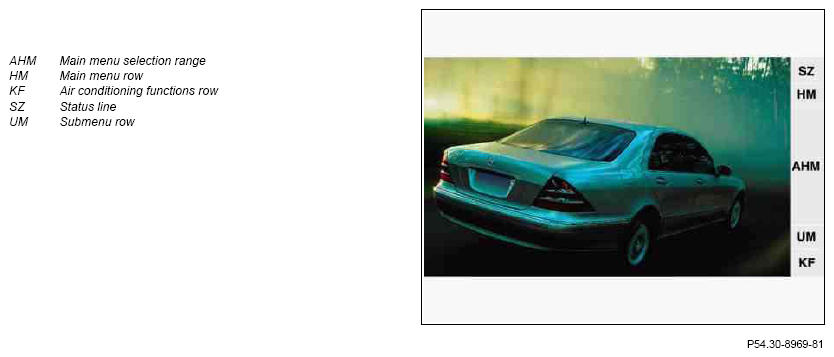

Video image in "full-screen mode" without screen division, shown on model 221 up to 31.8.06
Displaying info menu in full-screen mode
The information menu is blended in the full screen display, while the turn/push control (A40/9s11) of the front central operating unit (A40/9) is turned or pressed in one direction (not vertically downwards).

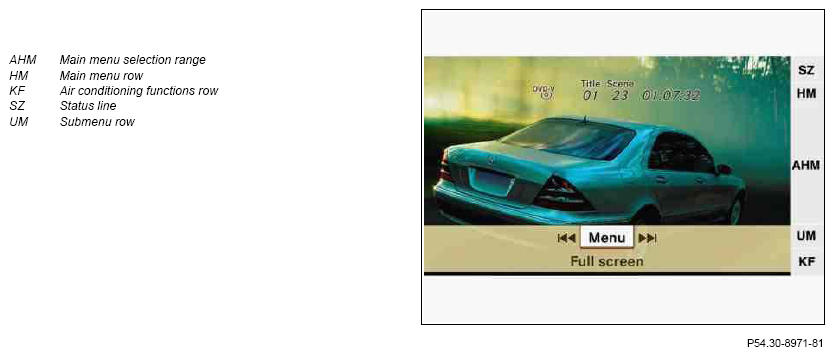

Video image in "full-screen mode" with activated info menu, shown on model 221 up to 31.8.06
Deactivating full-screen mode
Full-screen mode is deactivated by pressing the rotary push-button on the front central operating unit down vertically. The menu lines status bar, main menu line, climate functions line are faded in immediately again and the video picture is still only shown in the main menu selection range.
