Systems displayed in cockpit central display, function - GF54.30-P-2240SX
MODEL 221.0 /1, 216.3 up to Model Year 8

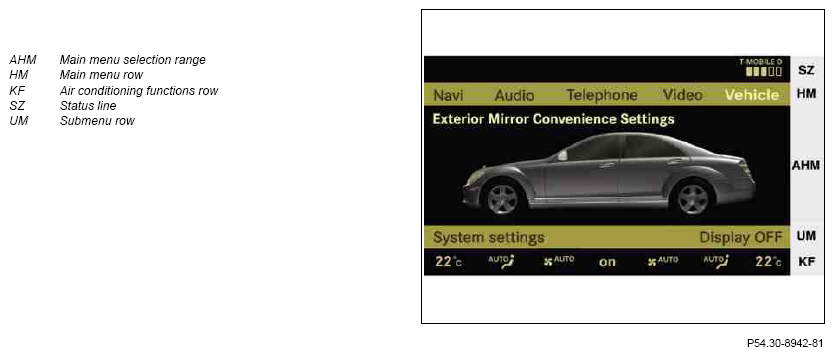

Layout of COMAND display (A40/8), shown on model 221 up to 31.8.06
Menu items in the main menu line
The following systems displayed in the main menu line can be selected in the COMAND display:
- "Navi"
Menu item for navigation settings
- "Audio"
Menu item for audio component settings (radio, audio CD/DVD, MP3)
- "Tel"
Menu item for communication component settings (telephone, SMS, address book)
- "Video"
Menu item for video component settings (TV, video DVD)
- "Vehicle"
Menu item for configuring vehicle components which can be operated in COMAND display
Menu items which are not available to the user are displayed with a gray background and cannot be selected.
Climate control
The climate functions line is faded in and switched active depending on the circuit status and system status.
| Navigation menu item, function | With code (527) COMAND APS with Single DVD disk drive (with navigation) with CODE (494) USA version | GF54.30-P-3120SX |
| with CODE (498) Japanese version | GF54.30-P-3120SXJ | |
| Audio menu item, function | with CODE (494) USA version except code (498) Japanese version With code (527) COMAND APS with Single DVD disk drive (with navigation) | GF54.30-P-3130SXA |
| with CODE (498) Japanese version | GF54.30-P-3130SXJ | |
| Video menu item, function | Except code (863) Digital/analog TV tuner with code (527) COMAND APS with single DVD drive (with navigation), except code (863) Digital/analog TV tuner | GF54.30-P-3140SX |
| With code (863) Digital/analog TV tuner with code (527) COMAND APS with single DVD drive (with navigation), with code (863) Digital/analog TV tuner | GF54.30-P-3140SXA | |
| with CODE (498) Japanese version | GF54.30-P-3140SXJ | |
| Communication and telephone menu item, function | with code (388) Universal Portable CTEL Interface System with code (386) Preinstallation for portable CTEL UPCI [UHI] system with CODE (494) USA version With code (387) preinstallation for portable CTEL UPCI system, USA/Canada With code (389) Mobile phone preinstallation with universal interface, USA/Canada | GF54.30-P-3150SX |
| with CODE (498) Japanese version | GF54.30-P-3150SXJ | |
| Vehicle menu item, function | except code (498) Japanese version | GF54.30-P-3160SX |
| with CODE (498) Japanese version | GF54.30-P-3160SXJ | |
| Operation of climate control, function | GF54.30-P-3170SX |
