Driver-side SAM control unit with fuse and relay module, component description - GF54.21-P-6010SX
MODEL 221.0 /1, 216.3 up to Model Year 8
Shown on model 221.0
Location

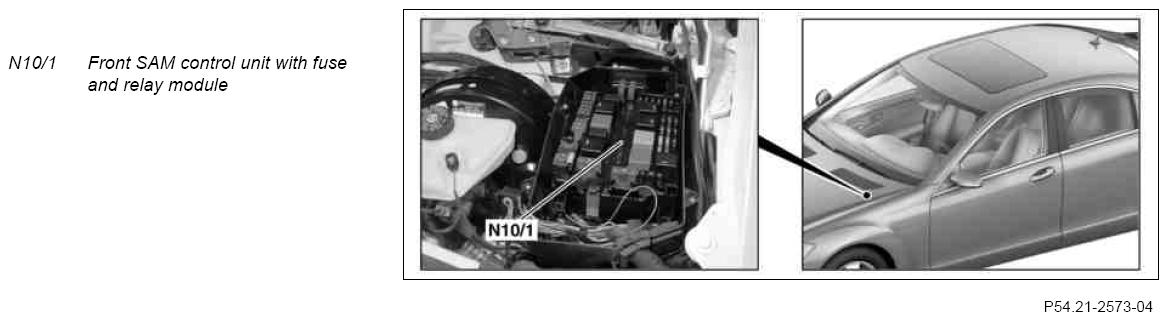

The front SAM control unit is located in the driver-side control unit box.
Task
The front SAM control unit is connected to the interior CAN to exchange data.
Limit switches supply systems and control units with voltage to match the function sequence. Requests are notified to the front SAM control unit over the interior CAN or by reading in switches and sensors.
The individual components are protected by the fuses contained in the fuse and relay block.
Control of following systems
- Wiper system (WSA)
- Front vehicle illumination
- Steering column adjustment
- Fanfare horns
- Wiper rest heater
- Heating the windshield washer system
(with code (875) heated windshield washer system)
- Headlamp cleaning system, HCS [SRA]
(for model 216.3 series, for model 221.0/2 with code (600) Headlamp cleaning system)
Reading in and displaying following signal
- Circuit 58d (switch and controls illumination)
Reading in of switches and sensors
- Outside temperature indicator temperature sensor (B14)
- Hall sensor of steering column in/out motor (M20/1)
- Hall sensor of steering column up/down motor (M20/2)
- Right front brake pad contact sensor (S10/2)
- Brake fluid indicator switch (S11)
- Coolant level indicator switch (S41)
- Windshield washer system fluid level indicator switch (S42)
Switching the following relays
- Terminal 15 relay (N10/1kD)
- Terminal 87 relay, chassis (N10/1kE)
- Fanfare horn relay (N10/1kF)
- Terminal 15R relay (N10/1kG)
- Wiper park heater relay (N10/1kK)
Switching consumers via semiconductor switches
- Left front lamp unit (E1)
- Left high beam (E1e1)
- Left low beam (E1e2)
- Left standing and parking lamp (E1e3)
- Left turn signal lamp (E1e5)
- Left infrared lamp (E1e11)
(with code (610) Night View Assist)
- Left high beam solenoid (E1l1)
(with code (615) Bi-xenon headlamp unit with integrated curve illumination)
- Right front lamp unit (E2)
- Right high beam (E2e1)
- Right low beam (E2e2)
- Right standing and parking lamp (E2e3)
- Right turn signal lamp (E2e5)
- Right infrared lamp (E2e11)
(with code (610) Night View Assist)
- Right high beam solenoid (E2l1)
(with code (615) Bi-xenon headlamp unit with integrated curve illumination)
- Left front fog lamp (E5/1)
- Right fog lamp (E5/2)
- Left front side-marker lamp
(E6/1) (with
- Right front side-marker lamp
- Stowage compartment lighting (E13/3)
- Control unit box fan motor (M4/8) (with engine 275.9)
- Windshield washer fluid pump (M5/1)
- HCS [SRA] pump (M5/2) (with model 216.3 series, with model 221.0/2 with code (600) Headlamp cleaning system)
- Master wiper motor (M6/6)
- Slave wiper motor (M6/7)
- Coolant circulation pump (M13)
- Steering column in/out motor (M20/1)
- Steering column up/down motor (M20/2)
- Washer nozzle heating (R2/1)
- Washer nozzle hose heater R2/11
(with code (875) heated windshield washer system)
- Front cigar lighter with ashtray illumination (R3)
- AC water valve (Y19/2)
