Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

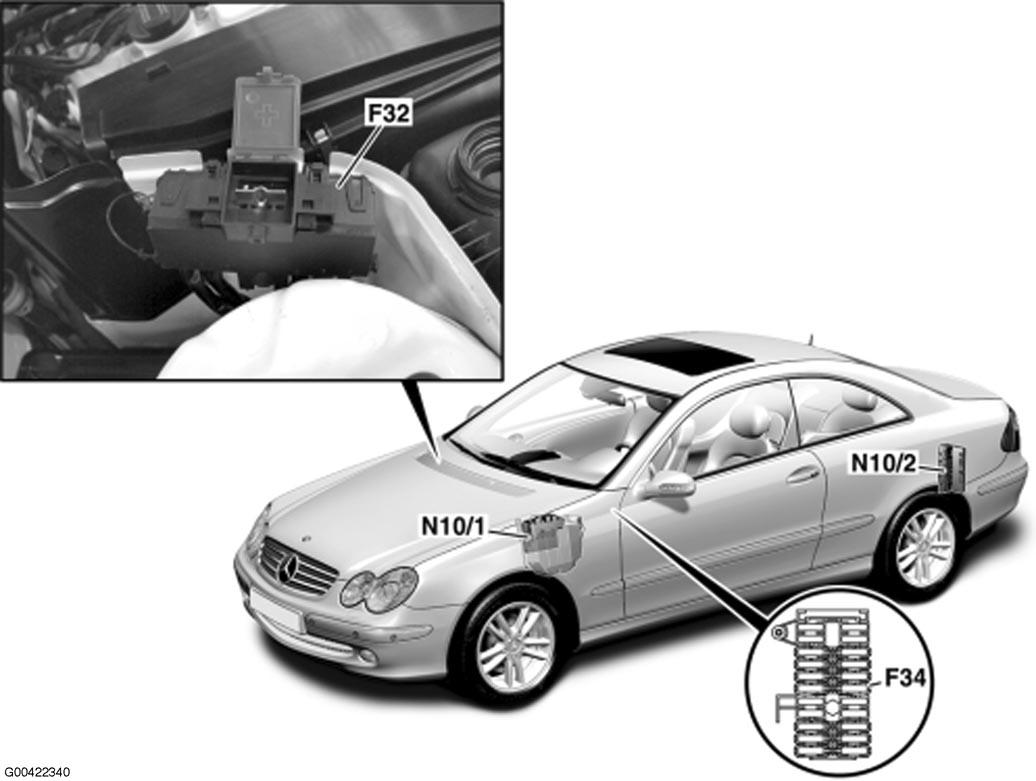

| Front Prefuse Box (F32) | Right rear of engine compartment. See Figure. |
| Front SAM Control Module W/Fuse & Relay Module (N10/1) | Left rear of engine compartment. See Figure. |
| Interior Fuse Box | Left side of dash. |
| Rear SAM Control Module W/Fuse & Relay Module (N10/2) | Left side of trunk. See Figure. |
