Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Blower Regulator | Integral to blower motor assembly. |
| DI Control Module | Integral to ignition switch assembly. |
| Driver Front Seat Adjustment Control Module W/Memory & Easy Entry | Under driver's seat. |
| DTR Control Module | Integral to DTR control unit. |

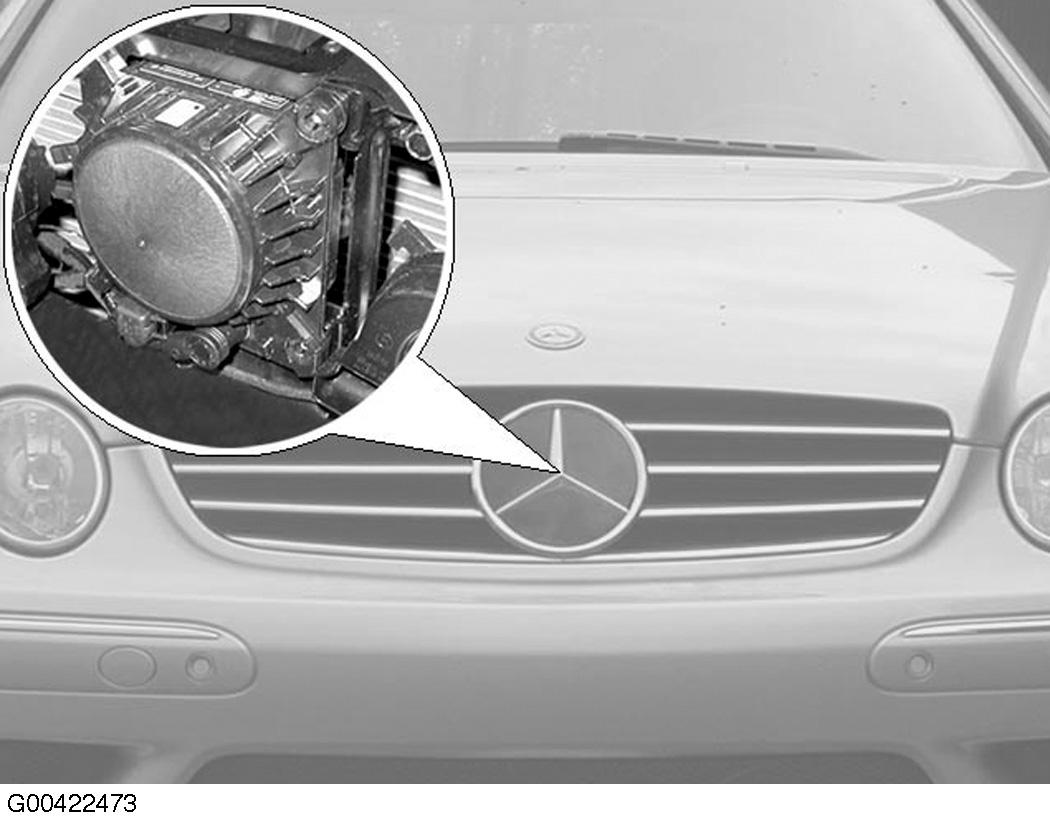

| DTR Control Unit | Front center of engine compartment. See Figure. |

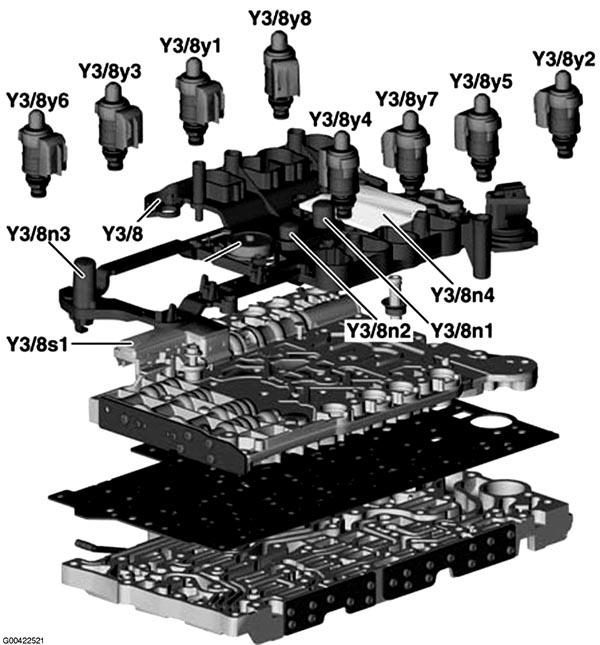

| Electric Control Unit (VGS) (Y3/8) | Under automatic gearbox. See Figure. |

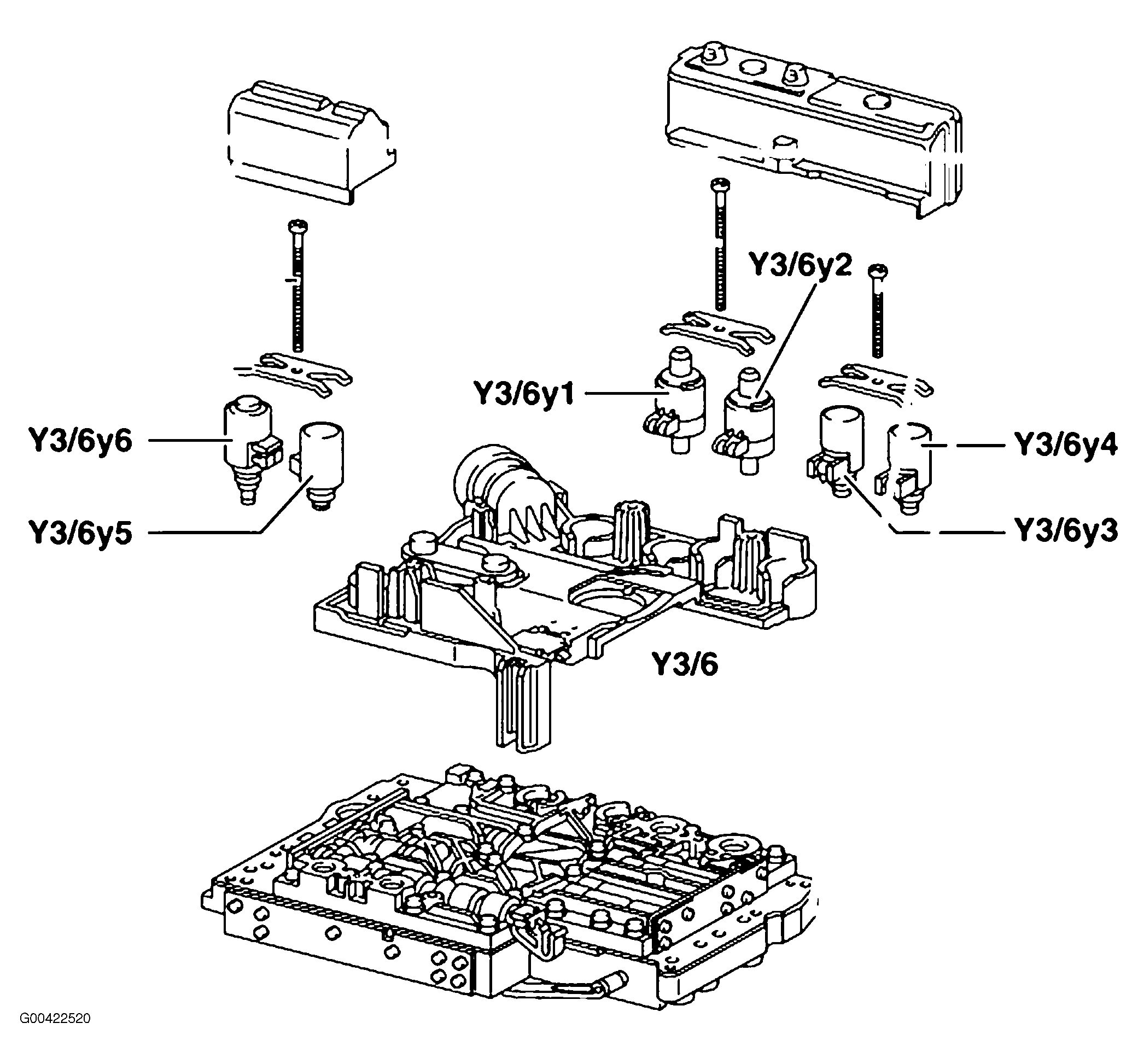

| Electric Control Unit (Y3/6) | In transmission. See Figure. |
| Electronic Selector Lever Module Control Module | Under center console, at base of selector lever assembly. |
| Electronic Steering Lock Control Module | Left upper footwell. |
| ESP & BAS Control Module | Left side of engine compartment. |
| ETC (EGS) Control Module | Behind right kick panel. |
| Fan Relay Module | Integral to front SAM. |
| Front Passenger Front Seat Adjustment Control Module W/Memory & Easy Entry | Under right front seat. |
| Fuel Pump Relay Module | Integral to rear SAM. |
| Fully Integrated Transmission Control (VGS) Control Unit (Y3/8n4) | Integral to electric control unit (VGS). See Figure. |

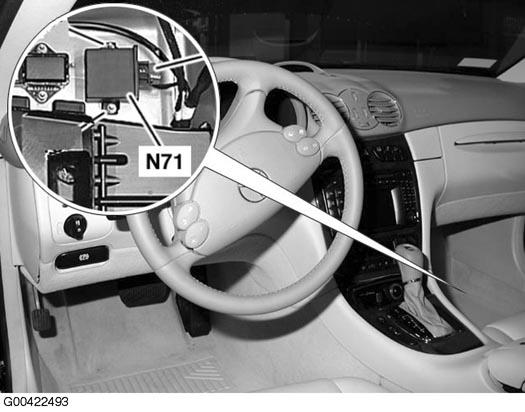

| Headlamp Range Adjustment Control Module (N71) | Behind right kick panel. See Figure. |
| Interior Module Keyless Go Control Module | Under rear of center console. |

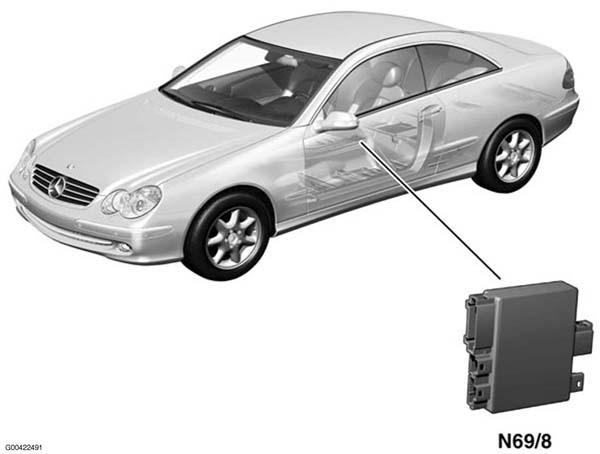

| Left Door Keyless Go Control Module (N69/8) | In driver's door. See Figure. |
| Left Front Door Control Module | In left front door. |
| Left Front Seat Ventilation Blower Regulator | In driver's seat back. |
| ME-SFI (ME) Control Module | In front SAM control module. |
| Power Soft Top Control Module | Left front of trunk. |
| PTS Control Module | Behind right kick panel. |
| Rear Blower Motor Control Module | Rear of center console. |
| Rear Control Module | Left side of trunk. |
| Rear Module Keyless Go Control Module | Left side of trunk. |
| Restraint Systems Control Module | In center console. |
| Right Door Control Module | In right front door. |

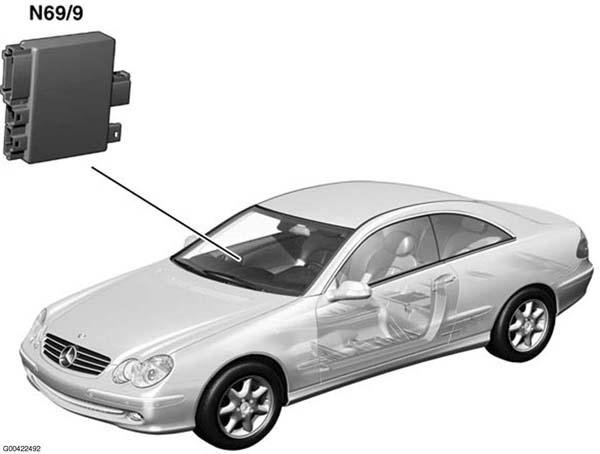

| Right Door Keyless Go Control Module (N69/9) | In front passenger's door. See Figure. |
| Right Front Seat Ventilation Blower Regulator | In front passenger's seat back. |

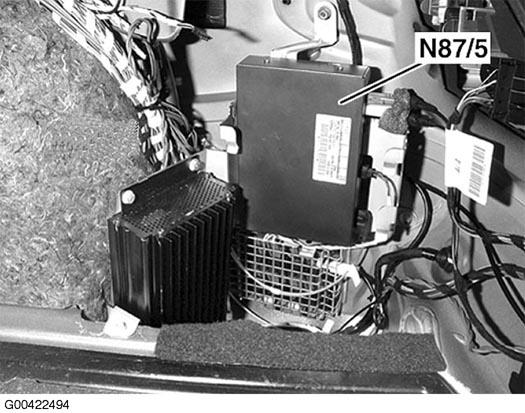

| SDAR Control Unit (N87/5) | At right rear of trunk. See Figure. |

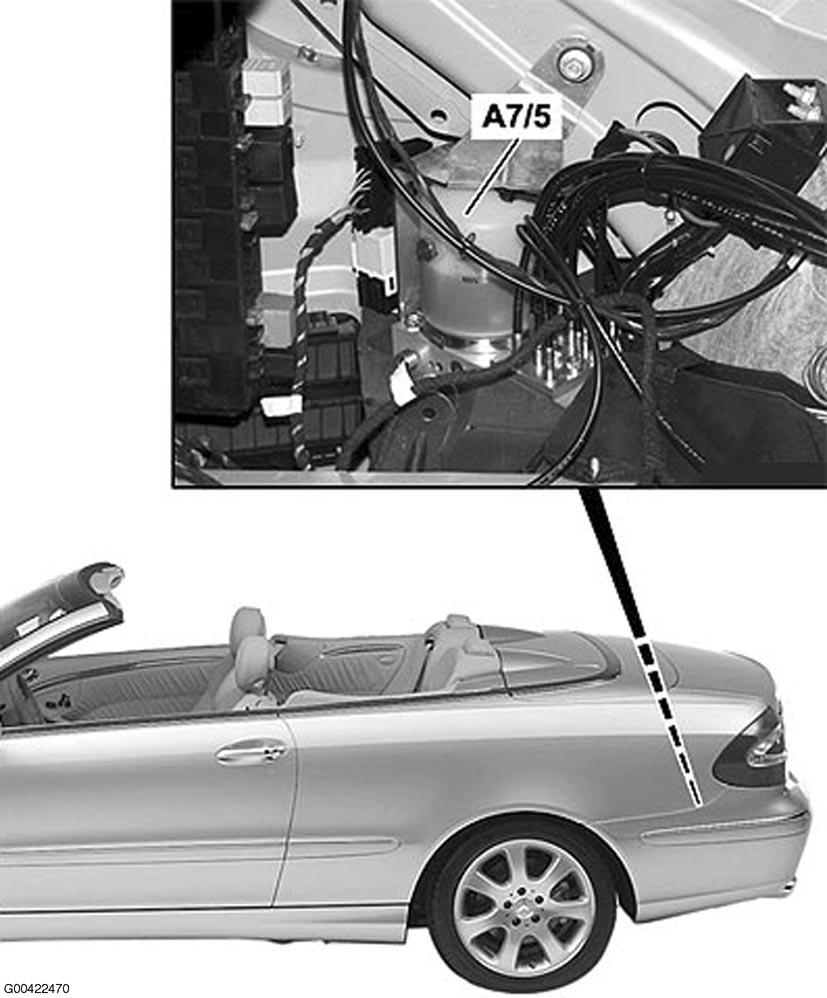

| Soft Top Mechanism Hydraulic Unit (A7/5) | Left rear of trunk. See Figure. |
| Steering Column Module | Behind steering wheel, in column. |
| Tele Aid (Emergency Call System) & D2B Telephone Transmitter/Receiver Control Module | Front center of trunk. |
| Traction System Hydraulic Unit | Left front of engine compartment. |
| Voice Control System Control Module | Front center of trunk. |

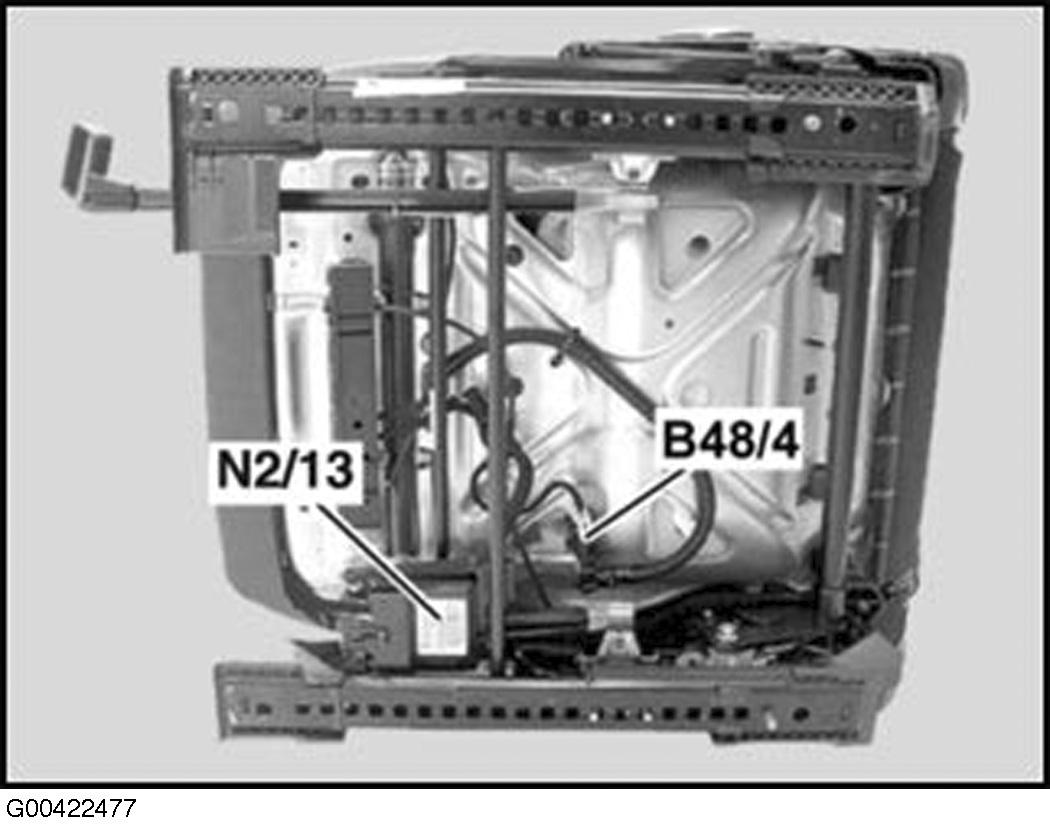

| WSS Control Unit (Weight Sensing System) (N2/13) | Under front passenger's seat. See Figure. |
| Xenon Headlight Control Module (Left) | Integral to left front headlight unit. |
| Xenon Headlight Control Module (Right) | Integral to right front headlight unit. |
| Xenon Headlight Ignition Module (Left) | Integral to left front headlight unit. |
| Xenon Headlight Ignition Module (Right) | Integral to right front headlight unit. |
