Switch for retractable rear head restraints, location/task/design/function - GF91.16-P-4101QA
MODEL 209.4

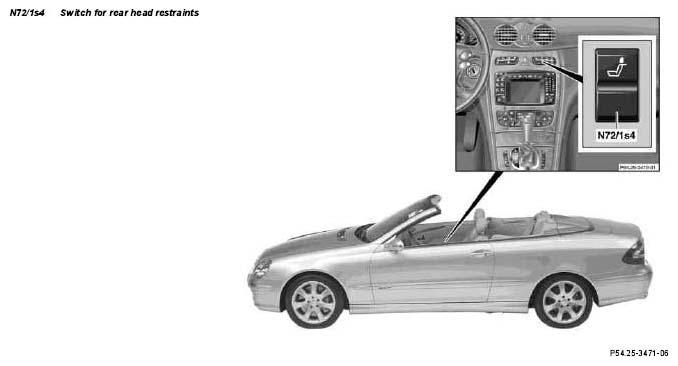

| Switch for retractable rear head restraints, location | The switch for rear head restraints (N72/1s4) is located in the upper control panel control module (N72/1) | ||
| Switch for retractable rear head restraints, task | To trigger the lowering of the head restraints. | ||
| Switch for retractable rear head restraints, design | The corresponding contacts are connected by the rocker function. | ||
| Switch for retractable rear head restraints, function | By operating the switch for rear head restraints (N72/1s4) the electric motor in the roll bar unit is actuated which lowers the head restraints. |
