Remove/install injection system control unit - AR07.08-P-7008TZZ
ENGINE 156.983 in MODEL 219.377
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Read out version coding of the ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10) |
|
| 2 | Switch off ignition | ||
| 3 | Detach ground line from battery | AR54.10-P-0003TX | |
| Notes on battery | AH54.10-P-0001-01A | ||

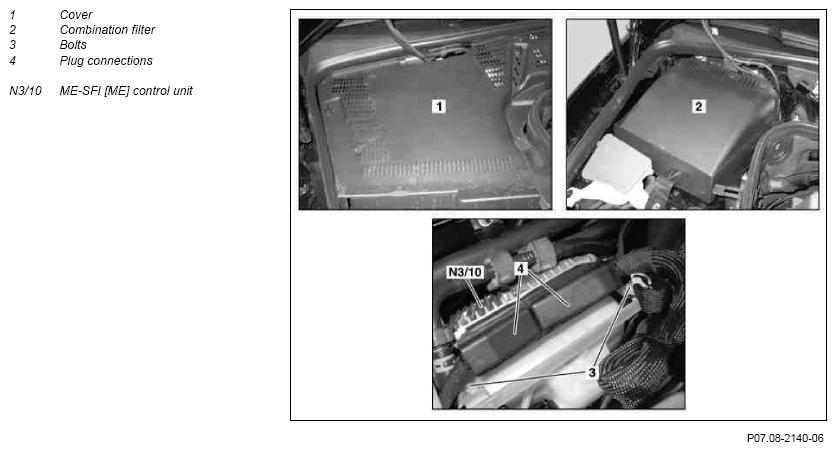

| 4 | Remove cover (1) | ||
| 5 | Remove combination filter (2) and replace if necessary | ||
| Replace combination filter | AP83.00-P-8384TX | ||
| 6 | Remove bolt (3) | ||
| 7 | Pull out ME-SFI [ME] control unit (N3/10) | ||
| 8 | Disconnect connectors (4) on ME-SFI [ME] control unit (N3/10) | ||
| 9 | Install in the reverse order | ||
| 10 | Perform sensor rotor adaptation using STAR DIAGNOSIS | When replacing ME-SFI [ME] control unit (N3/10)
|
|
| 11 | Release transport protection on ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10) | |
| 12 | Personalize and activate ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10) | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 13 | Carry out engine test run |
