Driver-side SAM control unit with fuse and relay module, location/task/design - GF54.21-P-4109T

MODELS 211.0/2/6

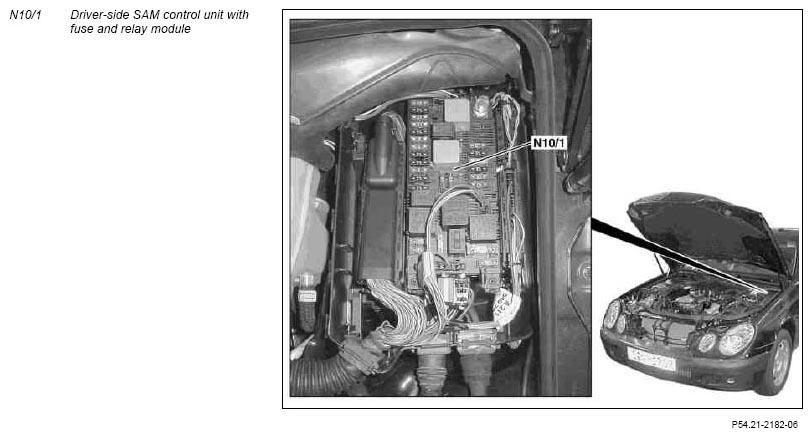

Fig 1: Locating Driver-Side SAM Control Unit With Fuse And Relay Module
G07253694Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Driver-side SAM control unit with fuse and relay module, location The driver-side SAM control unit with fuse and relay module (N10/1) is located in the engine compartment near the left hood hinge (looking towards front of vehicle).
Driver-side SAM control unit with fuse and relay module, task   GF54.21-P-4109-01T
Driver-side SAM control unit with fuse and relay module, design The driver-side SAM control unit with fuse and relay module (N10/1) is contained in a sturdy plastic housing.
Various fuses and relays are attached to the control unit on a supporting bracket.
