Fuse assignment of front prefuse box - GF54.15-P-1256-07TM

Front

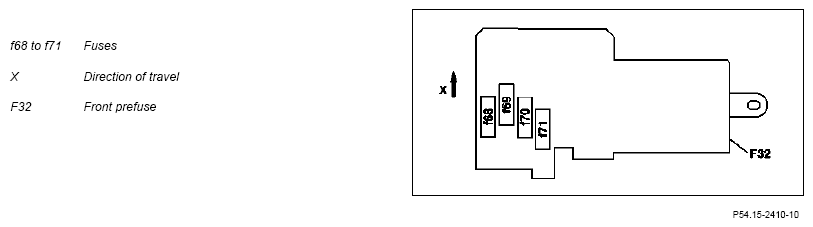

Fig 1: Fuse Assignment Of Front Pre-Fuse Box - Front

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The front prefuse box is located in the footwell on the passenger side.

Rear

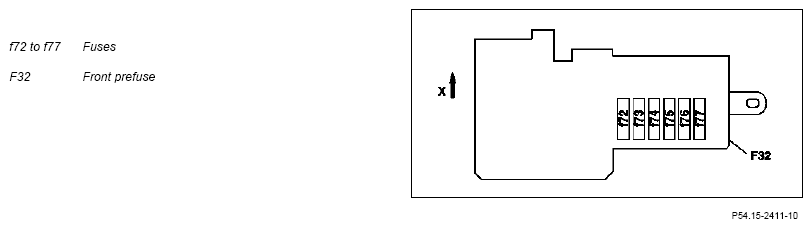

Fig 2: Fuse Assignment Of Front Pre-Fuse Box - Rear

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fuse	Clamping device	Cable ID (cable fused)	Fused function	Rating in amperes (A)
		80.0 BK	Feed-in: Battery (G1)
f68	30	25.0 RD	Valid for engine 629, 642, 646 EVO: Heater booster (R22/3)	200
f69	30	10.0 RD	Valid for engine 629, 642, 646 EVO: Glow time output stage (N14/3)	150
f70	-	-	Valid for model 211.2: External start terminal point	-
f71	30	10.0 RD	Valid for engine 156, 271, 272, 273: AAC with integrated control additional fan motor (M4/7)	150
f71	30	12.0 RD	Valid for engine 629, 642, 646 EVO: Engine and AC electric suction fan with integrated control	100
f72	30	4.0 RDBU	Traction system hydraulic unit (A7/3)	50
f73	30	4.0 RDYE	ESP control unit (N47-5)	40
f74	30	4.0 RD	Valid with code (489) Airmatic (semi-active air suspension): AIRmatic relay (K67)	40
f75	30	4.0 RD	right SAM control unit (N10/11)	40
f76	30	4.0 RDVT	Valid with code (299) PRE-SAFE: Right front reversible emergency tensioning retractor (A76/1)	40
f77	30	4.0 RDBU	Blower motor (M2)	40
