Fuse assignment of fuse box in interior compartment on driver's side - GF54.15-P-1256-04TC

Interior fuse box

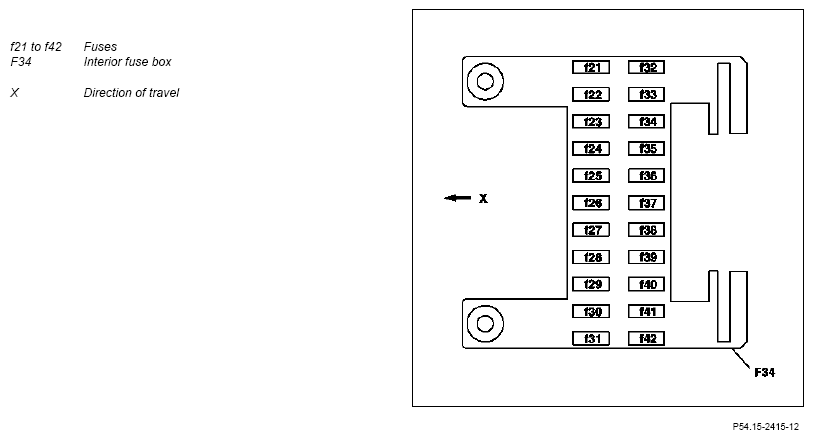

Fig 1: Fuse Assignment Of Fuse Box In Interior Compartment On Driver's Side
G07253669Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fuse Clamping device Cable ID (cable fused) Fused function Rating in amperes (A)
  30 10.0 RD Feed-in:
  • Rear prefuse box (F33)
 150
f21 30 2.5 RDBU
  • Right rear door control unit (N69/4/)
 25
f22 30 2.5 RD
  • Right front door control unit (N69/2/)
 25
f23 30 4.0 RDGN Valid for code (242) electrically adjustable front passenger seat with memory:
  • Passenger-side front seat adjustment control unit with memory (N32/2/)
 30
f24 30 2.5 RDWH Valid for code (889) Keyless Go:
  • Circuit 30 connector sleeve, Keyless Go (Z7/53)
 25
f25 30 2.5 RD Valid for code (228) stationary heater:
fused via stationary heater connector sleeve (Z67):
  • STH heater unit (A6)
 25
30 0.5 RD Valid for code (228) stationary heater:
In addition fused via polyswitch fuse for stationary heater (Z67f1):
  • STH radio remote control receiver (A6/1)
 5
f26 30 0.75 RD Valid for code (819) CD changer:
  • CD changer (A2/6/)
 7.5
f27 30 - Spare -
f28 30 0.75 RDYE
  • Radio (A2)
 5
1.5 RDYE Valid for code (525) MB Audio 50 APS radio:
  • Radio control panel and navigation unit (A2/56)
 15
2.5 RD Valid for code (352) COMAND operating and display system with code (498) Japan version:
  • COMAND operating, display and controller unit (A40/3/)
 5
1.5 RDYE Valid for code (352) COMAND operating and display system:
Fused via COMAND circuit 30 connector sleeve (Z4/22):
  • COMAND operating, display and controller unit (A40/3/)
 15
f29 30 0.75 RDYE Fused via circuit 30z connector sleeve (Z7/58z1):
  • Steering column module (N80)
 7.5
f30 30 0.75 RDYE
  • Data link connector (X11/4)
 7.5
f31 30 0.5 RDGY
  • Upper control panel control unit (N72/1)
  • Cutoff relay for interruptible loads (K75)
 5
f32 30 2.5 RDYE
  • Left rear door control unit (N69/3)
 25
f33 30 2.5 RDBK
  • Left front door control unit (N69/1)
 25
f34 30 4.0 BDYE Valid for code (275) electrically adjustable driver seat, steering column and outside mirrors with memory:
  • Driver-side front seat adjustment control unit, with memory (N32/1)
 30
f35 30 - Spare -
f36 30 2.5 RDYE Valid for code (872) Electrically heated left and right rear seats and/or code (873) Heated left and right front seats:
Fused via circuit 30 connector sleeve (Z4/3z2):
  • Right SAM control unit (N10/11)
 25
f37 30 1.5 RDWH Valid for code (489) AIRmatic (semi-active air suspension):
  • AIRMATIC with ADS control unit (N51)
 4/7,5
f38 30 0.75RDBK Valid for code (438) NECK-PRO:
  • NECK-PRO head restraints relay (K41/1)
 7.5
f39 30 0.75 RDVT
  • Lower control panel control unit (N72/)
 5
f40 30 1.5 RDVT
  • HS [SIH] and seat ventilation control unit (N25/7/)
 5
f41 30 0.5 RDWH
  • Central gateway control unit (N93)
 5
f42 30 0.75 RDVT Valid for engine 113 and/or valid for engine 113, E 55 AMG:
  • ME-SFI [ME] control unit (N3/10/)

Valid for engines 271, 272, 629, 642, 646, 647:
  • Driver-side SAM control unit with fuse and relay module (N10/1)

Valid for engines 629, 642:
  • Terminal 87 relay, engine (N10/1kI)

Valid for engine 271 compressed natural gas (CNG): 		 7.5
1.5 RDVT Fused via circuit 30 connector sleeve (Z4/3z1):
  • Driver-side SAM control unit with fuse and relay module (N10/1)
  • CNG control unit (N118/2)
