Fuse assignment of fuse box in interior compartment on driver's side - GF54.15-P-1256-04TM

Interior fuse box

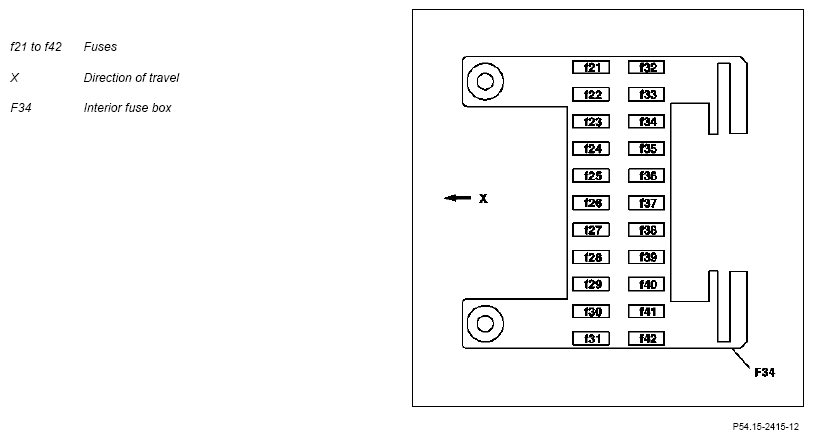

Fig 1: Fuse Assignment Of Fuse Box In Interior Compartment On Driver's Side

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fuse	Clamping device	Cable ID (cable fused)	Fused function	Rating in amperes (A)
	30	10.0 RD	Feed-in:  Rear prefuse box (F33)	150
f21	30	2.5 RDBU	Right rear door control unit (N69/4)	30
f22	30	2.5 RD	Right front door control unit (N69/2)	30
f23	30	4.0 RDGN	Valid with code (242) Electrically adjustable front passenger seat with memory:  Front passenger front seat adjustment control unit with memory (N32/2)	30
f24	30	2.5 RDWH	Valid with code (889) Keyless Go:  Circuit 30 connector sleeve, Keyless Go (Z7/53)	25
f25	30	2.5 RD	Valid with code (228) Stationary heater:  fused via stationary heater connector sleeve (Z67): STH heater unit (A6)	25
	30	0.5 RD	Valid with code (228) Stationary heater:  In addition fused via polyswitch fuse for stationary heater (Z67f1): STH radio remote control receiver (A6/1)	5
f26	30	0.75 RD	Valid with code (819) CD changer:  CD changer (A2/6)	7.5
f27	30	0.75 RDWH	Terminal 15 relay (K41/2)	5
f28	30	0.75 RDYE	Radio (A2)	5
		2.5 RDYE	Valid with code (525) MB Audio 50 APS radio:  Radio control panel and navigation unit (A2/56)	15
		2.5 RD	Valid with code (352) COMAND operating and display system with code (498) Japan version:  COMAND operating, display and control unit (A40/3)	5
		1.5 RDYE	Valid with code (352) COMAND operating and display system:  Fused via COMAND circuit 30 connector sleeve (Z4/22): COMAND operating, display and control unit (A40/3)	15
f29	30	0.75 RDYE	Fused via circuit 30z connector sleeve (Z7/58z1): Steering column module (N80) EIS [EZS] control unit (N73)	7.5
f30	30	0.75 RDYE	Data link connector (X11/4)	7.5
f31	30	0.5 RDGY	Upper control panel control unit (N72/1)	5
f32	30	2.5 RDYE	Left rear door control unit (N69/3)	30
f33	30	2.5 RDBK	Left front door control unit (N69/1)	30
f34	30	4.0 BDYE	Valid with code (275) Electrically adjustable driver seat, steering column and outside mirrors with memory:  Driver-side front seat adjustment control unit, with memory (N32/1)	30
f35	30	0.5 RDBN	Valid with code (494) USA version:  WSS (Weight Sensing System) control unit (N2/13)	5
f36	30	2.5 RDYE	Valid with code (873) Heated left and right front seats:  HS [SIH] and seat ventilation control unit (N25/7)	25
f37	30	1.5 RDWH	Valid with code (489) Airmatic (semi-active air suspension):  AIRmatic with ADS control unit (N51)	15
f38	30	0.75 RDBK	Valid with code (438) NECK-PRO:  NECK-PRO head restraints relay (K41/1)	7.5
f39	30	0.75 RDVT	Lower control panel control unit (N72)	5
f40	30	1.5 RDVT	Valid with code (873) Heated left and right front seats:  HS [SIH] and seat ventilation control unit (N25/7)	10
f41	30	0.5 RDWH	Central gateway control unit (N93)	5
f42	30	0.75 RDVT	ME-SFI [ME] control unit (N3/10) Valid for engine 629, 642, 646 EVO:  Terminal 87 relay, engine (N10/1kI)	7.5
		1.5 RDVT	Valid for engine 271 with code (924) Bivalent natural gas drive:  Fused via circuit 30 connector sleeve (Z4/3z1): Driver-side SAM control unit with fuse and relay module (N10/1) CNG control unit (N118/2)
