Rear SAM control unit with fuse and relay module, location/task - GF54.21-P-4130T

MODEL 211.0/6

Shown on model 211.0

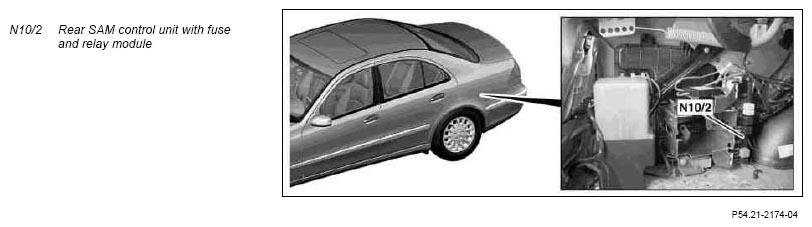

Fig 1: Locating Rear SAM Control Unit With Fuse And Relay Module

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Rear SAM control unit with fuse and relay module, location	The rear SAM control unit with fuse and relay module (N10/2) is installed in the trunk at the inner wheel house on the left side in the direction of travel.
Rear SAM control unit with fuse and relay module, task		GF54.21-P-4112-01T
