Sensors, location/task/function - GF54.65-P-4102T
MODEL 209.3 /4, 211.0 /2 with CODE (220a) Parktronic system (PTS)

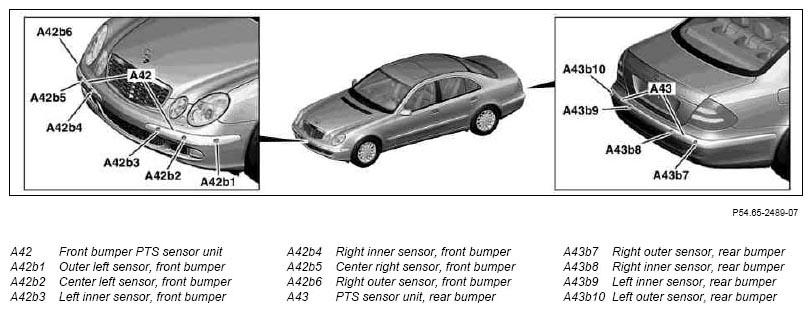

Shown on model 211.0
| Sensors, location | The front bumper PTS sensor unit (A42) and rear bumper PTS sensor unit (A43) are located in the respective bumper. |
| Sensors, task | The sensors transmit ultrasonic waves and detect echoes from existing obstacles. |
| Sensors, function | The ultrasonic sensors function based on the echo sounding principle and operate as transmitters and receivers. |
