Steering column adjustment, function - GF46.15-P-2000T
MODEL 211.0/2 with CODE (275) Memory package (driver seat, steering column, mirrors)
Shown on vehicle up to 31.5.07
Function requirements
- No overvoltage/undervoltage
- valid memory block number
- Circuit 15R On or driver door open (up to 31.5.07)

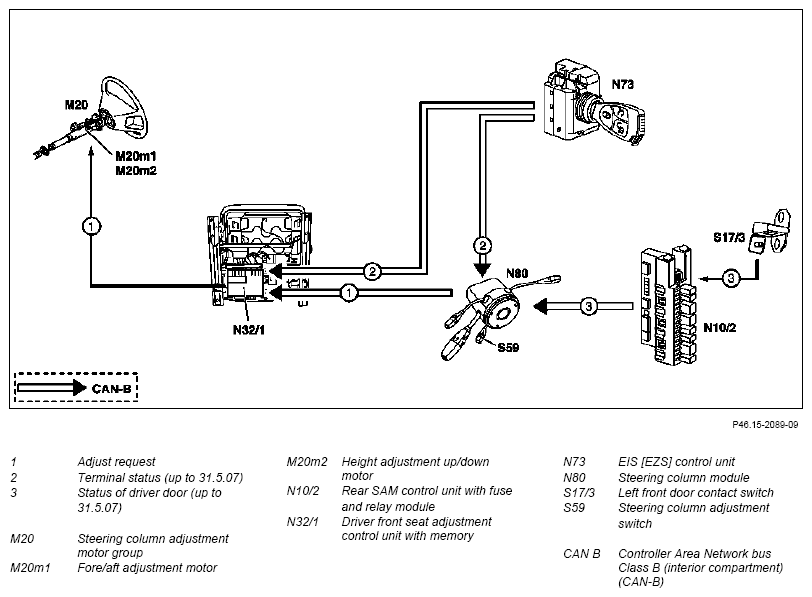

Function
The steering column can be adjusted using the steering column adjustment switch (S59). The corresponding adjustment requests are transmitted via the Controller Area Network-Bus Class B (interior) (CAN-B). The driver-side front seat adjustment control unit with memory (N32/1) actuates the steering column adjustment motor group (M20) accordingly.
| Steering column adjustment motor position measurement, function | GF46.15-P-3000T | |
| Steering column adjustment lock-up protection, function | GF46.15-P-3003T | |
| ESC [ELV] motor group, location/task/design/ function | GF46.15-P-4101T | |
| Steering column adjustment switch, location/ task | GF46.15-P-5001T | |
| Steering column module, location/task | GF54.21-P-4125T | |
| Rear SAM control unit with fuse and relay module, location/task | Model 211.0 | GF54.21-P-4130T |
| Model 211.2 | GF54.21-P-4130TA | |
| Left front seat adjustment control unit with memory location/task | GF91.29-P-2106T |
