Remove/install injection system control unit - AR07.08-P-7008TS
ENGINE 272.943 /964 /972 /944 in MODEL 211
ENGINE 273.960 /962 in MODEL 211
ENGINE 272.964, 273.960 in MODEL 219
| Remove/install | |||
|---|---|---|---|
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1.1 | Read out transfer variant coding of ME-SFI [ME] control unit (N3/10) using STAR DIAGNOSIS | When replacing the ME control unit (N3/10). | |
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||
| 1.2 | Turn key in ignition switch to position "0". | When ME-SFI [ME] control unit (N3/10) is reused. | |
| 2 | Remove air filter housing | AR09.10-P-1150TS | |

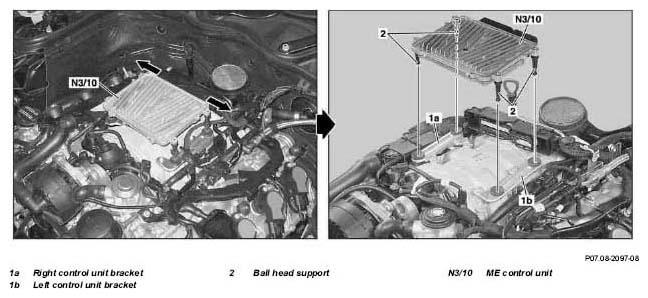

| 3 | Move shift interlocks of electrical connectors at ME-SFI [ME] control unit (N3/10) in direction of the arrow, and disconnect electrical connectors from ME-SFI [ME] control unit (N3/10) | ||
| 4 | Pull out ME-SFI [ME] control unit (N3/10) upwards out of right control unit bracket (1a) and left control unit bracket (1b) | ||
| 5 | Detach the ball-type support braces (2) from the ME-SFI [ME] control unit (N3/10) | When replacing the ME control unit (N3/10). | |
| *BA07.08-P-1001-01A | |||
| 6 | Detach right control unit bracket (1a) and left control unit bracket (1b) as required from resonance intake manifold | *BA07.08-P-1002-01A | |
| 7 | Install in the reverse order | ||
| 8 | Perform sensor rotor adaptation using STAR DIAGNOSIS | When replacing the ME control unit (N3/10). | |
| 9 | Release transport protection on ME-SFI control unit (N3/10) | When replacing the ME control unit (N3/10). | |
| 10 | Personalize and activate the ME-SFI [ME] control unit (N3/10) | When replacing the ME control unit (N3/10). | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Carry out engine test run | When replacing the ME control unit (N3/10). |
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA07.08-P-1001-01A | Ball head support to control unit | Nm | 4 | 4 |
| BA07.08-P-1002-01A | Bolt, control unit holder to resonance intake manifold | Nm | 8 | 8 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
