Remove/install injectors - AR07.16-P-1000T: Notes

ENGINE 646.951 in MODEL 211.004

ENGINE 646.961 in MODEL 211.006 /206 /606

ENGINE 647.961 in MODEL 211.016 /216 /616

ENGINE 648.961 in MODEL 211.023 /026 /223 /226

ENGINE 646.962 in MODEL 203.007 /207 /707

ENGINE 646.963 in MODEL 203.008 /208 /708

ENGINE 646.966 in MODEL 209.308

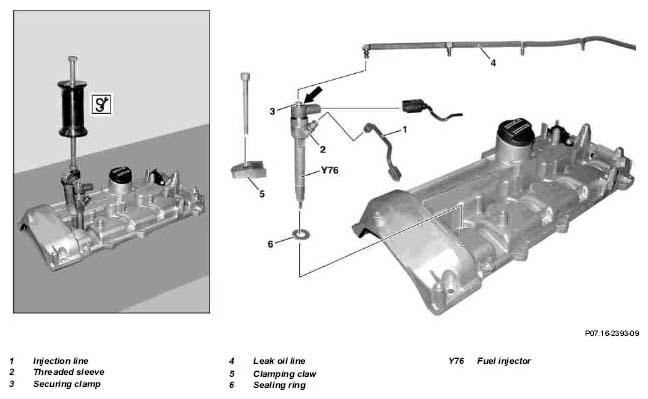

Fig 1: Identifying Injectors Components - Engine 646.961
G04987446

Illustrated on engine 646.961

MODIFICATION NOTES

21.2.06 Bolt, tensioning claw to injector Engine 646.951/961/962/963, 647.961 *BA07.16-P-1004-01D
REMOVINGINSTALLING Remove/install
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning  caused by inhaling and swallowing fuel and risk of injury  to eyes and skin caused by contact with fuel No fire, sparks, open flames or smoking.
Only pour fuels into suitable and appropriately marked containers.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
DANGER Risk of explosion  from fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure. Keep all ignition sources out of hazard area.
Do not carry out any work on systems when they are under pressure
AS07.16-Z-0001-01A
1 Open engine hood Model 203 AR88.40-P-1000P
    Model 209 AR88.40-P-1000Q
    Model 211 AR88.40-P-1000T
2 Remove cylinder head cover trim Engine 646.951/961/962/963, 647.961 AR01.20-P-5014-02A
    Engine 648.961 AR01.20-P-5014-02C
    TORQUE SPECIFICATION *BA01.20-P-1002-01G
    TORQUE SPECIFICATION *BA01.20-P-1003-01G
3 Disconnect electrical connectors to fuel injectors (Y76)
4 Remove injection lines (1) for common rail diesel injection (CDI) NOTES Counterhold threaded unions (2) when slackening in order to avoid them also being slackened which may result in leaks. AR07.16-P-1080T
    TORQUE SPECIFICATION *BA07.16-P-1007-01D
5 Dismantle leak oil line (4) IMPORTANT For this purpose, press in locking clamps (3) at connections for leak oil line (4) (arrow). Locking clamps (3) remain on fuel injectors (Y76).
IMPORTANTInstallation:  Replace removed safety clips (3).

6 Remove clamping claws (5) at fuel injectors (Y76) NOTES If bolt is torn off during removal or thread in cylinder housing is damaged:

    Thread repair for clamping claw mount
IMPORTANTInstallation:  Always replace bolts for clamping claws (5). Tighten bolts in stages
AR07.16-P-1000-02A
    TORQUE SPECIFICATION *BA07.16-P-1004-01D
    SPECIAL TOOL Figure
7 Remove fuel injectors (Y76) IMPORTANT Mark installation location of fuel injectors (Y76).
If a fuel injector is tight, (Y76) fit an extraction claw instead of clamping claw (5) and remove fuel injector (Y76) using an extractor.

    SPECIAL TOOL
IMPORTANT The fuel injectors (Y76) can also be removed with the threaded adapter, these fuel injectors (Y76) must then be replaced in all cases.
Refer to: ↓
Fig 4
    Remove injectors with threaded adapter AR07.16-P-1000-01A
    SPECIAL TOOL Figure
    SPECIAL TOOL Figure
    SPECIAL TOOL
IMPORTANT If fuel injectors (Y76) cannot be removed with extraction claw and puller or thread adapter.
Refer to: ↓
Figure
    Remove frozen fuel injectors AR07.16-P-1000-03B
    SPECIAL TOOL Figure
    SPECIAL TOOL Figure
    SPECIAL TOOL Figure
    SPECIAL TOOL Figure
    SPECIAL TOOL Figure
    IMPORTANTInstallation:  Replace sealing rings (6). To ensure injection lines (1) are installed free of tension, the injection lines (1) must be fitted on before tightening the fuel injectors (Y76).
When installing new injectors (Y76), the control units must be adapted using STAR DIAGNOSIS to store the injector quantity compensation coding in the CDI control unit.
Present on the vehicle
Make adhesive label unrecognizable according to injector quantity compensation coding.

CLEAN Cleaning
8 Clean fuel injectors (Y76) and injector recesses NOTES Close injector recesses before cleaning with a pin to prevent internal damage due to ingress of foreign matter.
NOTES Clean injector recesses and fuel injectors (Y76) with a wire brush, grease injector recesses using special grease, clean, blow out and cover injector recesses with a round brush and cylinder brush and then clean again using soft cloths to guarantee their trouble-free function.
IMPORTANT Fuel injectors (Y76) must not be disassembled.

    SPECIAL TOOL Fig 2
    SPECIAL TOOL Fig 6
    Special grease *BR00.45-Z-1036-06A
NOTES Notes on injectors   AH07.16-P-1000-01A
9 Install in the reverse order
10 Classify fuel injectors (Y76) Engine 646 in model 203, 211 with code (803) Model year 2003
Engine 647 in model 211 with code (804)
Model year 2004
Engine 648 in model 211 with code (803)
Model year 2003
Engine 646 in model 209
IMPORTANT Only if a fuel injector (Y76) was exchanged.
Refer to: ↓

REFER TO DESCRIPTION & OPERATION   Service Information: Injector classification SI07.16-P-0002A
INSPECT Checking
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
11 Check fuel system for leaks with engine running IMPORTANT Carry out visual inspection.
12 Read out fault memory and erase IMPORTANT Stored faults which may be caused by assembly work, test work, removed lines or a simulation, must be processed and erased in the fault memories after completing the work.
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
TORQUE SPECIFICATION CRANKCASE VENTILATION, CYLINDER HEAD COVER

Number Designation Engine 646.951/961, 647.961 Engine 646.962/963/966 Engine 648
BA01.20-P-1002-01G Bolt, cylinder head cover trim to cylinder head Nm 9 9 9
BA01.20-P-1003-01G Bolt, cover to charge air manifold. Nm 9 9 9
TORQUE SPECIFICATION COMMON RAIL DIESEL INJECTION (CDI)

Number Designation Engine 646.951/ 961, 647.961, 648 Engine 646.962/963/966
BA07.16-P-1004-01D Bolt, tensioning claw to injector Stage 1 Nm 7 7
Stage 2 ∠° 90 90
Stage 3 ∠° 90 90
BA07.16-P-1007-01D Nut, pressure line to rail/injector Stage 1 Nm 23 23
Stage 2 Nm - -
Fig 2: Identifying Round Brush (611 589 00 68 00)
G04987447
Fig 3: Identifying Impact Extractor (602 589 00 33 00)
G04987448
Fig 4: Identifying Extraction Claw (611 589 00 33 00)
G04987449
Fig 5: Identifying Threaded Adapter (668 589 01 34 00)
G04987450
Fig 6: Identifying Cylinder Brush (668 589 00 68 00)
G04987451
Fig 7: Identifying Heli-Coil Tool (000 589 18 99 00)
G04987452
Fig 8: Identifying Hand Pump (652 589 00 33 21)
G04987453
Fig 9: Identifying Puller (667 589 03 63 00)
G04987454
Fig 10: Identifying Extraction Tool (611 589 02 33 00)
G04987455
Fig 11: Identifying Hollow Piston Cylinder (001 589 51 33 00)
G04987456
Fig 12: Identifying Adapter Plate (668 589 01 32 00)
G04987457
Fig 13: Identifying Hydraulic Hose (Complete) (652 589 00 33 23)
G04987458
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1036-06A Special grease A 001 989 42 51 10
