NECK-PRO head restraint triggering device, component description - GF91.16-P-2020T
MODELS 211.0 /2 as of 1.6.05
Shown on model 211.0

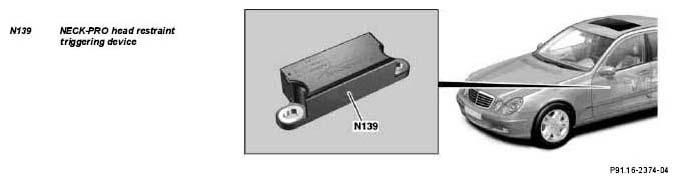

Location
The NECK-PRO head restraint triggering device is located behind the electronic selector lever module control unit on the center tunnel.
Task
The NECK-PRO head restraint triggering device activates the driver NECK-PRO head restraint solenoid (Y24/12) and the front passenger NECK-PRO head restraint solenoid (Y24/13) in the event of a rear end collision.
Design
The NECK-PRO head restraint triggering device contains a sensor that registers the acceleration of the vehicle in the event of a rear end collision.
Function
The integral sensor registers the acceleration of the vehicle in the event of a rear end collision and triggers the solenoids when a defined limit value is exceeded.
