Right front seat adjustment control unit, with memory location/task - GF91.29-P-2107T: Notes

MODELS 211.0 /2 /6 with CODE (242b) Electrically adjustable front passenger seat with memory with CODE (275a) Memory package (driver's seat, steering column, mirrors)

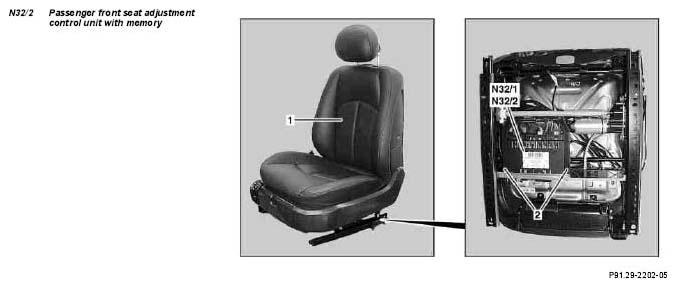

Fig 1: Identifying Passenger Front Seat Adjustment Control Unit
G04986983
  Right front seat adjustment control unit, with memory, location The passenger-side front seat adjustment control unit with memory (N32/2) is located in the seat frame of the front passenger seat.
  Right front seat adjustment control unit, with memory, task   GF91.29-P-2107-02T
