Steering Column Module Separation Point Connector End View (X4/39)

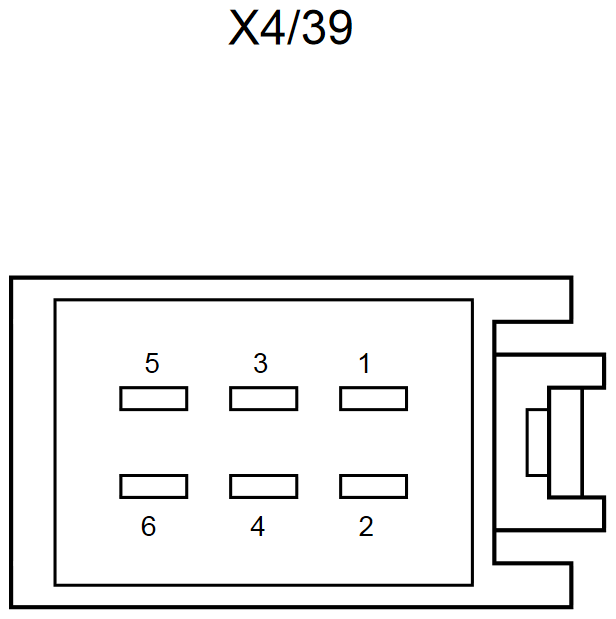

Fig 1: Steering Column Module Separation Point Connector End View (X4/39)
G10975696Courtesy of MERCEDES-BENZ USA
