Universal Portable CTEL Interface (UPCI) function diagram - GF82.70-P-0004-02GZ
Block diagram

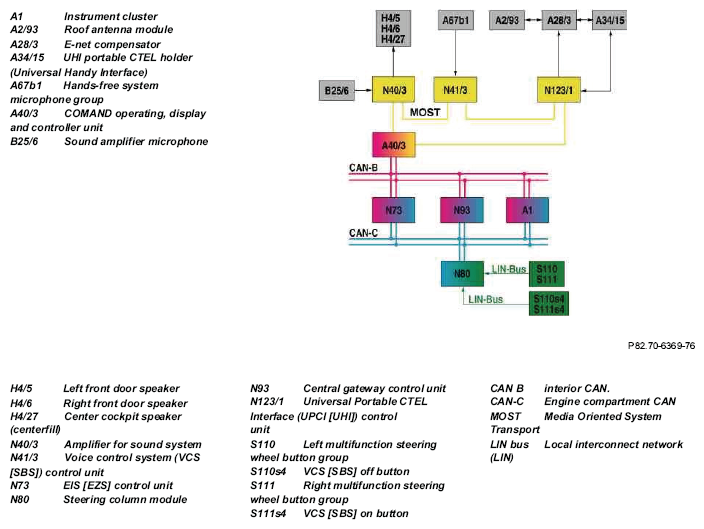

Fig 1: Universal Portable CTEL Interface (UPCI) Block Diagram
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
