Fuel consumption signal, function - GF07.61-P-3029AMG
ENGINE 156.980 in MODEL 164, 251
ENGINE 156.982 in MODEL 209
ENGINE 156.983 in MODEL 211, 219
ENGINE 156.984 in MODEL 216, 221

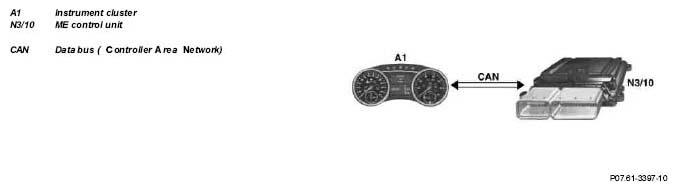

The current fuel consumption is transmitted to the trip computer in the instrument cluster via the CAN data bus by the ME control unit in the form of square-wave pulse packages.
The fuel consumption signal is calculated by the instrument cluster (e.g. 8.2 l/h).
One square-wave pulse means 0.2 l/h fuel consumption.
| Component description for the ME-SFI [ME] control unit | N3/10 | GF07.61-P-6000AMG |
