Voice control system (VCS), function - GF82.70-P-0002GZ: Notes

MODEL 164, 251 with CODE (813) Voice control system (VCS [SBS]) except CODE (498) Japan version

Data flow chart

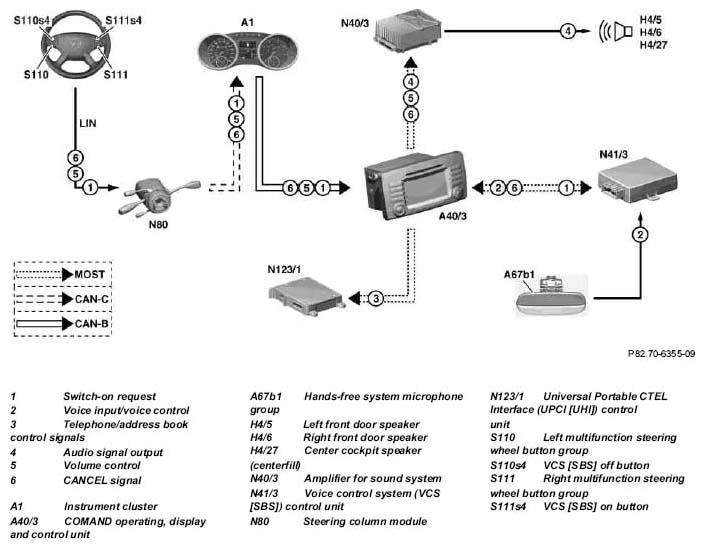

Fig 1: Voice Control System (VCS) Function Diagram
G05260281Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function

With the voice control system (VCS [SBS]) it is possible to operate the audio, navigation and communication components installed in the vehicle.

The voice control system recognizes commands that are spoken together and that are entered independently of the speaker, as well as names specified and trained by the user.

The following functions can be controlled via the voice control system (VCS [SBS]):

After activation, playback of the radio and navigation unit (A2/56) or of the COMAND operating, display and controller unit installed in the vehicle is automatically muted.

Data transfer is accomplished analog/digital (CAN/MOST). Activation or deactivation takes place by pressing the VCS [SBS] off button or the VCS [SBS] on button. The user is acoustically informed of the activation through an audible beep and of deactivation via a voice output.

Function requirement:

As soon as circuit 15R is "on" and the COMAND operating, display and controller unit is active, all functions are available. The enabled SIM card must be inserted in the portable CTEL in order to operate the telephone.

Voice control and voice output

After activation of the VCS [SBS], it is possible to operate the telephone or the audio system via the hands-free system microphone group using precisely defined voice commands.

The spoken commands are processed in the voice control system control unit and transmitted via the MOST BUS to the COMAND operating, display and controller unit.

Voice output of the VCS [SBS] takes place over the speaker system. The volume of the announcements can be adjusted with the volume control at the COMAND operating, display and controller unit or with the VCS [SBS] on button and VCS [SBS] off button on the multifunction steering wheel.

In addition to the manual volume setting, a dynamic noise-dependent volume control for voice output of the VCS [SBS] is active. It depends on the magnitude of the ambient noise level in the vehicle and cannot be influenced by the user.

The VCS also contains a priority control, i.e. if collisions occur in the control of individual components in the communication for audio system, functions started by the VCS are discontinued or skipped.

An example of this is:

The navigation system attempts voice output while the VCS is involved in a dialog with the user. As the voice output from the navigation system has the highest priority of all systems, dialogue with the VCS [SBS] is interrupted by the system, the (navigation) voice output takes place, and the system then returns to (VCS [SBS]) dialogue with the user.

Voice control system (VCS), arrangement of components Model 164 GF82.70-P-0002-01GZ
  Model 251 GF82.70-P-0002-01RT
Voice control system (VCS) function diagram   GF82.70-P-0002-02GZ
Activating/accepting call, function   GF82.70-P-2000GZ
Terminating/ending call, function   GF82.70-P-2001GZ
Navigation, function   GF82.61-P-2003GZ
Dialing, function   GF82.70-P-3000GZ
Telephone book, function   GF82.70-P-3001GZ
Station list, function   GF82.70-P-3002GZ
Voice control system (VCS [SBS]) control unit, component description Model 164 GF82.70-P-4300GZ
  Model 251 GF82.70-P-4300RT
Voice control system (VCS [SBS]) switch, component description   GF82.70-P-4301GZ
Handsfree system microphone Model 164 with USA version, code 494, With preinstallation for telephone "Handy", UPCI system, USA/Canada code 387
with TELE AID emergency call system code 359		 GF82.70-P-4121GZ
  Model 164 with preinstallation for telephone "Handy", UPCI system, code 386, with telephone "Handy", UPCI system, code 388,
Except USA version, code 494		 GF82.70-P-4121GZE
  Model 251 with USA version, code 494, with preinstallation for telephone "Handy", UPCI system, USA/Canada, code 387,
with TELE AID emergency call system code 359		 GF82.70-P-4121RT
  model 251 with preinstallation for telephone "Handy", UPCI system, code 386, with telephone "Handy", UPCI system, code 388,
Except USA version, code 494		 GF82.70-P-4121RTE
Speaker system, component description Model 164 with USA version, code 494,
with HIGH Class USA, code 528,
with COMAND APS USA (with navigation system), code 530,
with sound system, code 810,
with TELE AID emergency call system code 359		 GF82.62-P-4220GZ
  Model 164 except USA version, code 494,
with MB Audio 20 radio, code 523,
with MB Audio 50 APS radio, code 525,
with COMAND APS (with navigation system), code 527,
With sound system code 810		 GF82.62-P-4220GZE
  Model 251.1 with USA version, code 494,
with HIGH Class USA, code 528,
with COMAND APS USA (with navigation system), code 530,
with TELE AID emergency call system, code 359,
With sound system, code 810		 GF82.62-P-4220RT
  Model 251 except USA version, code 494 GF82.62-P-4220RTE
