| 1 |
Control solenoid valve, actuation |
10 G |
| 2 |
KEYLESS-GO antenna, actuation |
2 G |
| 3 |
Transmitter key, request |
1 D |
| 4 |
Access authorization code, signal |
5 B |
| 4 |
Access authorization code, signal |
8 E |
| 4 |
Access authorization code, signal |
13 E |
| 5 |
Lock/unlock central locking, request |
15 J |
| 5 |
Lock/unlock central locking, request |
15 C |
| 5 |
Lock/unlock central locking, request |
20 F |
| 5 |
Lock/unlock central locking, request |
20 C |
| 6 |
CL [ZV] motor, actuation |
12 K |
| 6 |
CL [ZV] motor, actuation |
13 B |
| 6 |
CL [ZV] motor, actuation |
17 H |
| 6 |
CL [ZV] motor, actuation |
21 G |
| 6 |
CL [ZV] motor, actuation |
21 B |
| 7 |
Rear-end door handle switch, status |
11 F |
| 7 |
Rear-end door handle switch, status |
16 K |
| 8 |
Spare tire carrier control button, status |
12 G |
| A17/1 |
Left front KEYLESS GO door handle |
10 H |
| A17/2 |
Right front KEYLESS GO door handle |
10 H |
| A17/3 |
Left rear KEYLESS GO door handle |
10 H |
| A17/4 |
Right rear KEYLESS GO door handle |
10 J |
| A2/35 |
Trunk KEYLESS GO antenna |
1 G |
| A2/39 |
Left rear door KEYLESS-GO antenna |
1 G |
| A2/41 |
Right rear door KEYLESS-GO antenna |
1 G |
| A2/60 |
Cockpit KEYLESS-GO antenna |
1 H |
| A2/61 |
Interior KEYLESS GO antenna |
1 H |
| A2/93 |
Roof antenna module |
5 C |
| A72 |
Rear door locking unit |
11 K |
| A8/1 |
Transmitter key |
1 C |
| CAN B |
Interior CAN |
12 E |
| CAN B |
Interior CAN |
12 G |
| CAN B |
Interior CAN |
14 G |
| CAN B |
Interior CAN |
14 D |
| CAN B |
Interior CAN |
17 F |
| CAN B |
Interior CAN |
17 E |
| M14/10 |
Fuel filler flap CL [ZV] motor |
16 H |
| M14/5 |
Right front door CL [ZV] motor |
22 H |
| M14/6 |
Left front door CL [ZV] motor |
12 B |
| M14/8 |
Left rear door CL [ZV] motor |
22 B |
| M14/9 |
Right rear door CL [ZV] motor |
16 H |

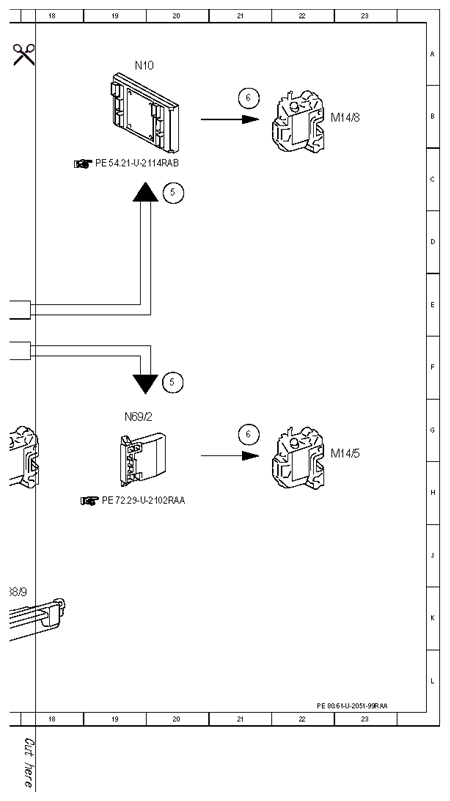

| N10 |
Front SAM control unit |
19 A |
| N10/8 |
Rear SAM control unit |
14 J |
| N69/1 |
Left front door control unit |
14 B |
| N69/2 |
Right front door control unit |
19 G |
| N69/5 |
KEYLESS-GO control unit |
10 E |
| N73 |
EIS [EZS] control unit |
14 E |
| S88/9 |
Rear-end door handle switch |
17 K |
