Distronic Plus including BAS Plus and Park Assist, function diagram - GF30.30-P-0004-03SX

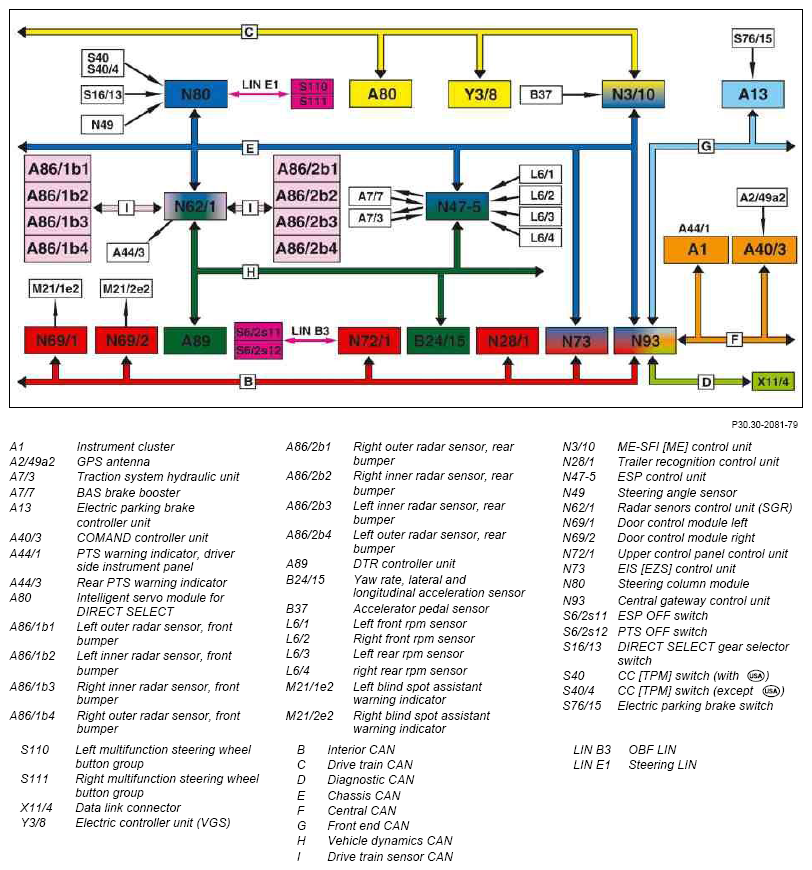

Fig 1: Distronic Plus Including BAS Plus And Park Assist Function Diagram
G07587376Courtesy of MERCEDES-BENZ USA
