Remove/install steering coupling - AR46.10-P-8000SX
MODEL 221.0 /1, 216
| Remove/install | |||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Deactivate easy entry/exit function | Vehicles with memory package (driver seat, steering column, mirrors) code 275 | AR54.30-P-1000-02ESX |
| 2 | Turn steering wheel to central position (front wheels in straight ahead position) and secure with the retaining device | ||
| Fig 2 | |||
| 3 | Remove bottom engine compartment paneling | Vehicles without code (Z07) Top protection | AR61.20-P-1105SX |
| Vehicles with code (Z07) Top protection | AR61.20-P-1105SXS | ||

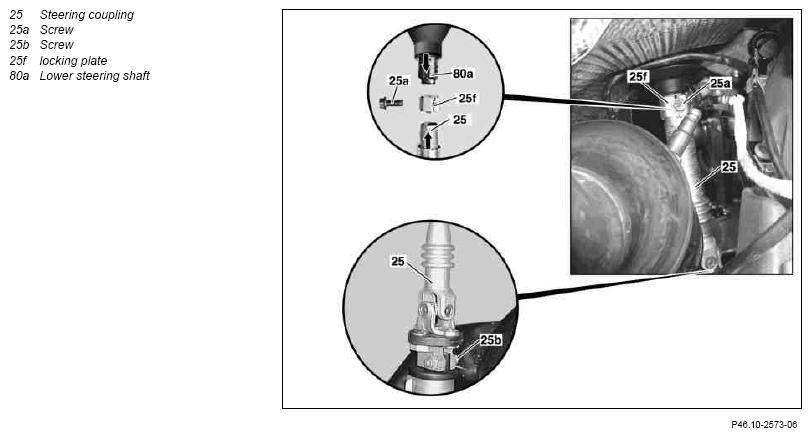

| 4 | Remove heat shield from lower steering shaft (80a) | ||
| 5 | Remove heat shield from steering coupling (25) | Model 221.071/ 171, model 221.176 | |
| 6 | Detach steering coupling (25) from lower steering shaft (80a) by removing bolt (25a) | *BA46.10-P-1001-01L | |
| 7 | Pull lower steering shaft (80a) upward out of steering coupling (25) | ||
| 8 | Unscrew nut and pull bolt (25b) out of steering coupling (25) | *BA46.10-P-1002-01L | |
| 9 | Detach steering coupling (25) from rack-and- pinion steering | ||
| AR46.20-P-0600-01SX | |||
| 10 | Detach locking plate (25f) from steering coupling (25) | Installation: Insert a new self-locking nut into the existing locking plate (25f). |
|
| 11 | Install in the reverse order |
STEERING SHAFT
| Number | Designation | Model 216 | Model 221 | |
|---|---|---|---|---|
| BA46.10-P-1001-01L | Self-locking bolt, steering coupling to steering shaft | Nm | 30 | 30 |
| BA46.10-P-1002-01L | Self-locking nut, steering joint to rack-and-pinion steering | Nm | 25 | 25 |
