Infrared remote control receiver, component description - GF80.30-P-6000SX

MODEL 221.0 /1, 216.3 up to Model Year 8

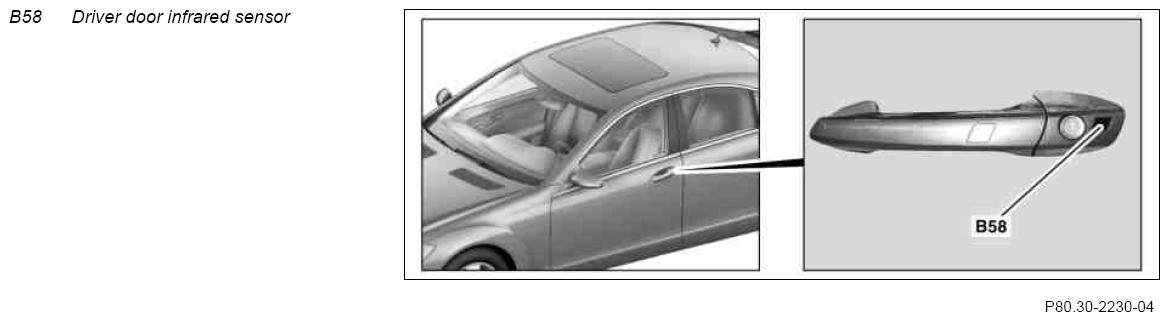

Fig 1: Locating Driver Door Infrared Sensor

Courtesy of MERCEDES-BENZ USA

Location

The infrared sensor is located in the door handle on the driver door.

Task

The infrared sensor receives the signals from the transmitter key (A8/1) and relays them to the

• Left door control unit (N69/1) on model 216 or
• Left front door control unit (N69/1) on model 221

The corresponding door control unit transfers the signals to the interior CAN.

Receiver signals

• Global locking and unlocking central locking (ZV)
• Selective unlocking
• Remote trunk closing and opening
• Convenience opening and closing
