Keyless Go control unit, component description - GF80.61-P-4200SX
MODEL 221.0 /1, 216.3 with CODE (889) Keyless Go up to Model Year 8
Shown on model 221.0

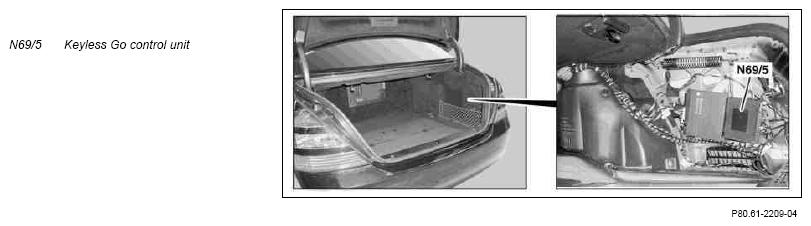

Location
The control unit is located in the trunk on the right rear.
Function
The control unit is connected to the interior CAN for exchanging data, reads in the following sensors, switches and consumers and actuates their voltage supply and function.
Controlling
- Left opening assist motor (A85m2) (model 216) or Left front opening assist motor(A85m2) (model 221)
- Right opening assist motor (A85/1m2) (model 216) or Right front opening assist motor (A85/1m2) (model 221)
- Left rear opening assist motor (A85/3m2) (model 221)
- Right rear opening assist motor(A85/4m2) (model 221)
- Trunk Keyless Go antenna (A2/35)
- Left door Keyless Go antenna (A2/39) (model 216) or Left rear door Keyless Go antenna (A2/39) (model 221)
- Right door Keyless Go antenna (A2/41) (model 216) or Right rear door Keyless Go antenna (A2/41) (model 221)
- Center console Keyless Go antenna (A2/60)
- Interior Keyless Go antenna (A2/61)
Reading in of sensors
- Left Keyless Go sensor unit (B67/1) (model 216) or Left front keyless sensor unit (B67/1) (model 221)
- Right Keyless Go sensor unit (B67/2) (model 216) or Right front Keyless Go sensor unit (B67/2) (model 221)
- Left rear Keyless Go sensor unit (B67/3) (model 221)
- Right rear Keyless Go sensor unit (B67/4) (model 221)
- Reading in rear window antenna amplifier module (A2/12) for detecting position of transmitter key (A8/1) and access authorization code.
Discrete inputs
- Circuit 30
- Circuit 31
- Keyless Go sensor units
- Rear window antenna amplifier module
Discrete outputs
- Opening assist motors
- Keyless Go antennas
