Keyless Go sensor unit, component description - GF80.61-P-4109SX

MODEL 221.0 /1, 216.3 with CODE (889) Keyless Go up to Model Year 8

Shown on model 221.0

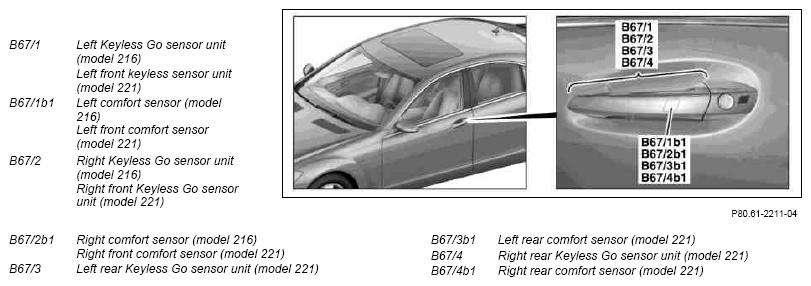

Fig 1: Locating Keyless Go Sensor Units

Courtesy of MERCEDES-BENZ USA

Location

The Keyless Go sensor unit is located in the corresponding outer door handle.

Design

A total of four sensors is integrated into the Keyless Go sensor unit:

• Comfort sensor (recessed area)
• Outer capacitive sensor
• Inner capacitive sensor
• Hall sensor

Function

• The inner capacitive sensors detect when the door handle is gripped to open the door and the vehicle is unlocked.
• The outer capacitive sensors detects when the door handle is touched to close the door and the vehicle is locked.
• The Hall sensors detect when the door handle is pulled by activating an opening assist (only if a door handle is pulled within 0.5 s after unlocking the central locking (CL))
• The convenience sensor actuates the sliding/tilting roof convenience closing function as long as the sensor is touched (on model 216 or on model 221 with code (414) Power glass tilting/sliding roof) or top sliding roof (on model 221 with code (413) Panoramic glass roof with top sliding roof) and all side windows as well as roller sun blinds (with code (540) Electric roller blind for rear window or on model 221 with code (297) Roller sun blinds in rear doors).
