Remove/install front seat - AR91.10-P-1000SX
MODEL 221.0/ 1
Shown on right front seat (1)
MODIFICATION NOTES
| 13.5.09 | Value modified: Seat bolt to vehicle floor | *BA91.10-P-1002-01O |
| Removing | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags or emergency tensioning retractor units | AH91.00-P-0002-01M | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Assessment of airbag and emergency tensioning retractor units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| 1 | Remove door sill molding from left and right front door | Model 221.0 and model 221.1 without code (Z07) Top protection. | AR68.30-P-4100SX |
| Model 221.1 with code (Z07) Top protection. | AR68.30-P-4100SXS | ||
| 2 | Move front seat (1) backwards and upwards | ||
| 3 | Move backrest into vertical position | ||

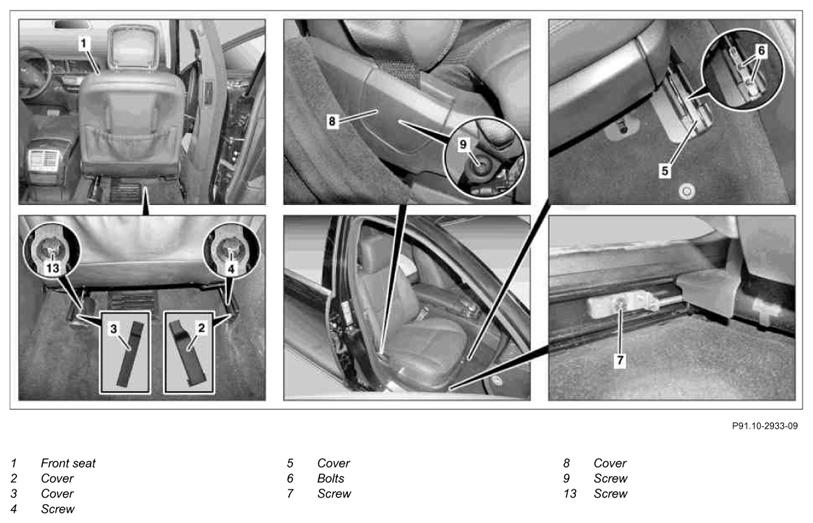

| 4 | Pull cover (5) forwards and out | ||
| 5 | Unscrew bolts (6, 7) | ||
| 6 | Move front seat (1) forwards | ||
| 7 | Detach cover (8) from front seat (1) | Fig 3 | |
| 8 | Disconnect electrical connector from belt tensioner sensor | At front passenger seat of vehicles with code (494) USA version. |
|
| 9 | Remove the screw (9) and remove belt end fitting | ||
| 10 | Push cover (2) backwards and remove | ||
| 11 | Pull cover (3) upwards and unclip | Fig 3 | |
| 12 | Remove bolts (4, 13) | ||
| 13 | Disconnect battery ground line | AR54.10-P-0003SX | |
| 14 | Fold back front seat (1) | ||

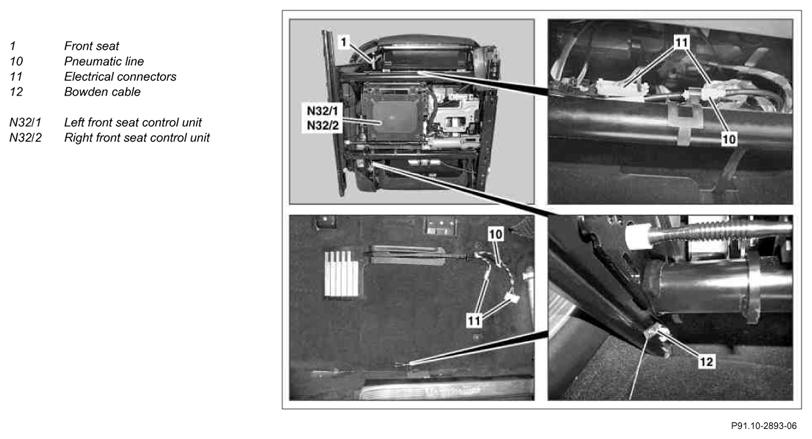

| 15 | Disconnect electrical connectors (11) from left front seat control unit (N32/1) or right front seat control unit (N32/2) | ||
| 16 | Disconnect pneumatic line (10) at plug | ||
| 17 | Remove Bowden cable (12) for belt height adjuster | ||
| 18 | Carefully remove front seat (1) from vehicle | ||
| Install | |||
| 19 | Carefully place front seat (1) in the vehicle and fold back | ||
| 20 | Install Bowden cable (12) for belt height adjuster | ||
| 21 | Connect pneumatic line (10) at plug | ||
| 22 | Connect electrical connectors (11) to left front seat control unit (N32/1) or right front seat control unit (N32/2) | ||
| 23 | Connect ground cable to battery | AR54.10-P-0003SX | |
| 24 | Tighten screw (4) | ||
| *BA91.10-P-1002-01O | |||
| 25 | Insert cover (2) and push forwards | ||
| 26 | Insert bolt (13) and turn in slightly | ||
| 27 | Move front seat (1) to rear | ||
| 28 | Tighten bolt (7) | *BA91.10-P-1002-01O | |
| 29 | Tighten bolts (6) | *BA91.10-P-1002-01O | |
| 30 | Clip in cover (5) | ||
| 31 | Move front seat (1) forwards | ||
| 32 | Tighten bolt (13) | *BA91.10-P-1002-01O | |
| 33 | Clip in cover (3) | ||
| 34 | Position belt end fitting and tighten bolt (9) | *BA91.40-P-1001-01O | |
| 35 | Connect electrical connector to belt tensioner sensor | At front passenger seat of vehicles with code (494) USA version. | |
| 36 | Clip cover (8) onto front seat (1) | ||
| 37 | Install door sill molding | Model 221.0 and model 221.1 without code (Z07) Top protection | AR68.30-P-4100SX |
| Model 221.1 with code (Z07) Top protection | AR68.30-P-4100SXS | ||
| 38 | Parameterize weight sensing system (WSS) with STAR DIAGNOSIS | After installing the front passenger seat on vehicles with code (494) USA version. |
|
| Fig 4 | |||
| STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
FRONT SEATS
| Number | Designation | Model 221 | |
|---|---|---|---|
| BA91.10-P-1002-01O | Seat bolt to vehicle floor | Nm | 53 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 221 | |
|---|---|---|---|
| BA91.40-P-1001-01O | Screw on belt end fitting | Nm | 32 |
