Steering column adjustment switch, component description - GF46.15-P-5010SX
MODEL 221.0 /1 up to Model Year 8

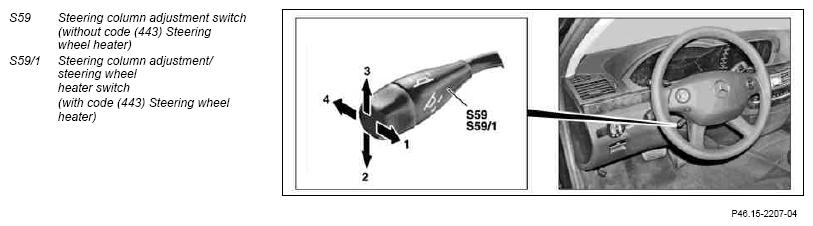

Location
The steering column adjustment switch is located under the combination switch (S4) on the steering column module (N80).
Task
To pass the driver's requests to move the
- Move out steering column (1)
- Steering column down (2)
- Steering column up (3)
- Move in steering column (4)
pass on via the steering column module.
In addition with code (443) Steering wheel heater:
The steering wheel heater switch integrated in the steering column adjustment switch activates or deactivates the S59/1s2 steering wheel heater. The respective status is displayed by the steering wheel heater function indicator lamp (S59/1e1)
