Remove/install injection system control unit - AR07.08-P-7008SX
ENGINE 272.946 /965 /974 /975 in MODEL 221
ENGINE 273.922 /924 /961 /968 in MODEL 221
ENGINE 273.961 /968 in MODEL 216
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Read out version coding of the ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10) |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Switch off ignition | ||

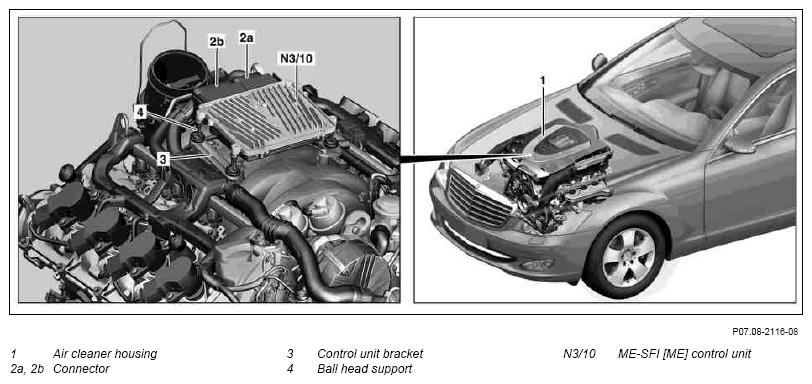

| 3 | Remove air filter housing (1). | AR09.10-P-1150SX | |
| 4 | Detach plugs (2a, 2b) and unplug from ME-SFI [ME] control unit (N3/10) | ||
| 5 | Pull out ME-SFI [ME] control unit (N3/10) upwards out of the control unit holders (3) | ||
| 6 | Detach ball-type support braces (4) from ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10) | |
| *BA07.08-P-1001-01A | |||
| 7 | Remove control unit brackets (3) as required from resonance intake manifold | *BA07.08-P-1002-01A | |
| 8 | Install in the reverse order | ||
| 9 | Perform sensor rotor adaptation using STAR DIAGNOSIS | When replacing ME-SFI [ME] control unit (N3/10)
|
|
| 10 | Release transport protection on ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10) | |
| 11 | Personalize and activate ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10) | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 12 | Carry out engine test run |
CONTROL UNIT
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA07.08-P-1001-01A | Ball head support on control unit | Nm | 4 | 4 |
| BA07.08-P-1002-01A | Bolt, control unit bracket to resonance intake manifold | Nm | 8 | 8 |
