Remove/install restraint systems control unit - AR91.60-P-0624SX
MODEL 216.3, 221.0 /1

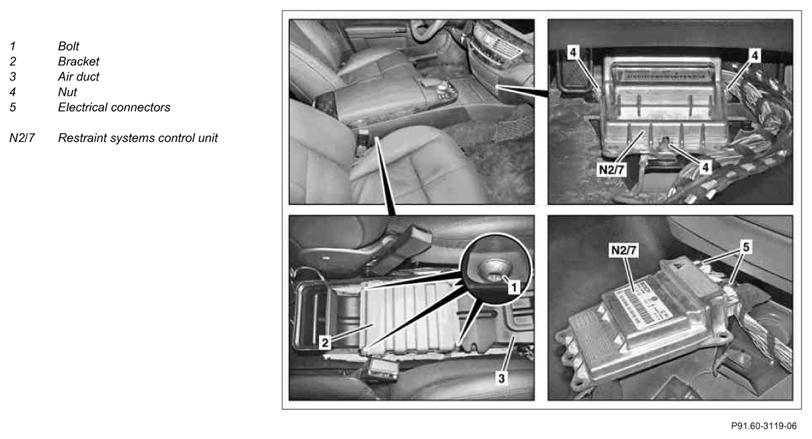

Illustrated on model 221
| Remove/install | |||
| Risk of injury when performing testing or repair work on airbag or emergency tensioning retractor units. Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | ||
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01M | ||
| Assessment of airbag and seat belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| 1.1 | Remove center console | Model 221 | AR68.20-P-2000SX |
| 1.2 | Remove COMAND controller unit | Model 216 | AR82.85-P-1100SC |
| 2 | Disconnect ground line at starter battery and at on-board electrical system battery | AR54.10-P-0003SX | |
| 3.1 | Unscrew bolts (1) and remove bracket (2) | Model 221 without code (582) Rear air conditioner | |
| 4.1 | Detach air duct (3) from AC housing and remove from vehicle | Model 221 without code (582) Rear air conditioner | |
| 5 | Expose electrical wiring harness on right next to restraint systems control unit (N2/7) | ||
| 6 | Remove nuts (4) and lift restraint systems control unit (N2/7) until electrical connectors (5) are accessible. Disconnect electrical connectors (5) and remove restraint systems control unit (N2/7) | ||
| *BA91.60-P-1012-01L | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 7 | Install in the reverse order | ||
| 8.1 | Test supplemental restraint system (SRS) with STAR DIAGNOSIS, parameterize and program restraint systems control unit (N2/7) | After installing new restraint systems control unit (N2/7). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A |
AIRBAG
| Number | Designation | Model 216 | Model 221 | |
|---|---|---|---|---|
| BA91.60-P-1012-01L | Nut of restraint systems control unit to vehicle floor | Nm | 8 | 8 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
