Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

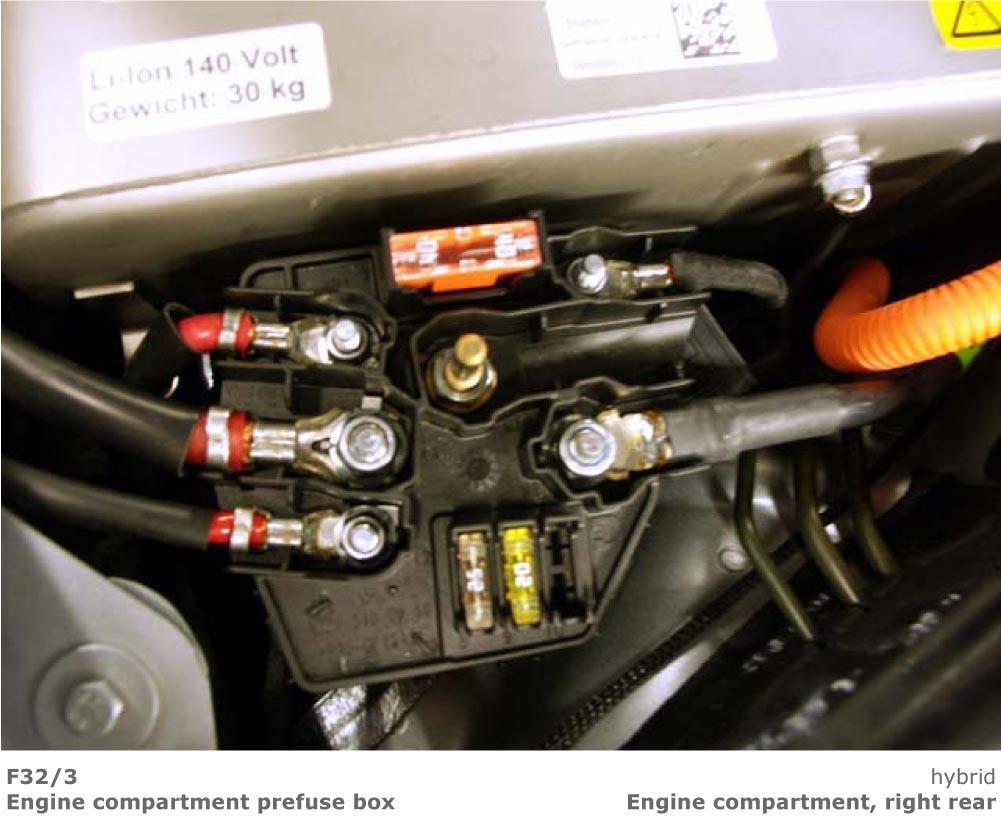

Engine Compartment Prefuse Box (2009-10) Right rear engine compartment. See Figure.

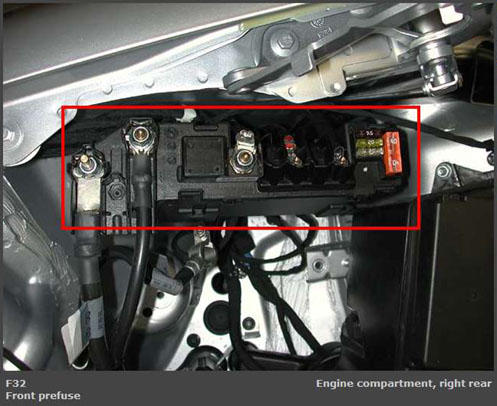

Front Prefuse (2007-08) Right rear of engine compartment. See Figure.
Front SAM Control Module With Fuse & Relay Module Left rear engine compartment. See Figure.

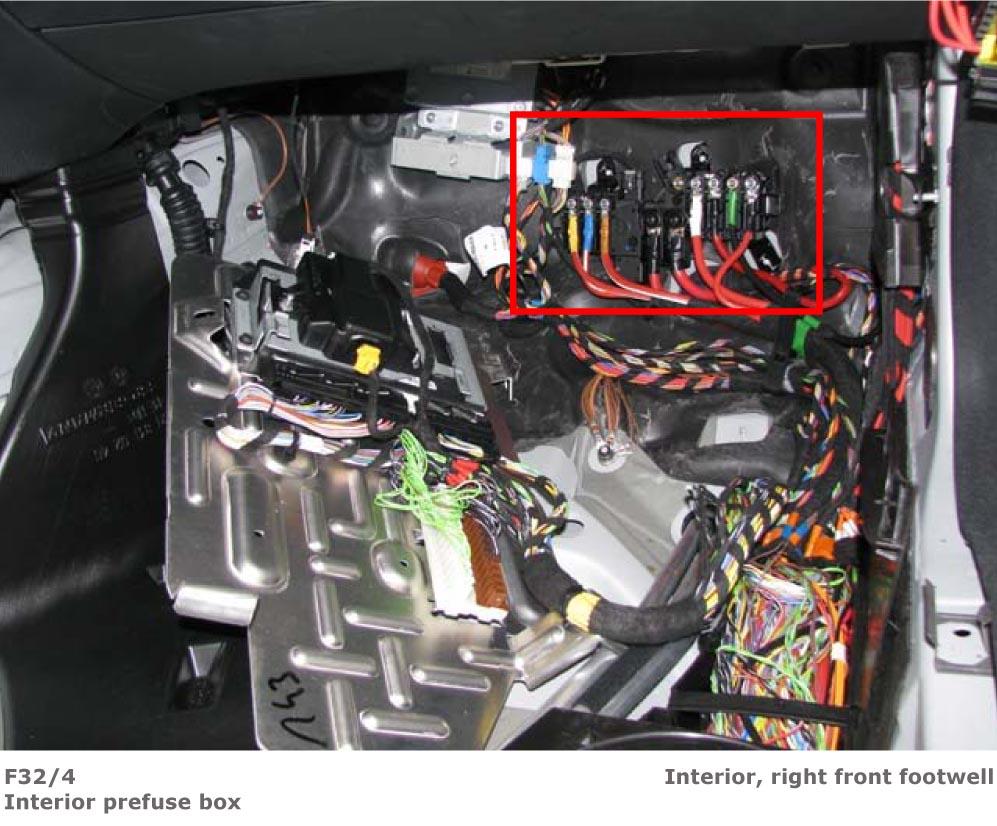

Interior Prefuse Box (2009-10) Right front footwell. See Figure.

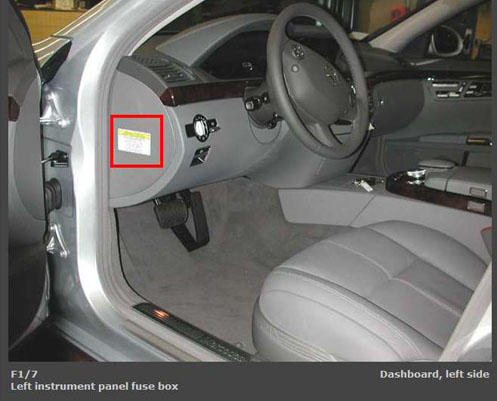

Left Instrument Panel Fuse Box Under left side dash cover. See Figure.
Rear SAM Control Module With Fuse & Relay Module Center trunk. See Figure

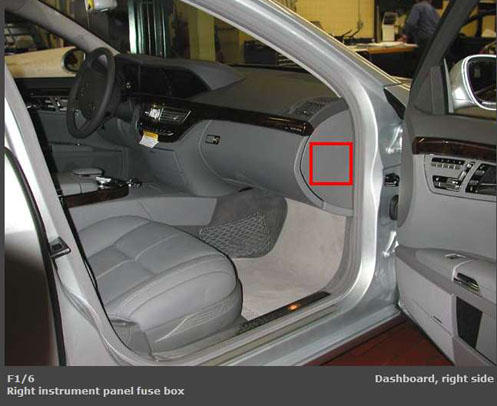

Right Instrument Panel Fuse Box Under right side dash cover. See Figure.
