Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

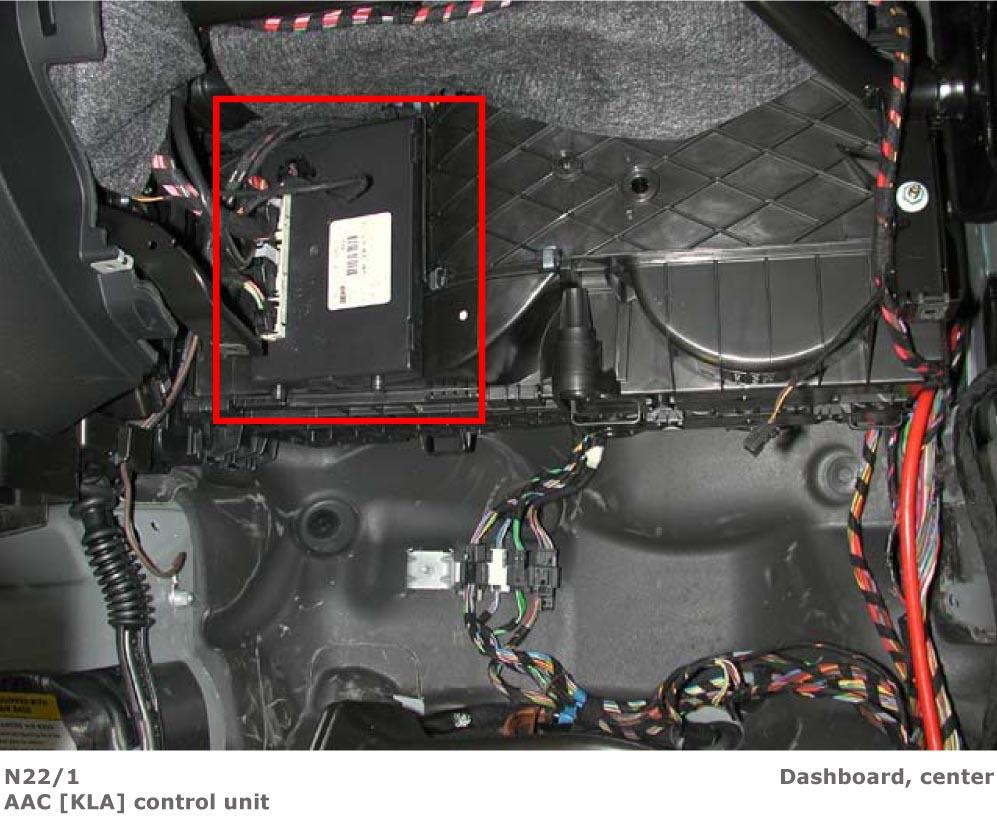

| AAC (KLA) Control Unit (N22/1) | Center dash. See Figure. |

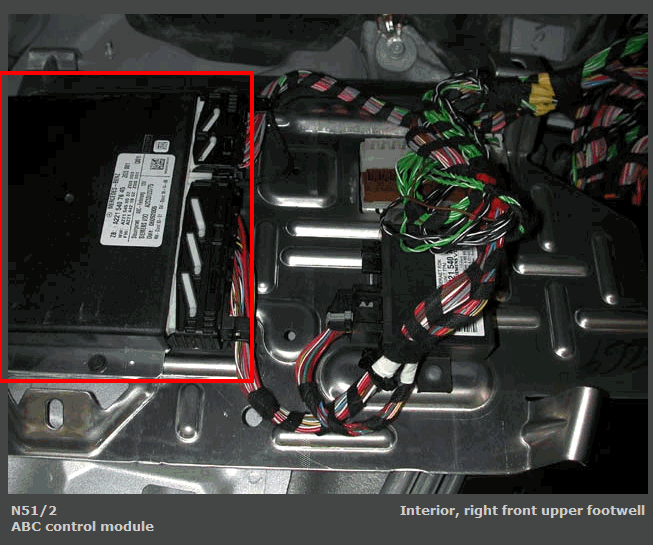

| ABC Control Module (N51/2) | Right front upper footwell. See Figure. |

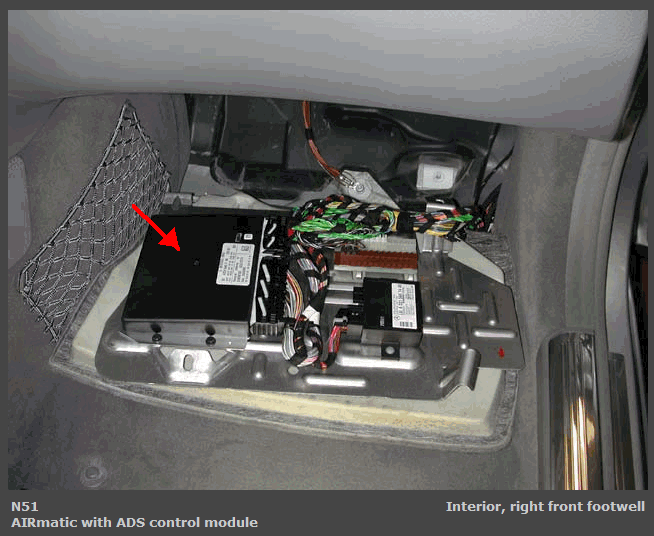

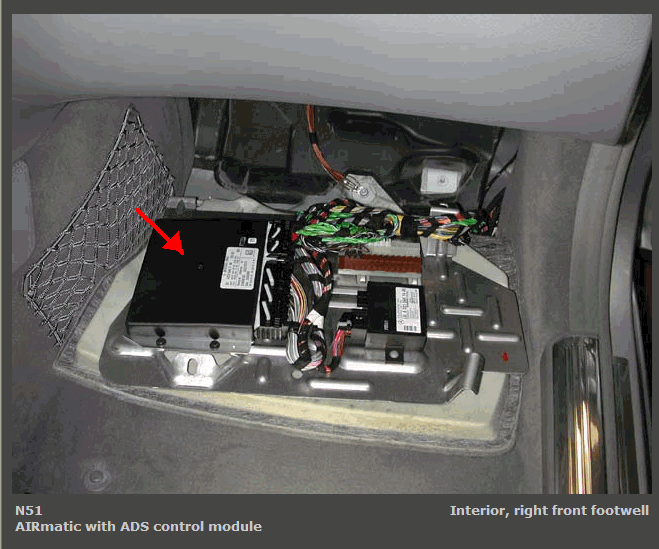

| AIRmatic W/ADS Control Module (N51) | Right Front Footwell. SeeFigure. |

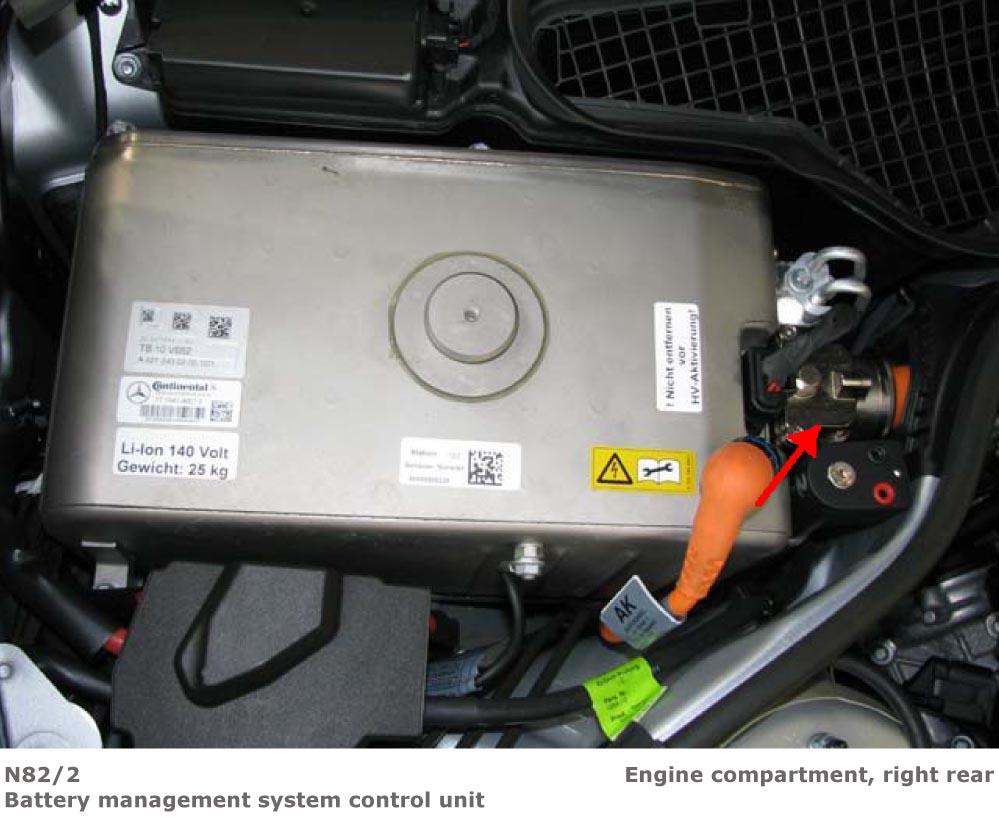

| Battery Management System Control Unit (N82/2) | Right rear engine compartment. See Figure. |

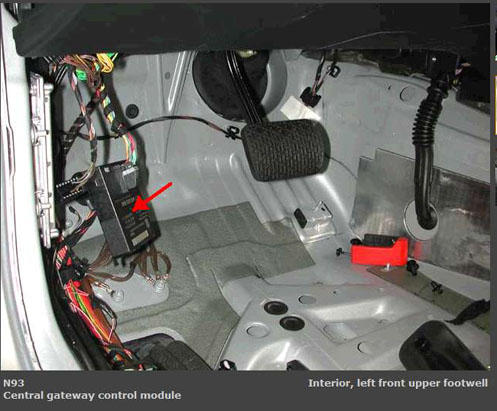

| Central Gateway Control Module (N93) | Left front upper footwell. See Figure. |

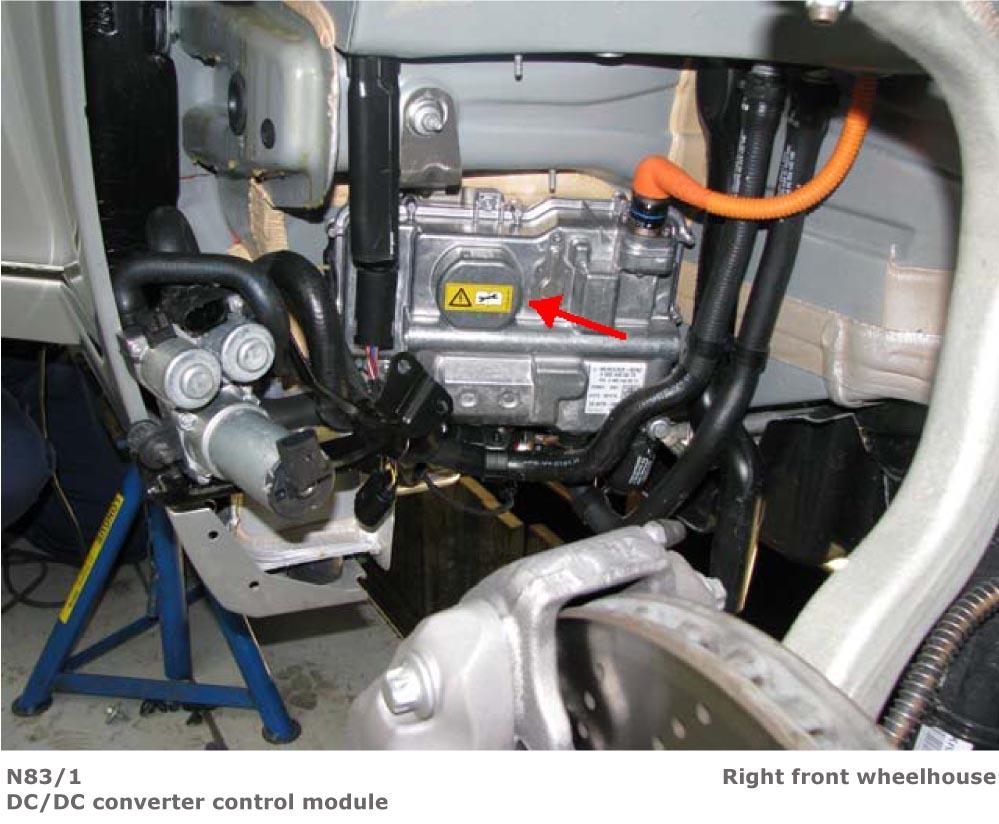

| DC/DC Converter Control Module (N83/1) | Right front wheelhouse. See Figure. |
| Door Control Module (N69/1) |

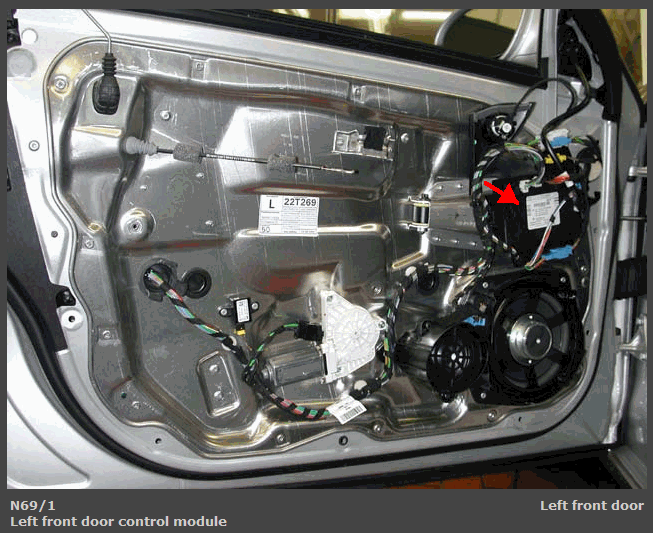

Left front door. See Figure |

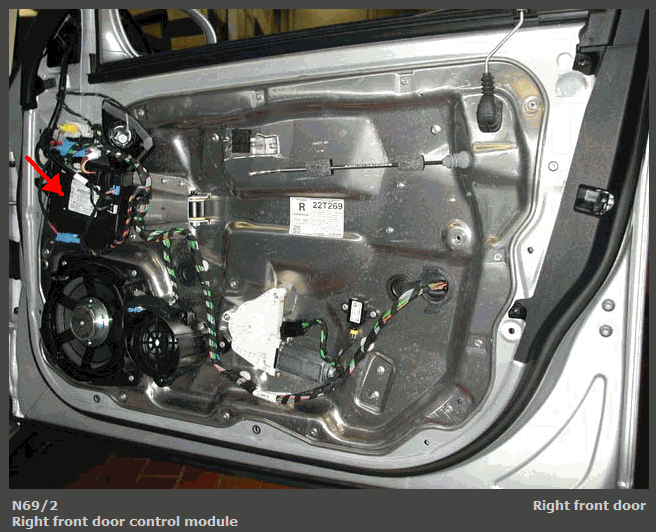

| Door Control Module (N69/2) | Right front door. See Figure |

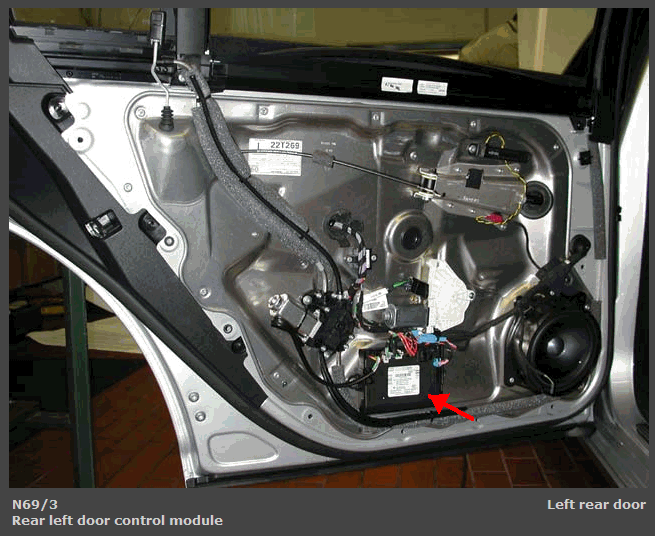

| Door Control Module (N69/3) | Left rear door. See Figure |

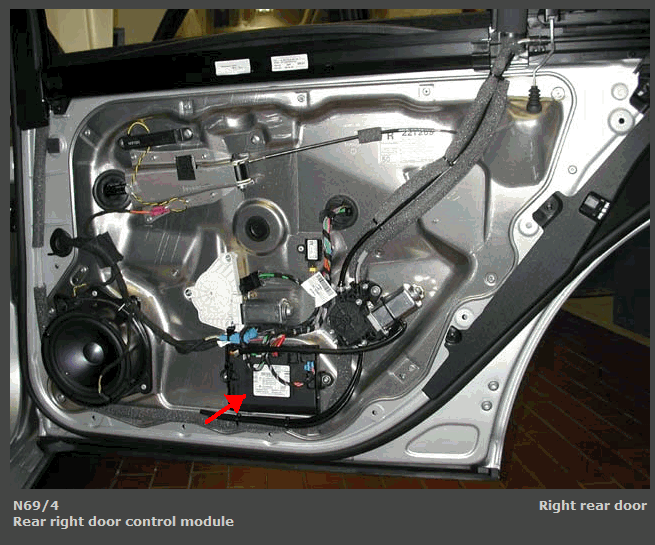

| Door Control Module (N69/4) | Right rear door. See Figure |

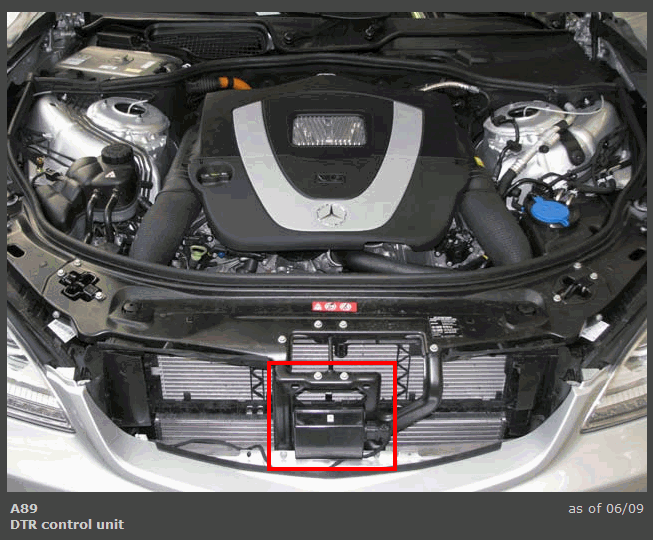

| DTR Control Unit (A89) | Engine compartment, front grill See Figure |

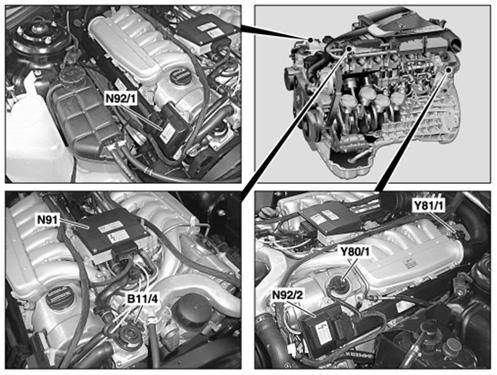

| ECI Ignition Module (Left Bank) (N92/2) | Top front of left cylinder bank. See Figure. |
| ECI Ignition Module (Right Bank) (N92/1) | Top front of right cylinder bank. See Figure. |
| ECI Ignition System Mains Unit (N91) | Top center of engine. See Figure. |

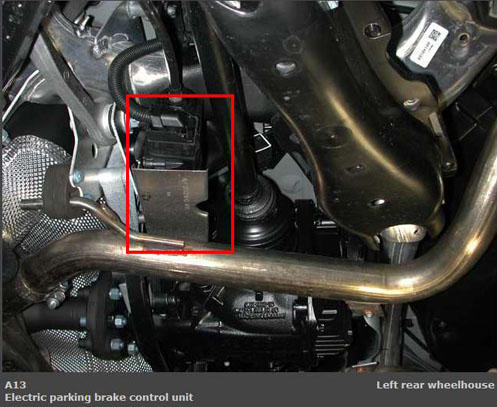

| Electric Parking Brake Control Unit (A13) | Left rear wheelwell. See Figure. |

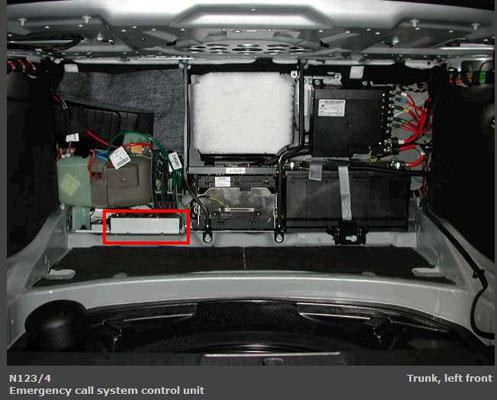

| Emergency Call System Control Unit (N123/4) | Left front of trunk. See Figure. |

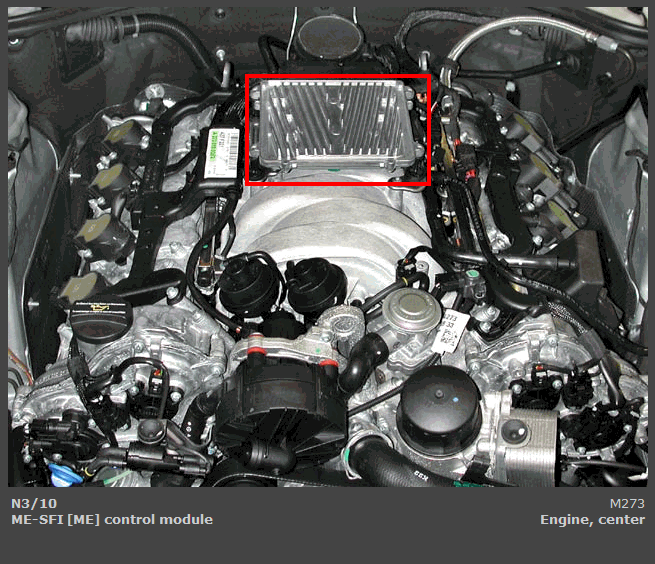

| Engine Control Module (ME-SFI) (N3/10) | Engine, center. see Figure |

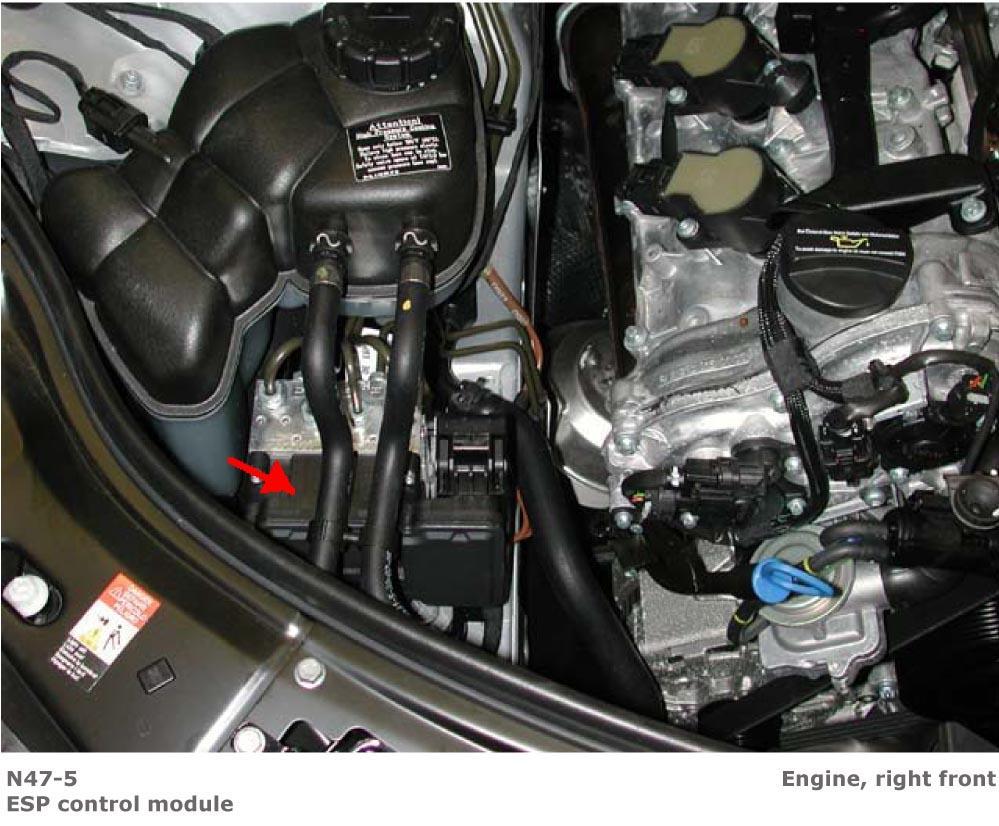

| ESP Control Module (N47/5) | Right front engine compartment. See Figure. |

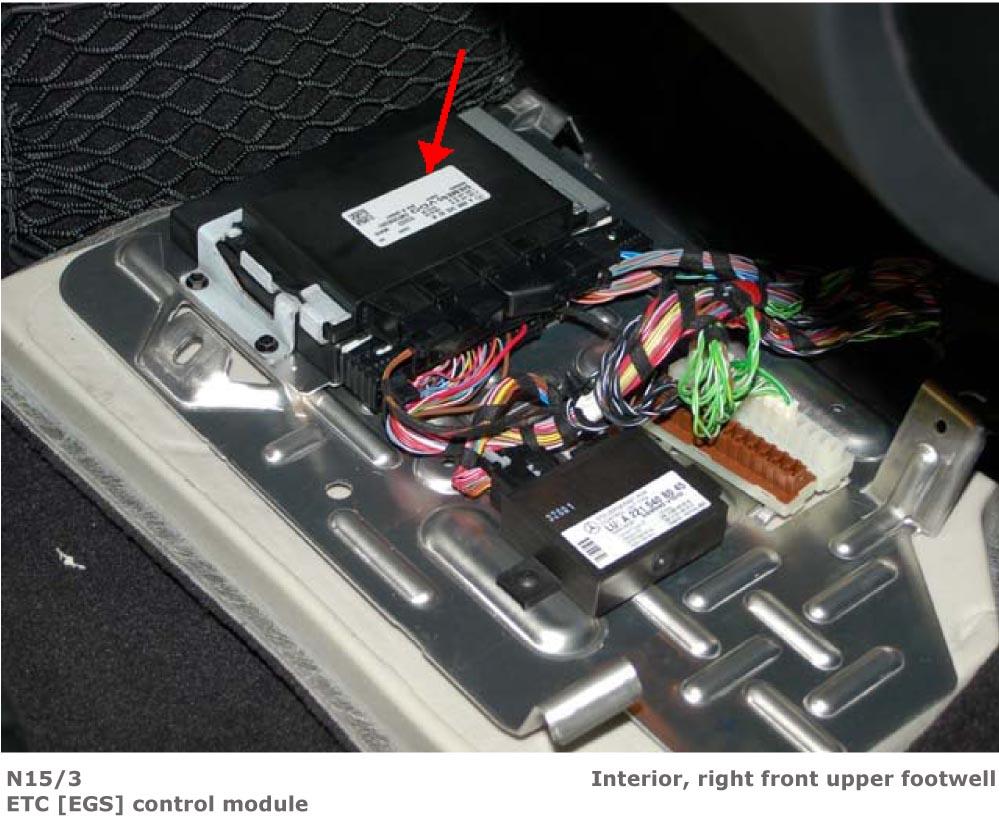

| ETC (EGS) Control Module (N15/3) | Right front footwell. See Figure. |

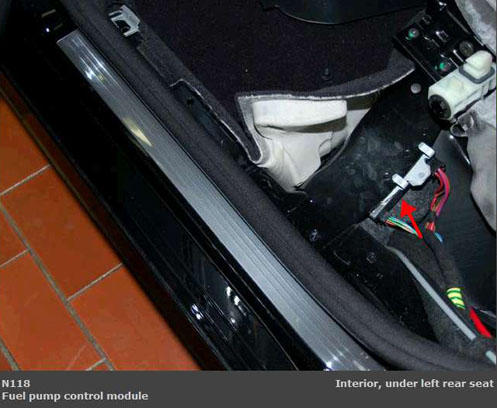

| Fuel Pump Control Module (N118) | Under left rear seat. See Figure. |

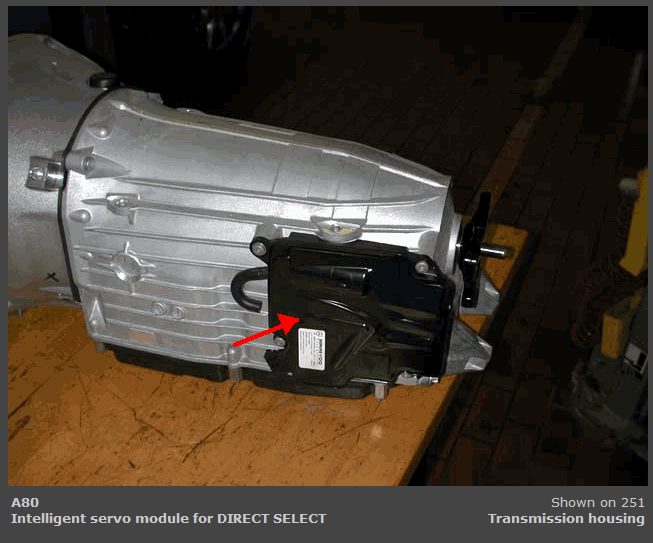

| Intelligent Servo Module For DIRECT SELECT (A80) | Transmission housing. seeFigure |

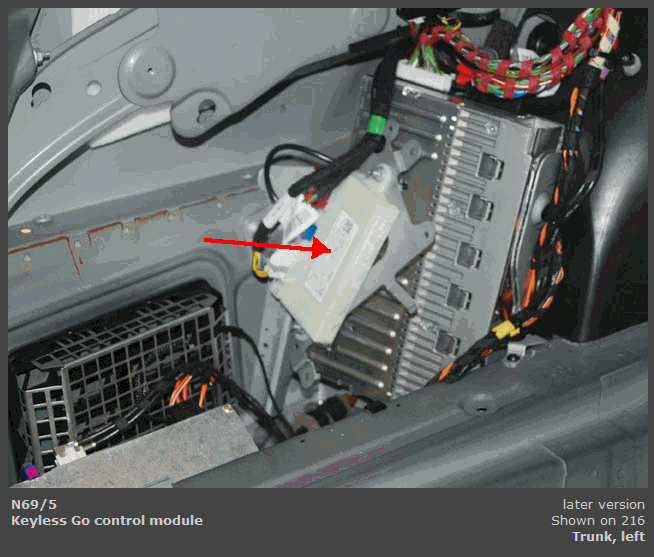

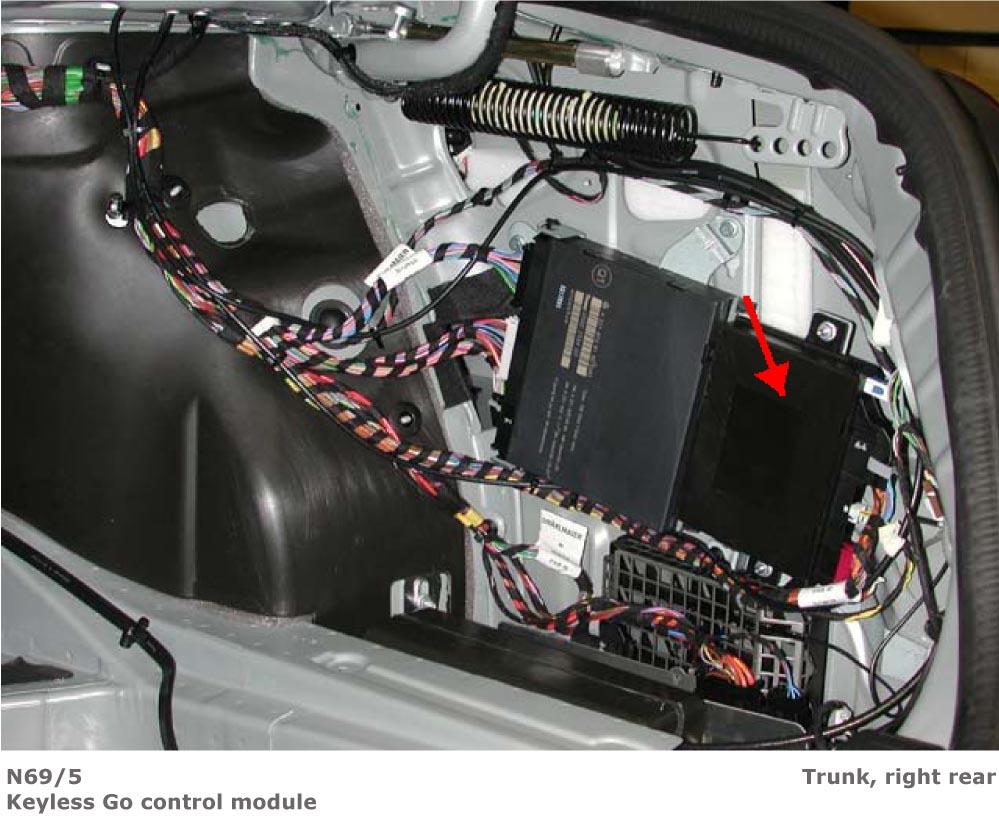

| Keyless Go Control Module (N69/5) | Right rear trunk. (early version). See Figure. |
| Left rear trunk. (later version) See Figure | |

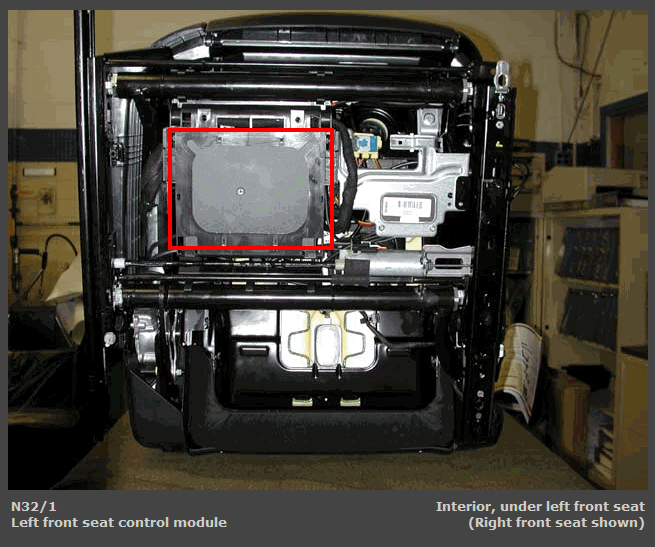

| Left Front Seat Control Module (N32/1) | Interior, under left front seat. See.Figure |
| Right Front Seat Control Module (N32/2) | Under right front seat. SeeFigure |

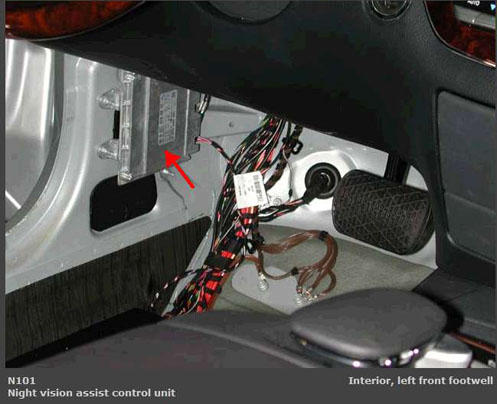

| Night Vision Assist Control Unit (N101) | Left front footwell. See Figure. |

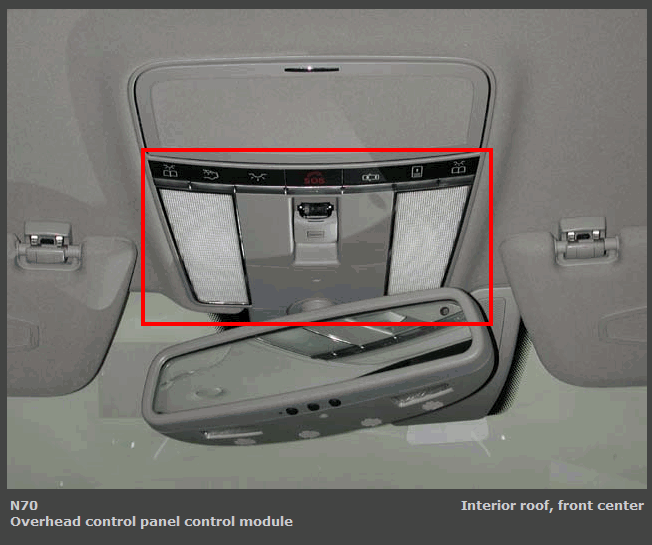

| Overhead Control Panel Control Module (N70) | Center front of roof. See.Figure |

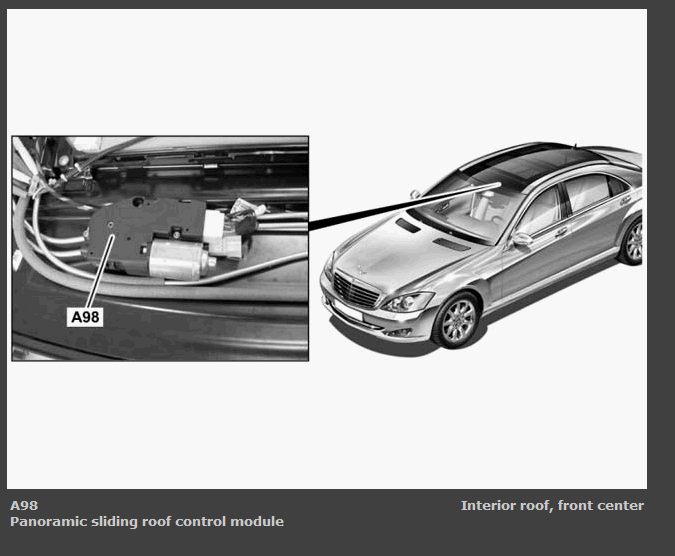

| Panoramic Sliding Roof Control Module (A98) | Interior roof, front center. see Figure |
| Pneumatic Suspension With ADS Control Module (N51) | Interior, right front footwell. seeFigure |

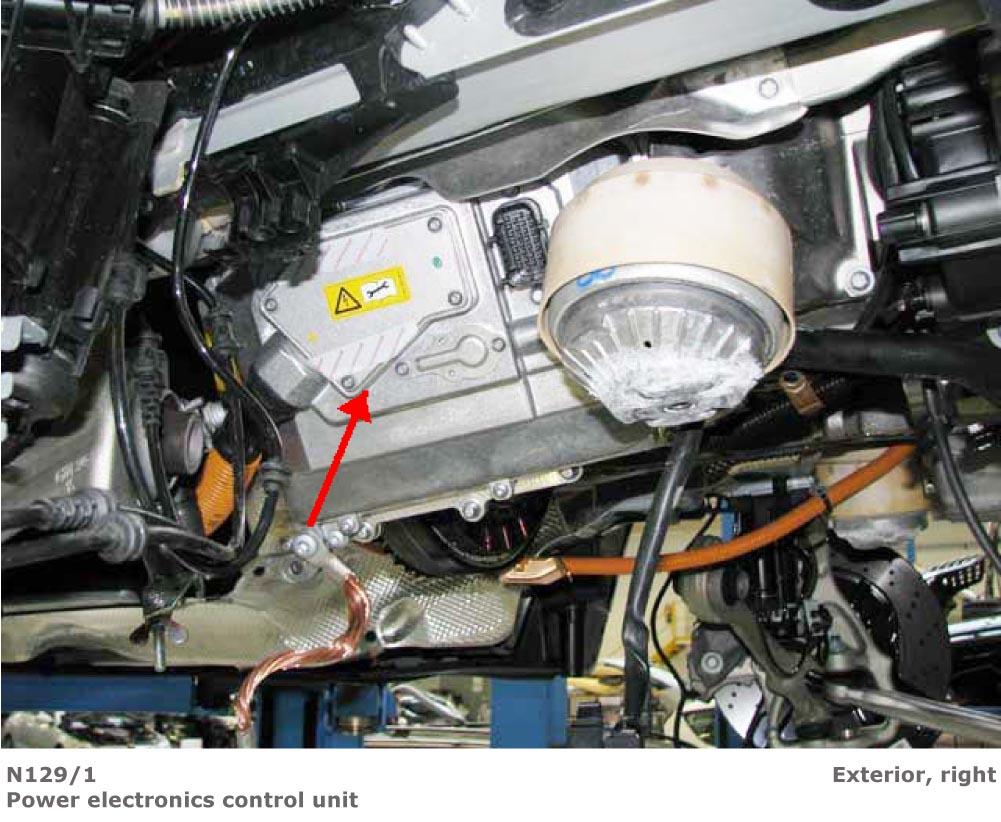

| Power Electronics Control Unit (N129/1) | Right side undercarriage. See Figure. |

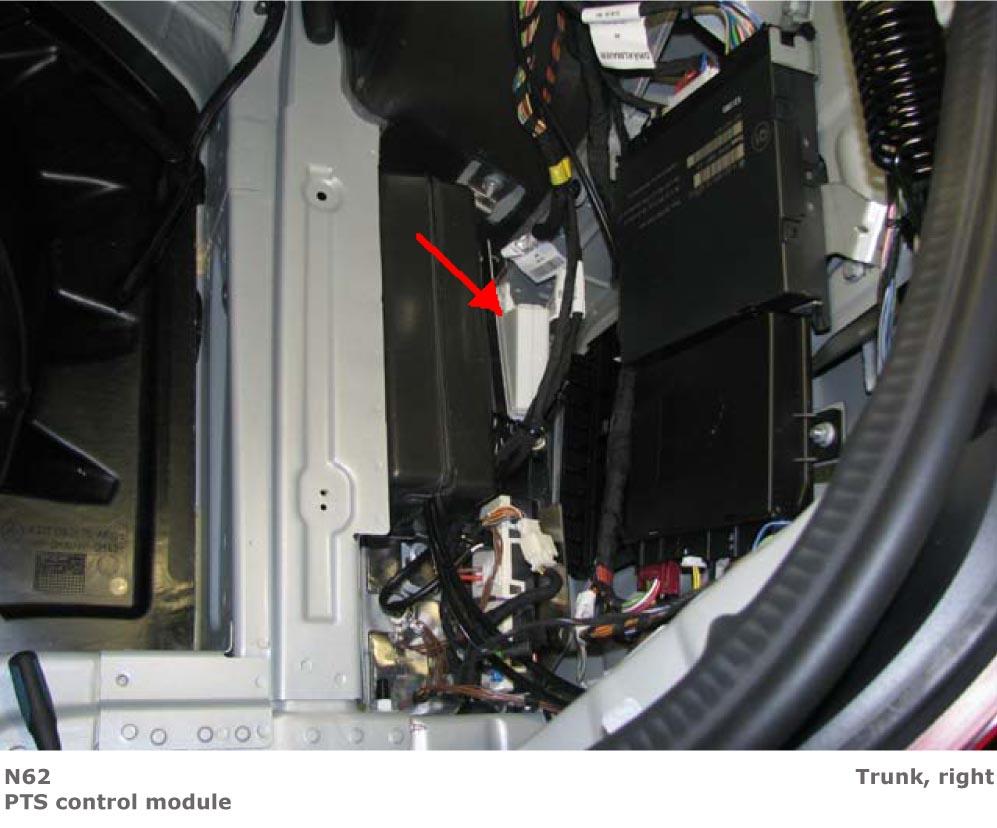

| PTS Control Module (N62) | Right side trunk. See Figure. |

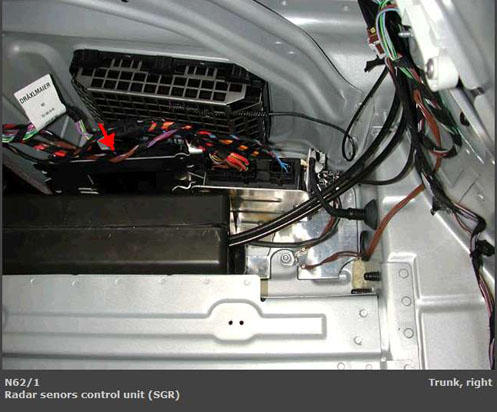

| Radar Sensor Control Unit (SGR) (N62/1) | Right side of trunk. See Figure. |

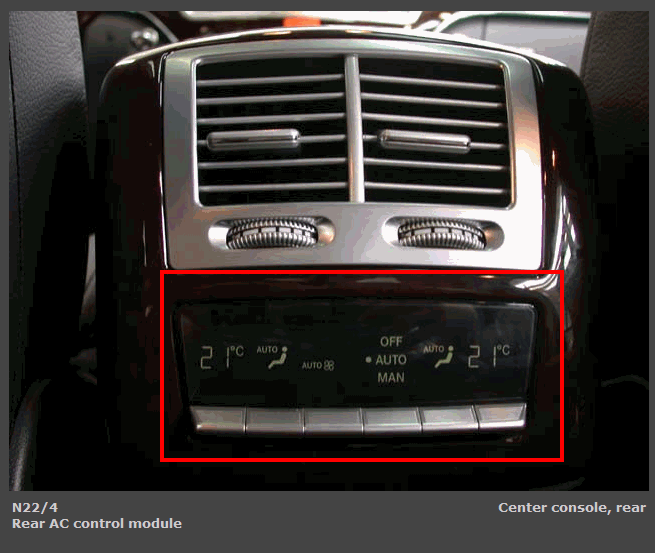

| Rear A/C Control Module (N22/4) | In rear of center console. SeeFigure |

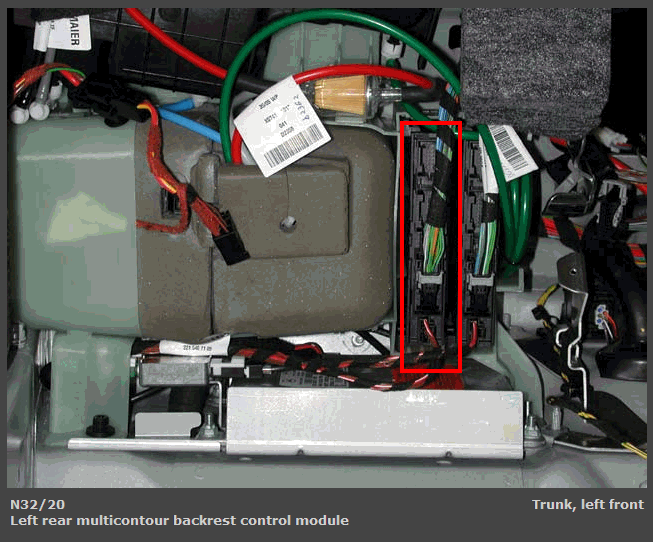

| Multi-Contour Backrest Control Module (N32/20) | (Left rear) Trunk, Left Front. see Figure |

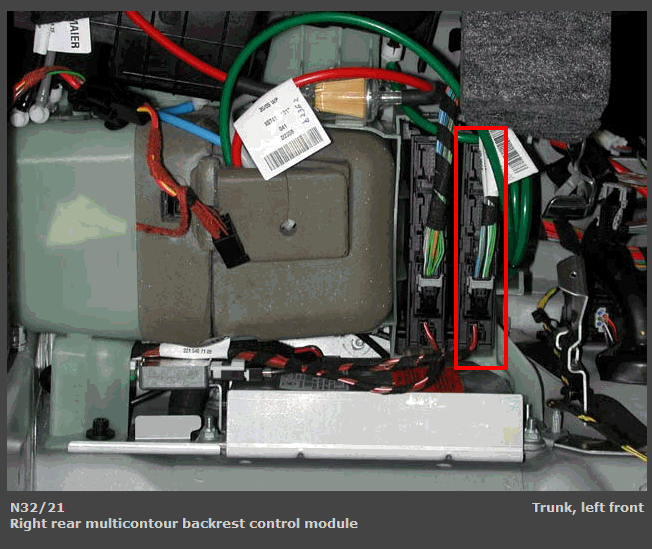

| Multi-Contour Backrest Control Module (N32/21) | (Right rear) Trunk, Left Front. see.Figure |

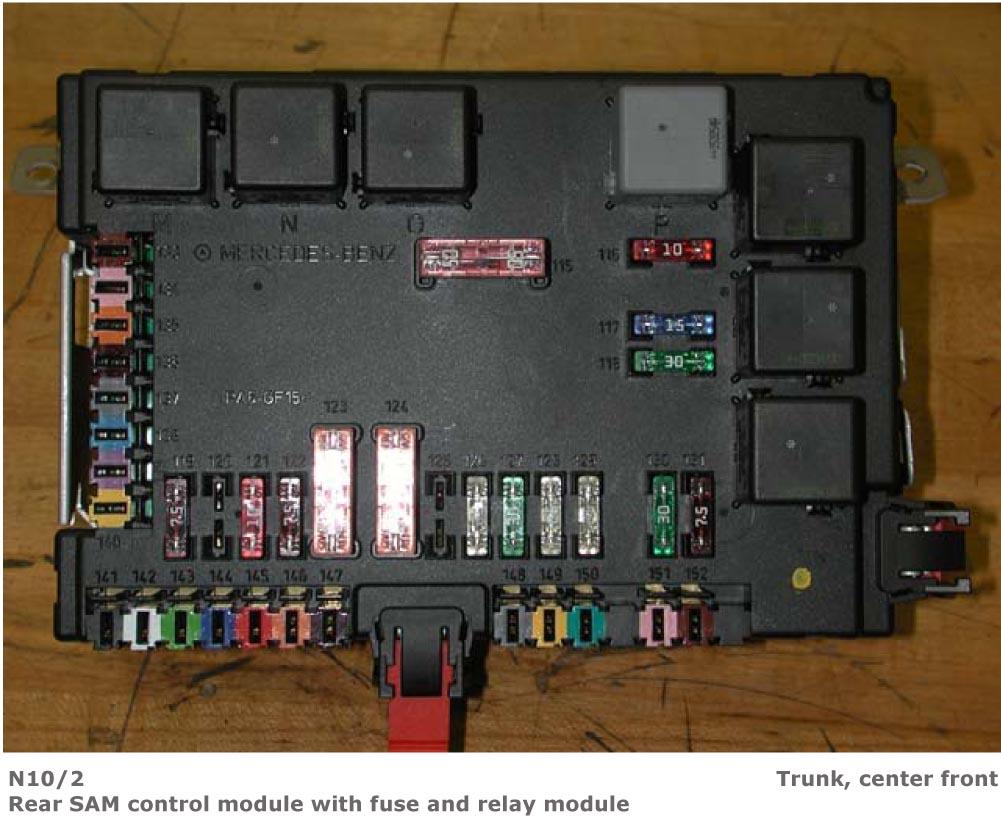

| Rear SAM Control Unit (N10/2) | Trunk, center front. See Figure. |

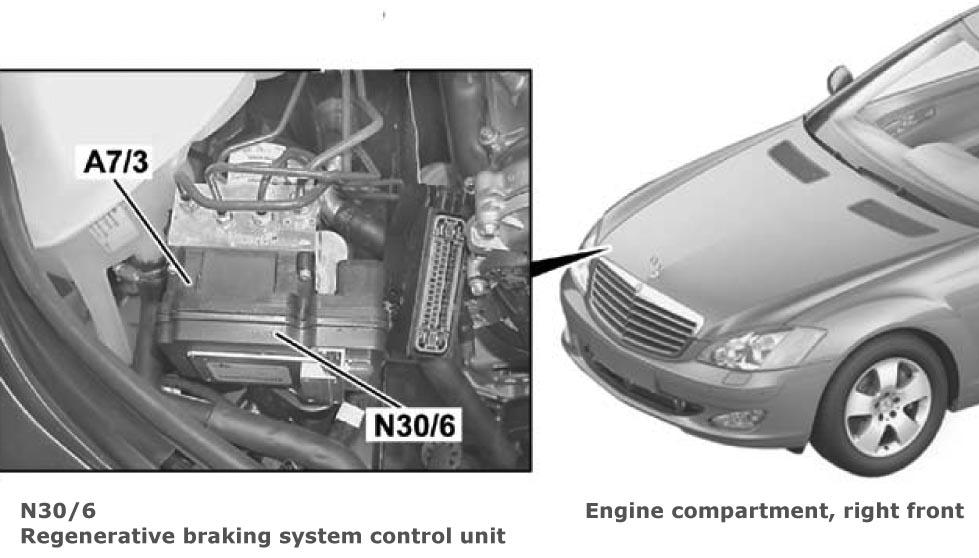

| Regenerative Braking System Control Unit (N30/6) | Right front engine compartment. See Figure. |

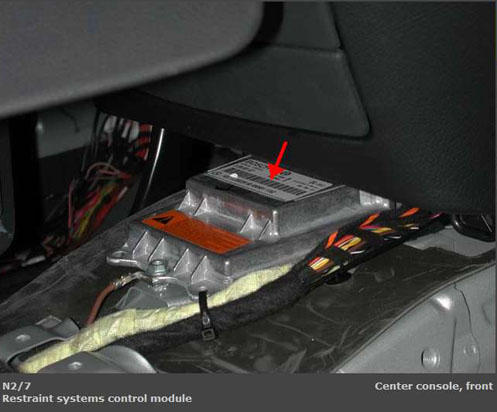

| Restraint Systems Control Module (N2/7) | Front of center console. See Figure. |

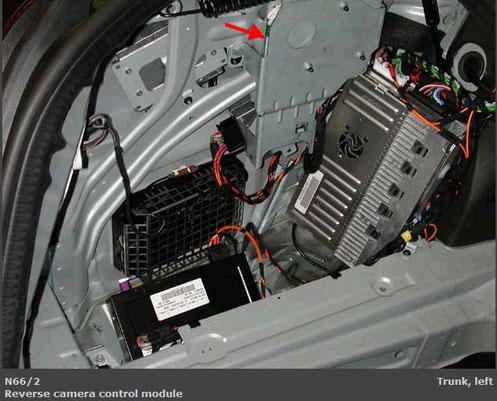

| Reverse Camera Control Module (N66/2) | Left side of trunk. See Figure. |

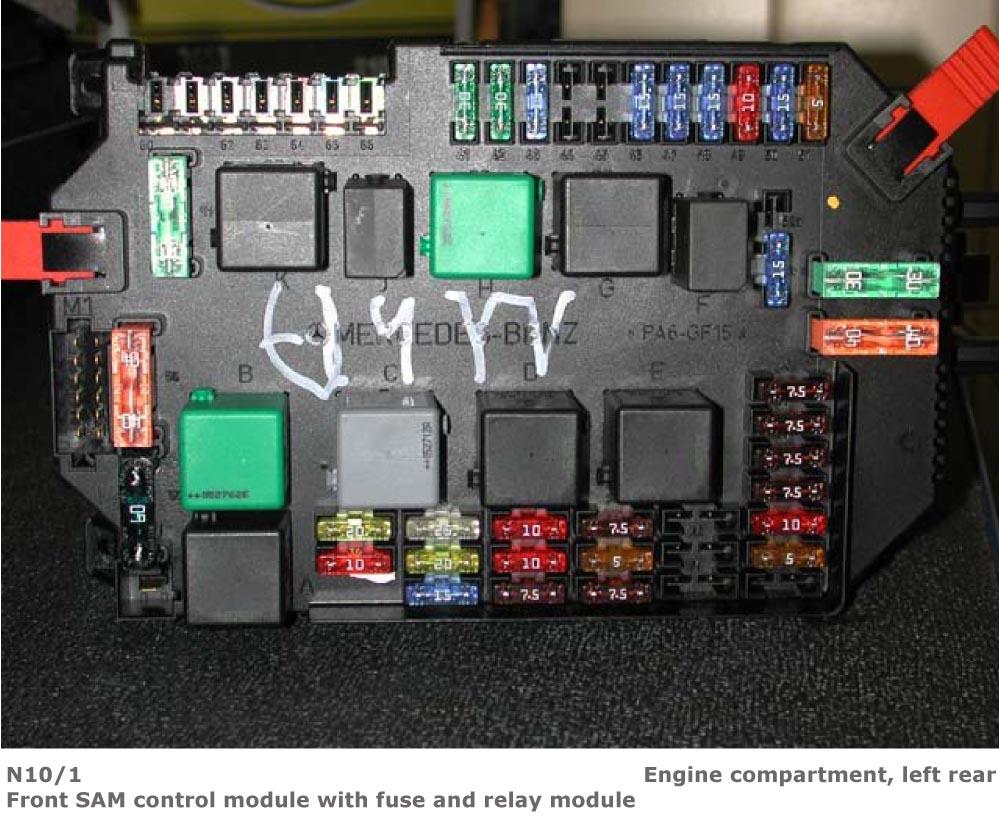

| Front SAM Control Module (N10/1) | Engine compartment, left rear. See. Figure |
| SDAR Control Unit (N87/5) | Left side of trunk. See Figure. |

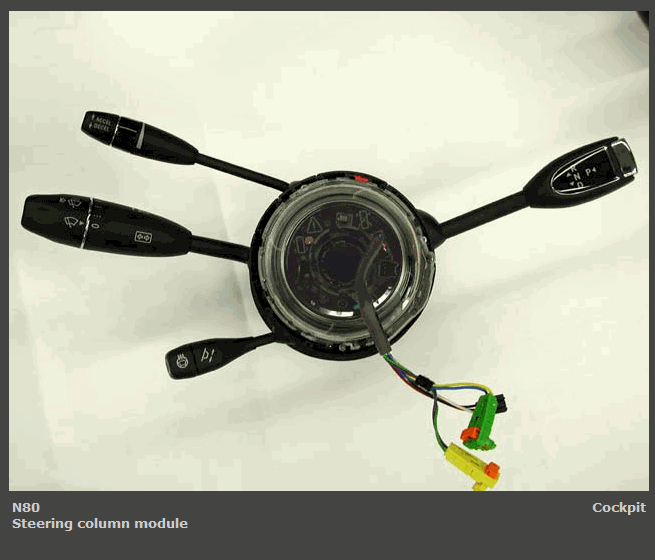

| Steering Column Module (N80) | Cockpit. See.Figure |

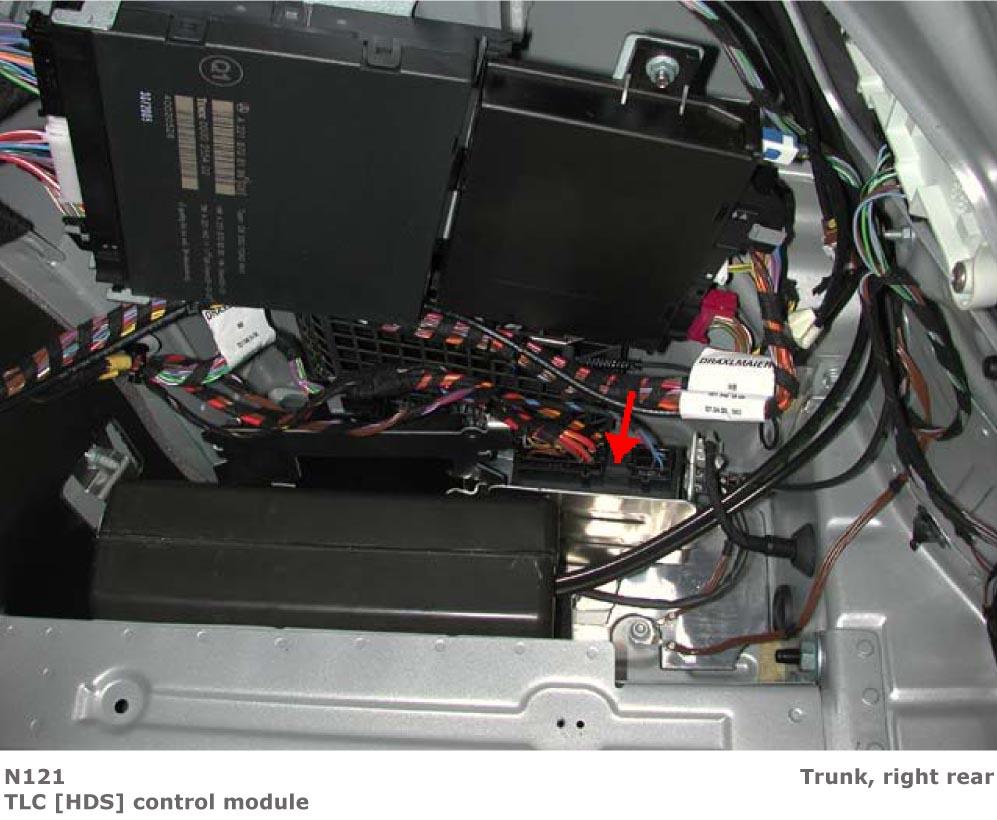

| TLC (HDS) Control Module (N121) | Right rear trunk. (Early version) See Figure. |

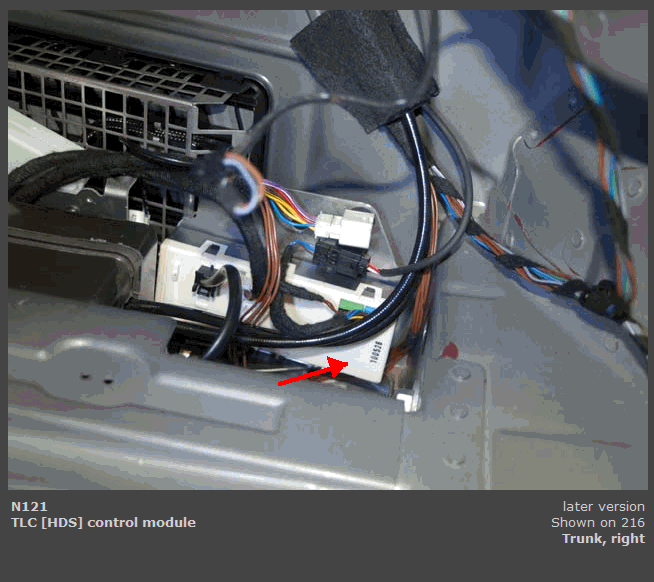

| Right rear trunk. (Later version) See Figure | |

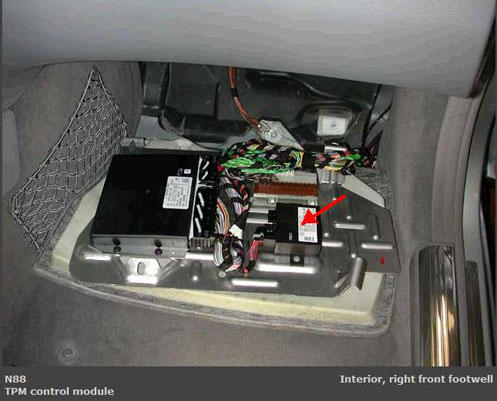

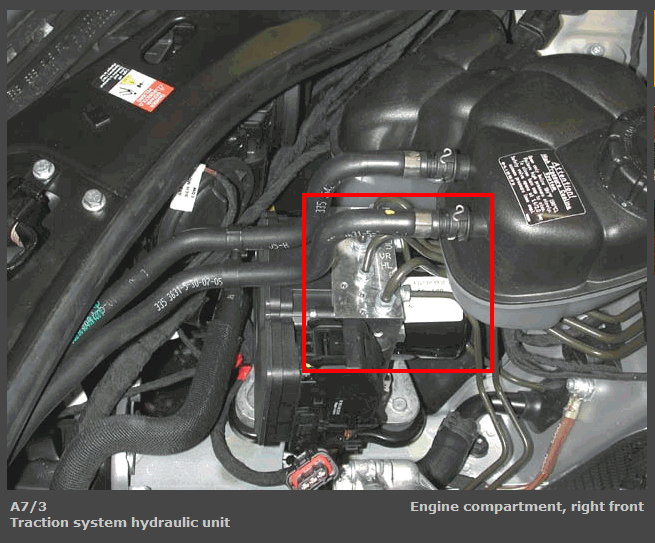

| TPM Control Module (N88) | Right front footwell. See Figure. |
| Traction System Hydraulic Unit (A7/3) | Left front of engine compartment. See Figure |

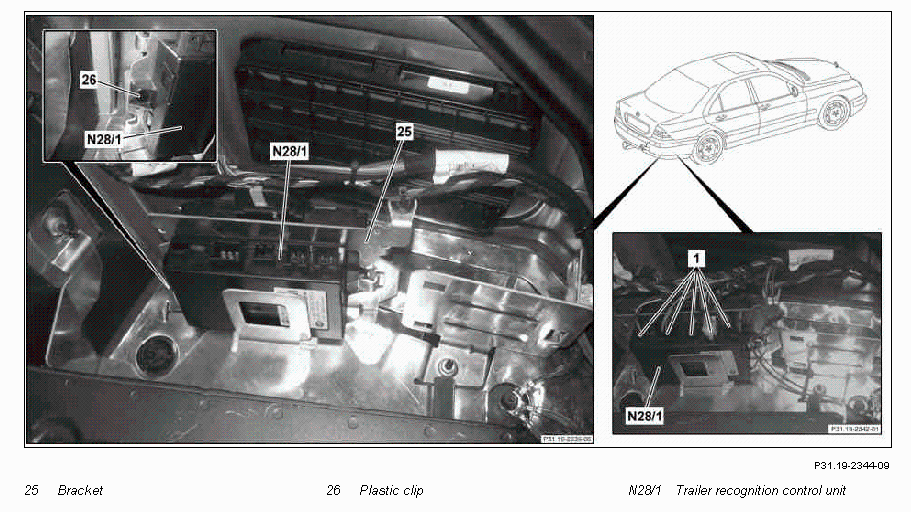

| Trailer Recognition Control Unit (N28/1) | Right rear of luggage compartment. See.Figure |

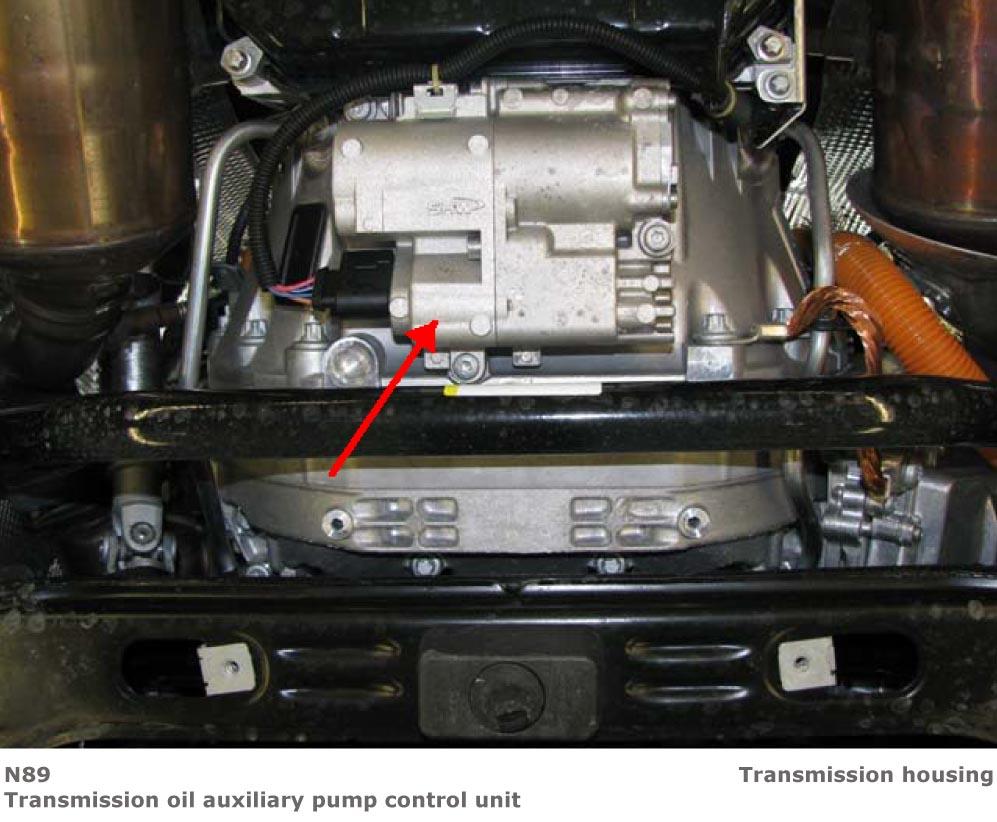

| Transmission Oil Auxiliary Pump Control Unit (N89) | Transmission housing. See Figure. |

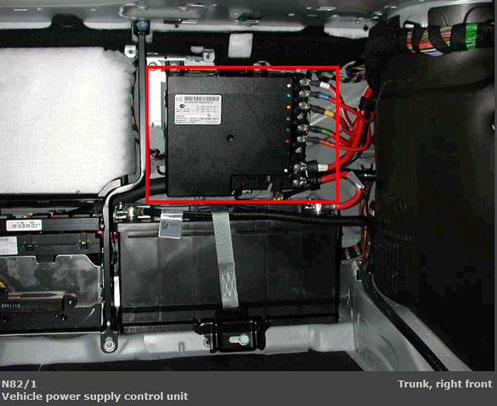

| Vehicle Power Supply Control Unit (N82/1) | Right front of trunk. See Figure. |

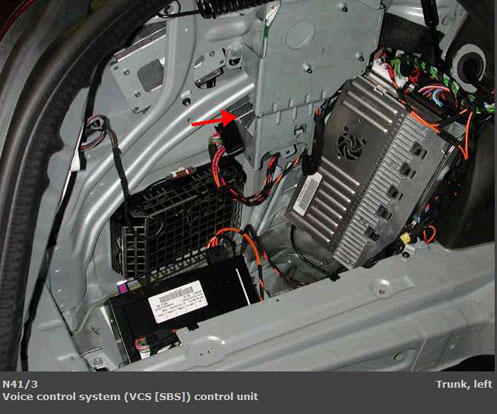

| Voice Control System (VCS [SBS]) Control Unit (N41/3) | Left side of trunk. See Figure. |

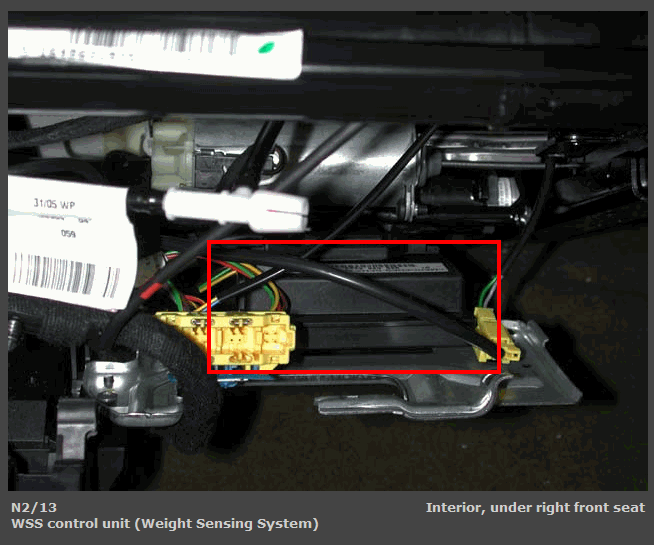

| WSS Control Unit (Weight Sensing System) (N2/13) | Interior, under right front seat. SeeFigure |
