Dynamic lumbar support on dynamic seat, function - GF91.25-P-2015SX
MODEL 216.3, 221.0 /1 with CODE (432) Left and right dynamic multicontour seat up to Model Year 8
Function requirements
- Terminal 15R ON or
- Circuit 15 ON

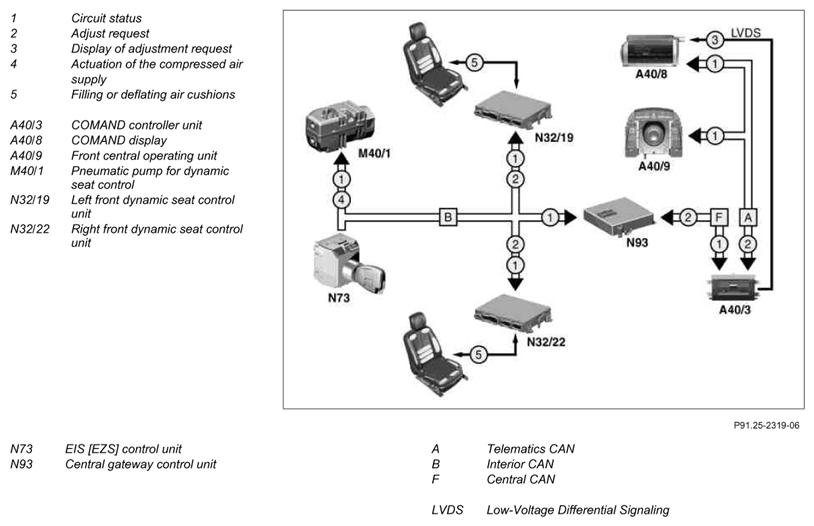

Function
In order to prevent tensions in the back during longer drives, the dynamic seats are equipped with the dynamic lumbar support (massage) function.
By pressing the multicontour seat quick select button (A40/9s4) in the front central operating unit, the "Pulse mode" submenu is activated in the COMAND display and the air cushions in the lumbar support area are alternately filled and deflated.
The massage function can be individually set using the turn/push control (A40/9s11):
- Slow and non-intense massage
- Slow and intense massage
- Fast and non-intense massage
- Fast and intense massage
| COMAND controller unit, component description | A40/3 Model 221 without code (498) Japan version and without code (494) USA version |
GF82.85-P-3136SX | |
| Model 221 with code (494) USA version | GF82.85-P-3136SXU | ||
| Model 221 with code (498) Japan version | GF82.85-P-3136SXJ | ||
| Cockpit central display, component description | A40/8 Model 221 |
GF54.30-P-6100SX | |
| Front central operating unit, component description | A40/9 Model 221 |
GF54.21-P-4500SX | |
| Pneumatic pump for dynamic seat, component description | M40/1 | GF91.25-P-5204SX | |
| Dynamic seat control unit, component description | N32/19, N32/22 | GF91.25-P-5202SX | |
| Electronic ignition/starter switch control unit (EIS) component description | N73 | GF80.57-P-6000SX | |
| Central gateway control unit, component description | N93 | GF54.21-P-4170SX |
