Remove/install sensor for sidebag/windowbag - AR91.60-P-0730SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

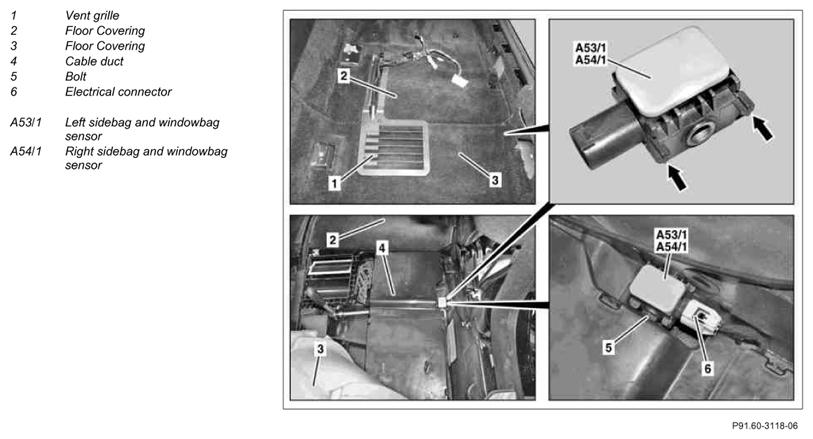

Fig 1: Identifying Sidebag/Windowbag Sensor Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

10.2.06

Remove front seat eliminated

Step 1

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Move left or right front seat forwards and upwards
2	Connect ground line to starter battery and to on-board electrical system battery		AR54.10-P-0003SX
3	Remove rear door sill molding		AR68.30-P-4100SX
4	Remove vent grille (1)
5	Loosen floor covering (3)	Extend floor covering (3) in B-pillar area
6	Remove cover from cable duct (4).
7	Lift cable duct (4) and remove bolt (5) on left sidebag and windowbag sensor (A53/1) or right sidebag and windowbag sensor (A54/1)		*BA91.60-P-1005-01L
8	Disconnect electrical connector (6) and remove left sidebag and windowbag sensor (A53/1) or right sidebag and windowbag sensor (A54/1)	Installation:  Insert the journals (arrows) of the left sidebag and windowbag sensor (A53/1) or right sidebag and windowbag sensor (A54/1) in the inner longitudinal member.
9	Install in the reverse order
10.1	Read fault memory, erase if necessary	After replacing the left sidebag and windowbag sensor (A53/1) or right sidebag and windowbag sensor (A54/1).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A

AIRBAG

Number	Designation		Model 221
BA91.60-P-1005-01L	Screw, sidebag and windowbag sensor to B-pillar	Nm	6
