Navigation processor, location/task/design/function - GF82.85-P-3103RM: Notes

MODEL 230.467 /474 /475 as of 1.6.04 with CODE (527) COMAND APS (with navigation)

MODEL 230.476 as of 1.6.04

MODEL 230.4 as of 1.7.04 with CODE (494) USA version

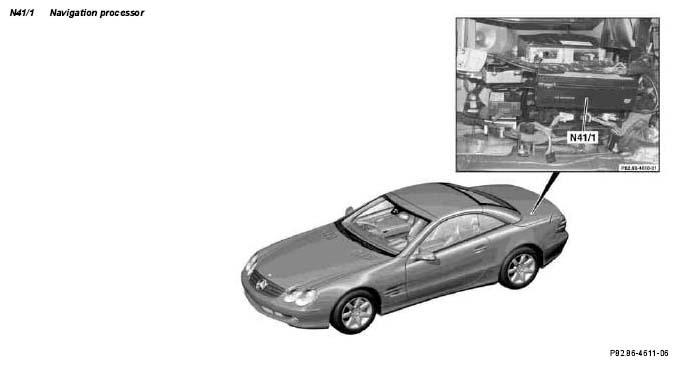

Fig 1: Identifying Navigation Processor Location
G05076293
  Navigation processor, location The navigation processor (N41/1) is installed in the luggage compartment on the left behind the side paneling.
  Navigation processor, task   GF82.85-P-3103-03RM
  Navigation processor, design
  • GPS computer
  • Yaw rate sensor (gyro sensor)
  • Central processor
  • DVD disk drive
  • Media Oriented System Transport (MOST) interface

  Navigation processor, function   GF82.85-P-3103-07RM
