Operating, display and control unit, location/task/design/function - GF82.85-P-3114RMU: Notes

MODEL 230.4 as of 1.7.04 with CODE (494) USA version

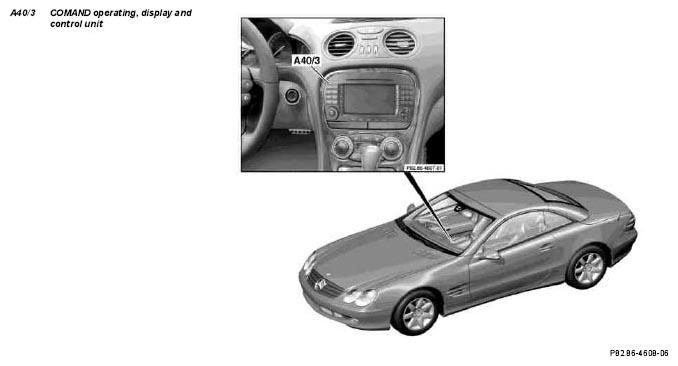

Fig 1: Identifying Comand Operating Display And Control Unit
G05076301
  Operating,display unit with control unit, location The COMAND operating, display and control unit (A40/3) is integrated into the center console.
  Operating, display and control unit, task   GF82.85-P-3130-02RMU
  Operating, display unit with control unit, design   GF82.85-P-3114-07RMU
  Operating, display unit with control unit, function   GF82.85-P-3114-08RMU
